Windsafe – 24V/48V Wind Turbine 1.5kW Generator

In stock
Regular price £656.00 inc. VAT
Rotor Configuration:

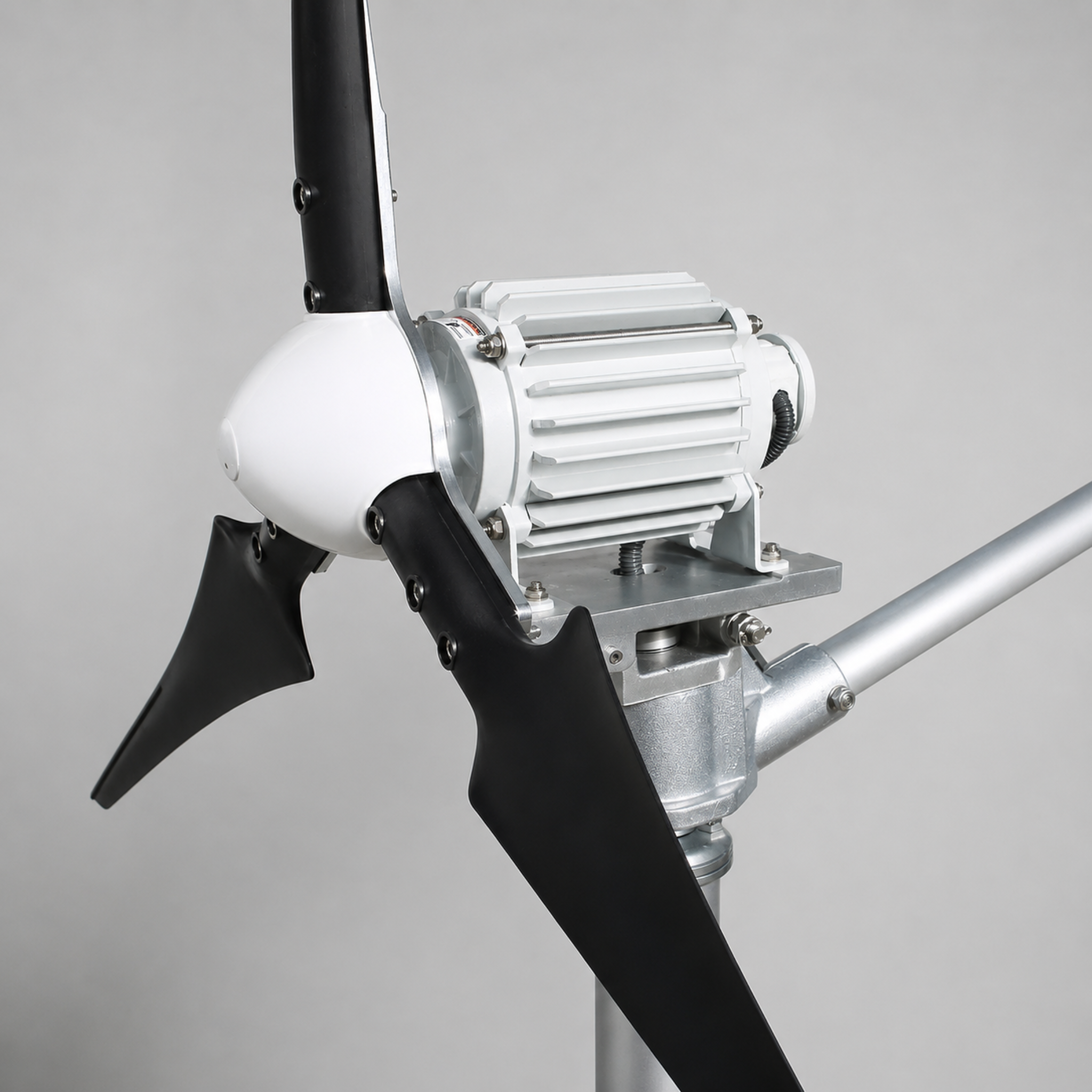

WindSafe 1500W Wind Generator | 48V


Advanced Wind Protection. Engineered for Long-Term Performance.

The WindSafe 1500W is a premium 48V wind generator designed for reliable, long-term energy production with an integrated mechanical storm protection system.

Developed for demanding wind conditions, the WindSafe series features a specially engineered tilting mechanism that helps protect the turbine during strong winds. When wind pressure increases, the generator structure can tilt away from the direct wind direction, reducing rotor stress, frontal load and excessive rotation.

With its robust construction, aerodynamic blade design and high-efficiency permanent magnet generator, the WindSafe 2000W delivers dependable performance while maintaining durability, low noise operation and reduced maintenance requirements.


WindSafe Protection System

The integrated WindSafe tilting system is designed to provide additional turbine protection in strong wind conditions. By allowing the generator to move into a safer position, the system helps reduce mechanical stress on the rotor and generator assembly.

This advanced protection concept supports a longer service life and makes the WindSafe series a distinctive solution in the wind generator category.







Technical Datasheet

IstaBreeze 2000W 24V/48V Windsafe Wind Turbine

High-output Windsafe wind turbine designed for 24V and 48V battery-based wind energy systems.

Maximum Power 1600 W
Rated Power 1500 W
Rotor Diameter 220 cm
Start Wind Speed 3 m/s

Wind Turbine Specifications

Current
80 A at 24 V / 40 A at 48 V
Generator Material
Aluminium
Body Material
Aluminium casting
Maximum Power
1600 W
Rated Power
1500 W
Voltage
24 V AC / 48 V AC
Package Dimensions
Package 1: 60 × 40 × 30 cm / 28.5 kg
Package 2: 110 × 19 × 12 cm / 3.5 kg
Total weight: 32 kg
Auto Track Circuit
14 m/s, rotor tilted
Power Transmission
Slip ring system, pre-mounted on the support element to prevent cable twisting or bending.

Wind Speed Data

Initial Wind Speed
3 m/s
Maximum Wind Speed
14–15 m/s

Blade Specifications

Blade Material
Carbon
Blade Length
107 cm
Rotor Diameter
220 cm
Noise Level
40 dB
Blade Weight
770 g
Blade Width
14.3 cm

Required Equipment

Battery Group
Suitable battery group: min. 7200 W – max. 14400 W
For safe and efficient operation, this wind turbine should be used with a compatible charge controller and a suitable battery system.
