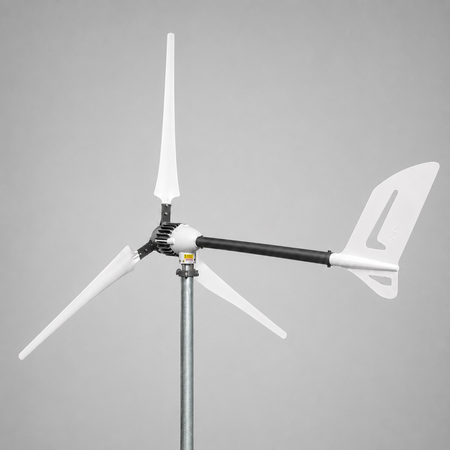

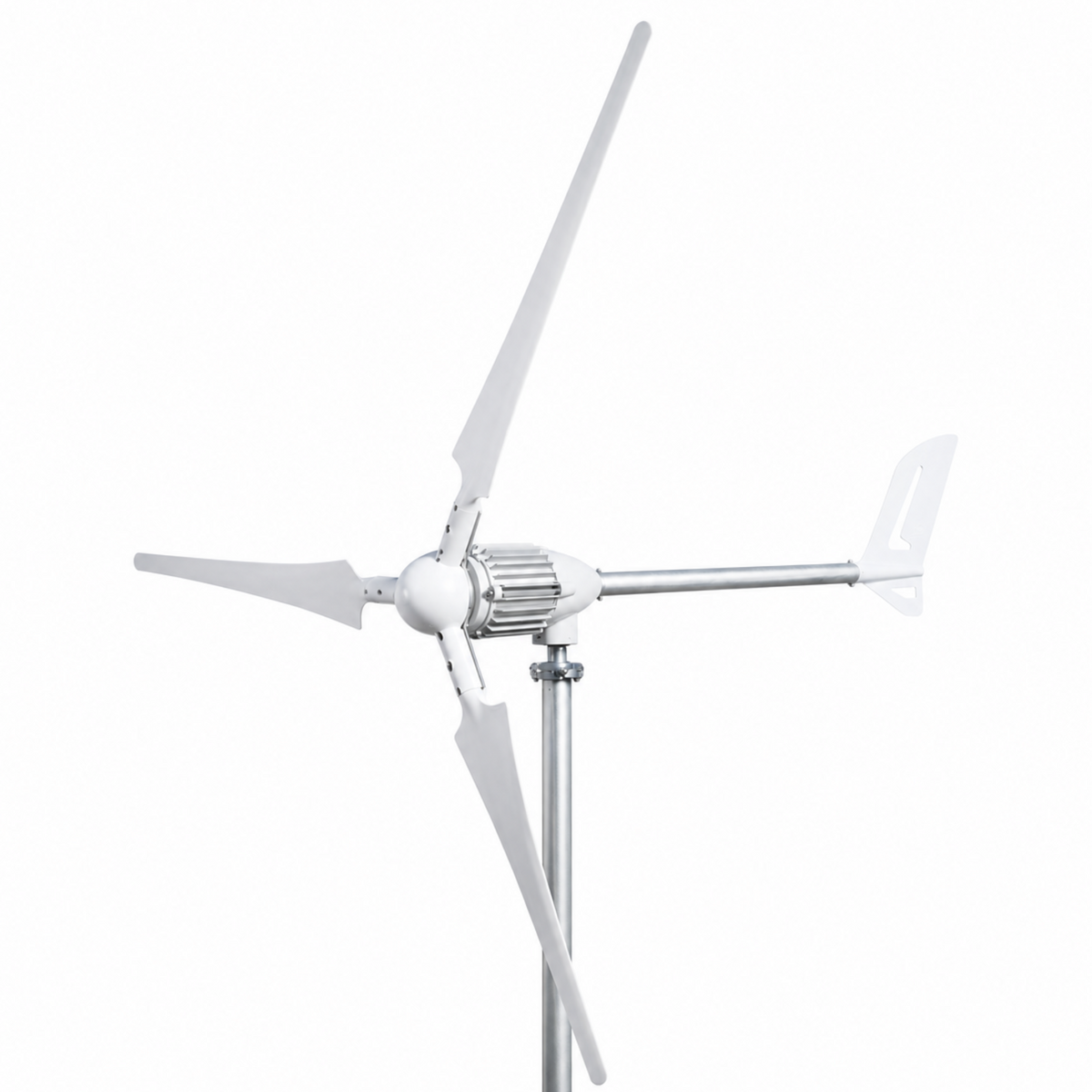

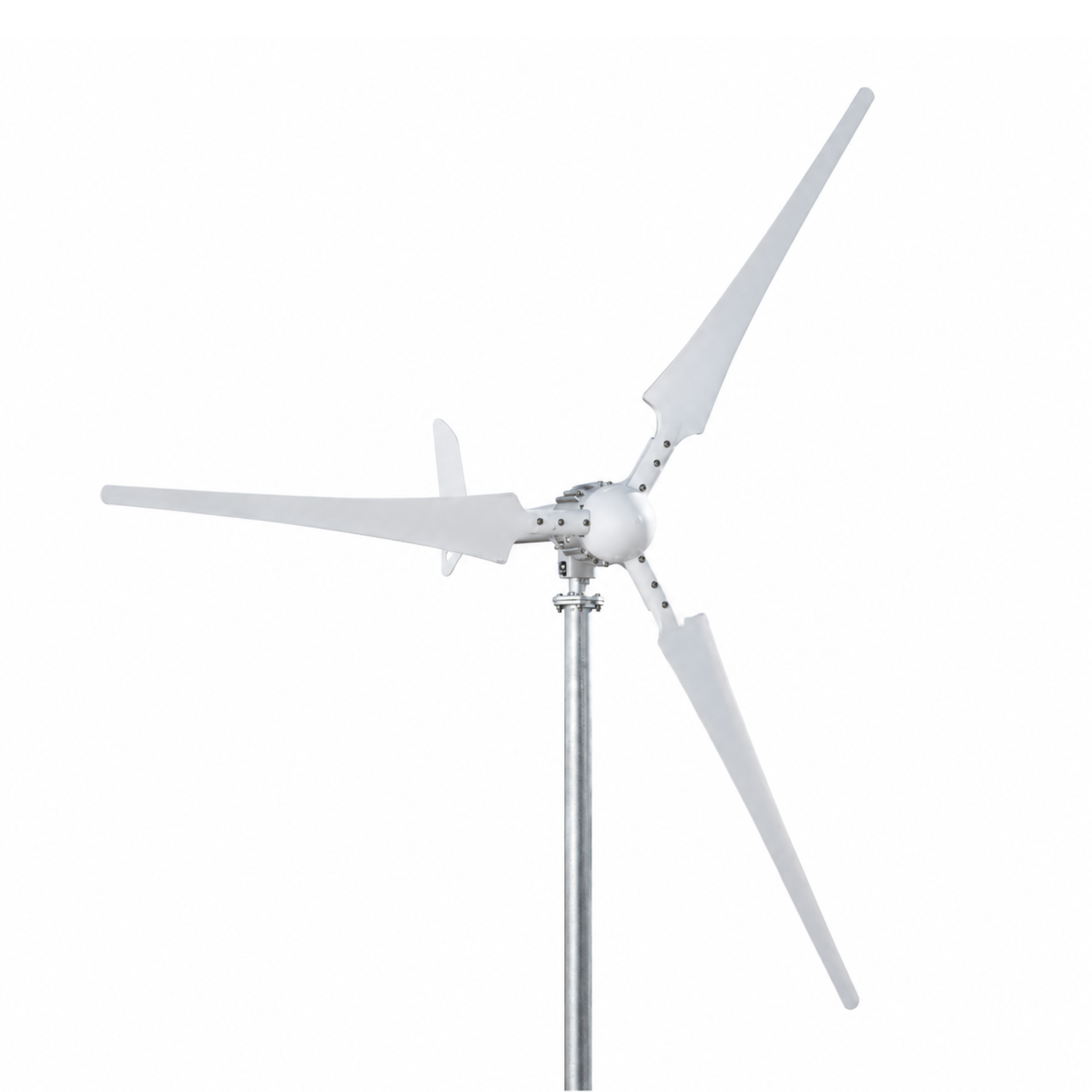

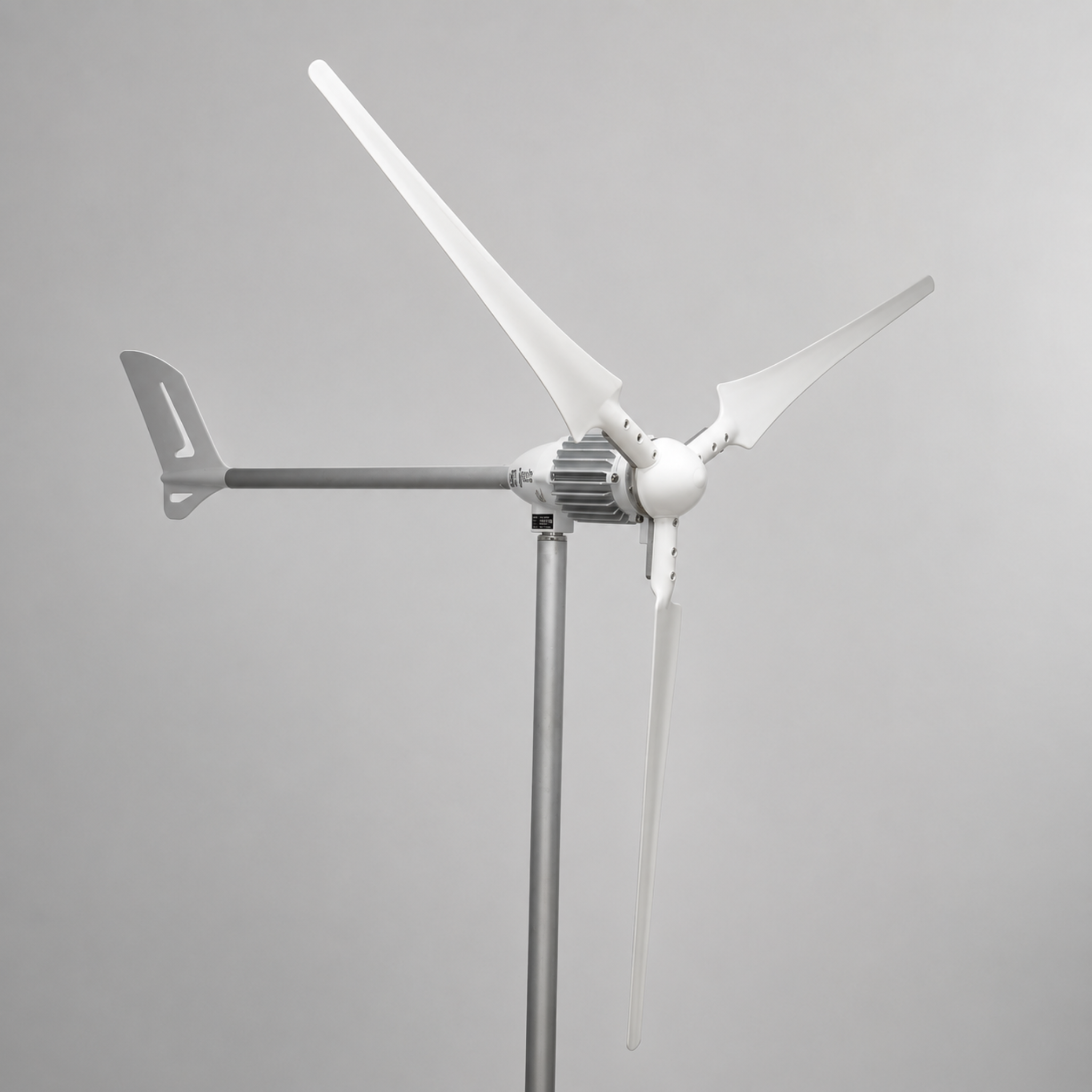

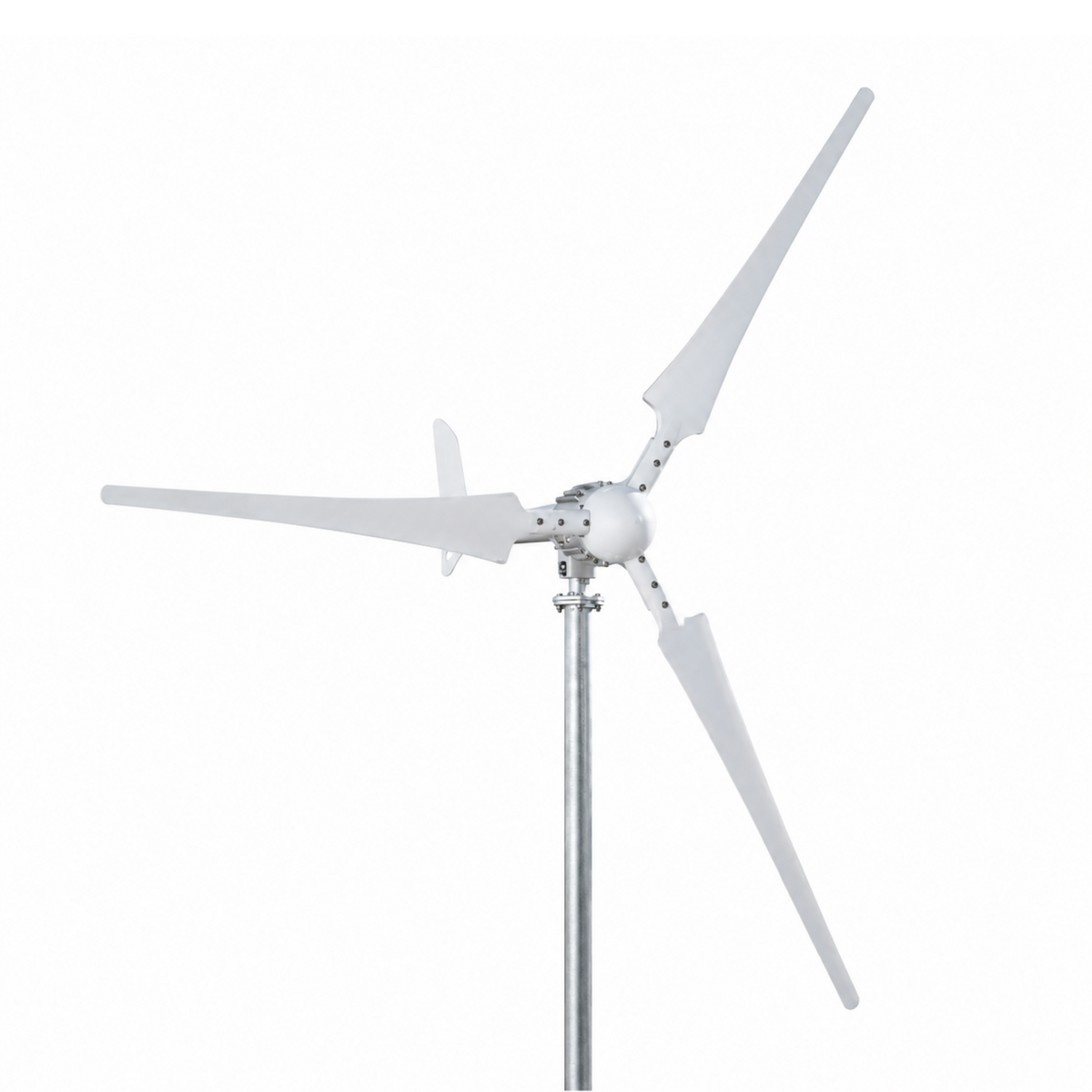

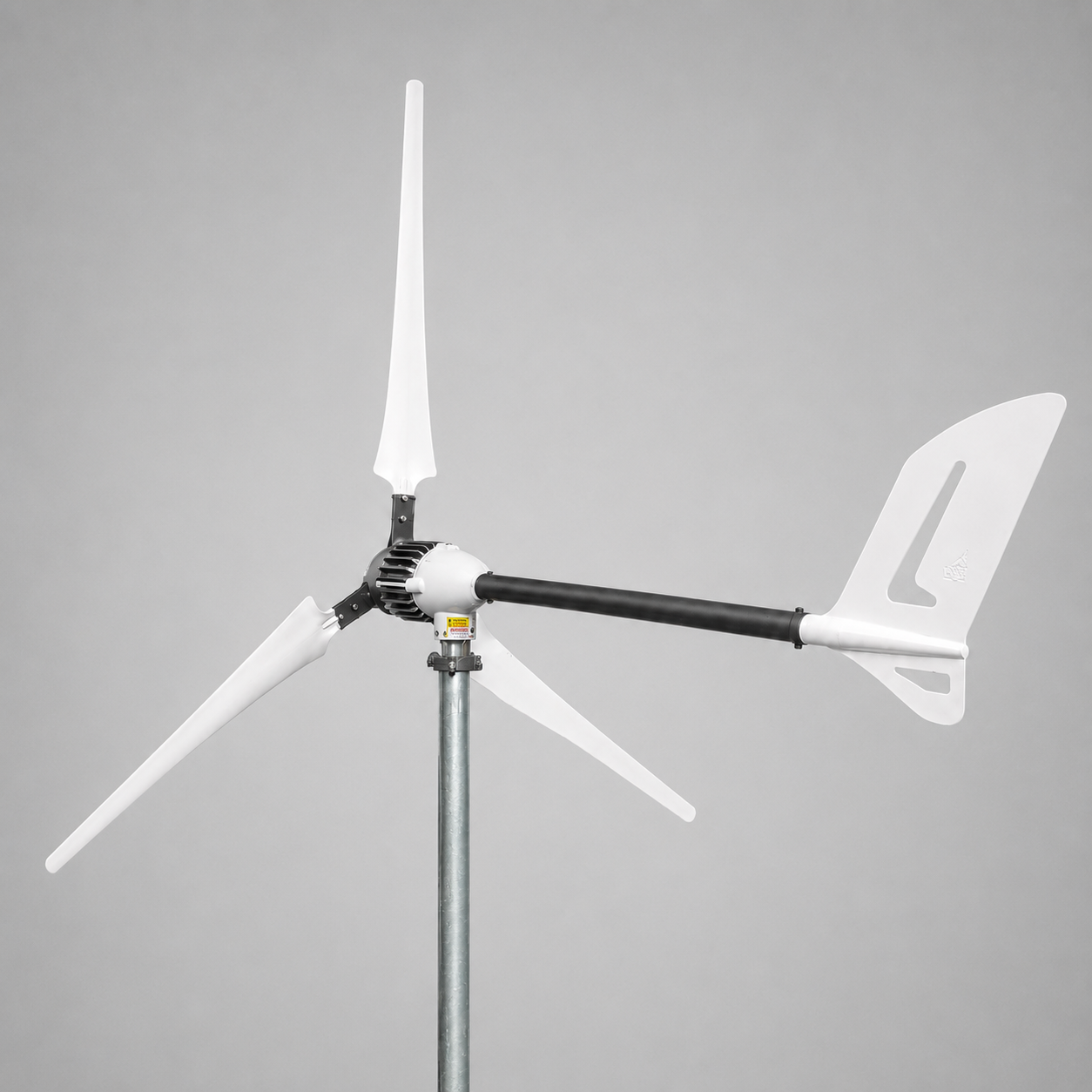

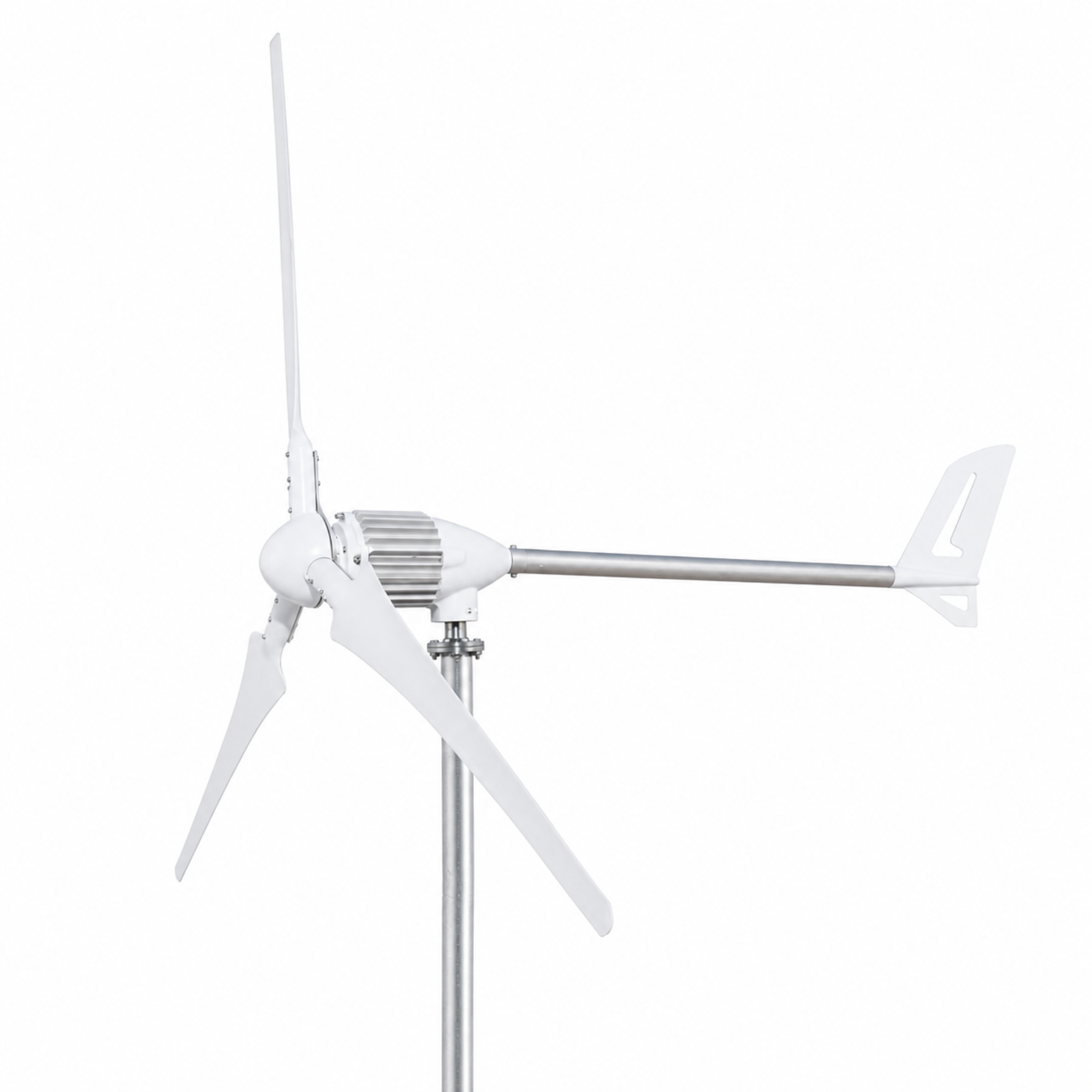

I-1500 – 24/48V Wind Turbine 1.5kW Generator Set

Out of stock
Regular price £430.00 inc. VAT

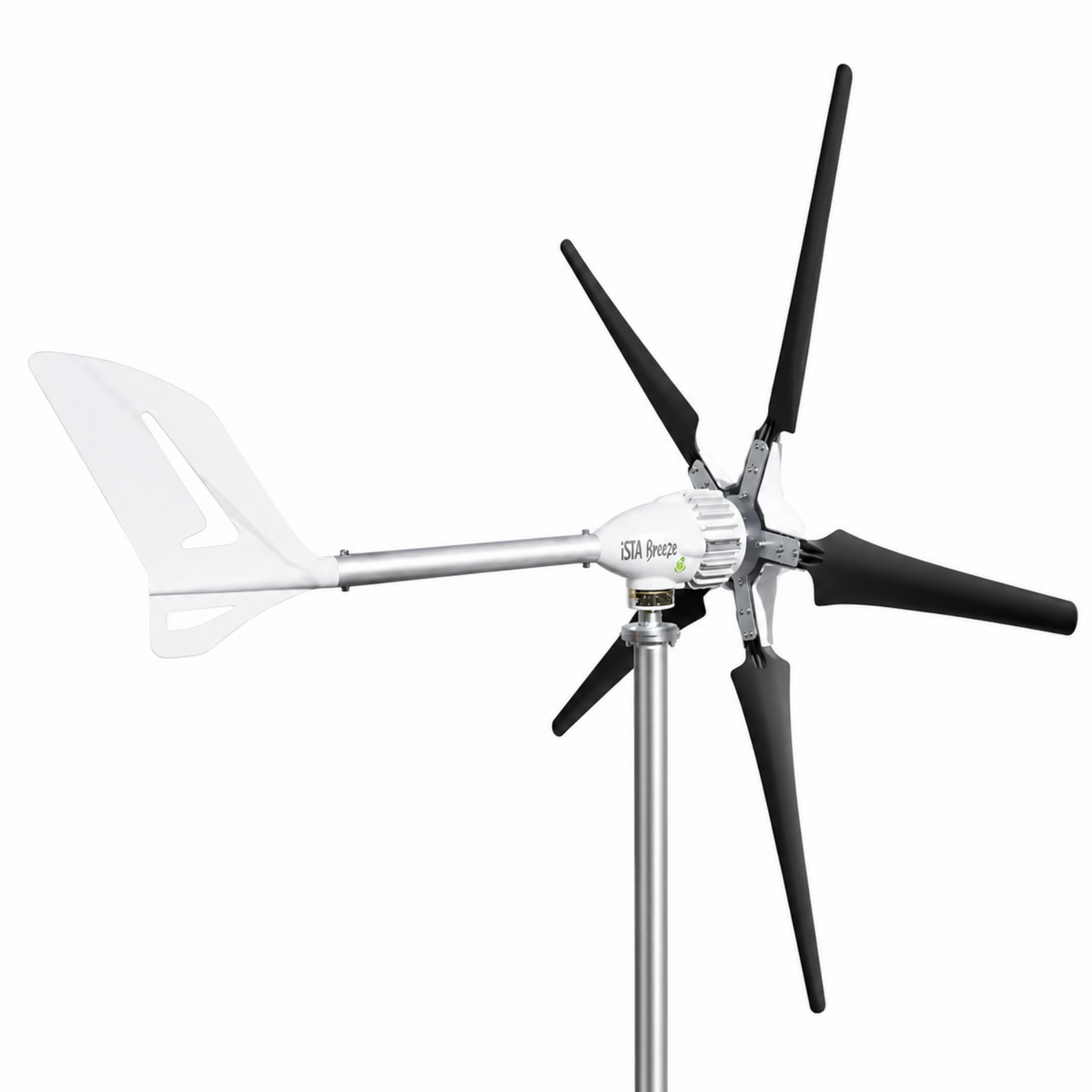

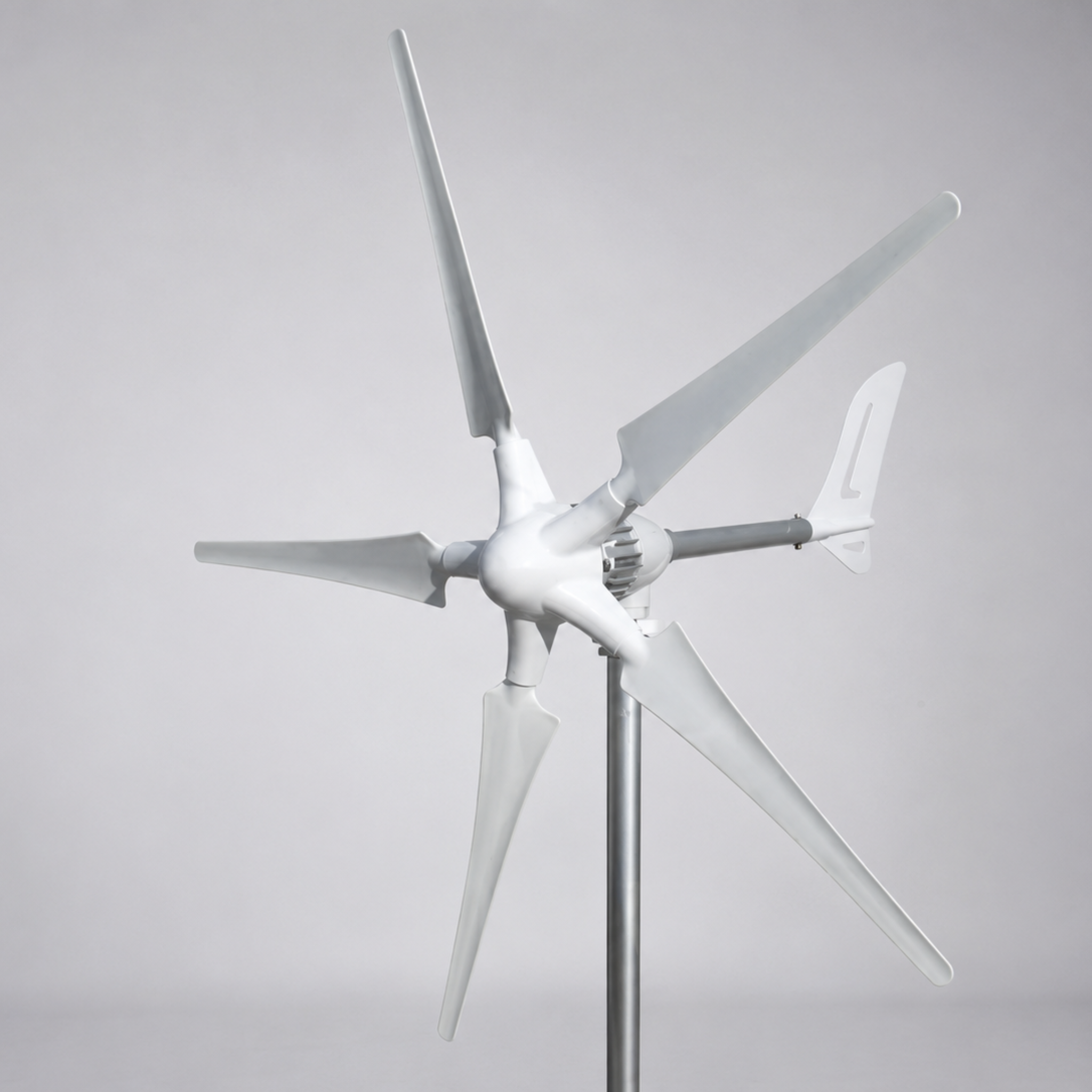

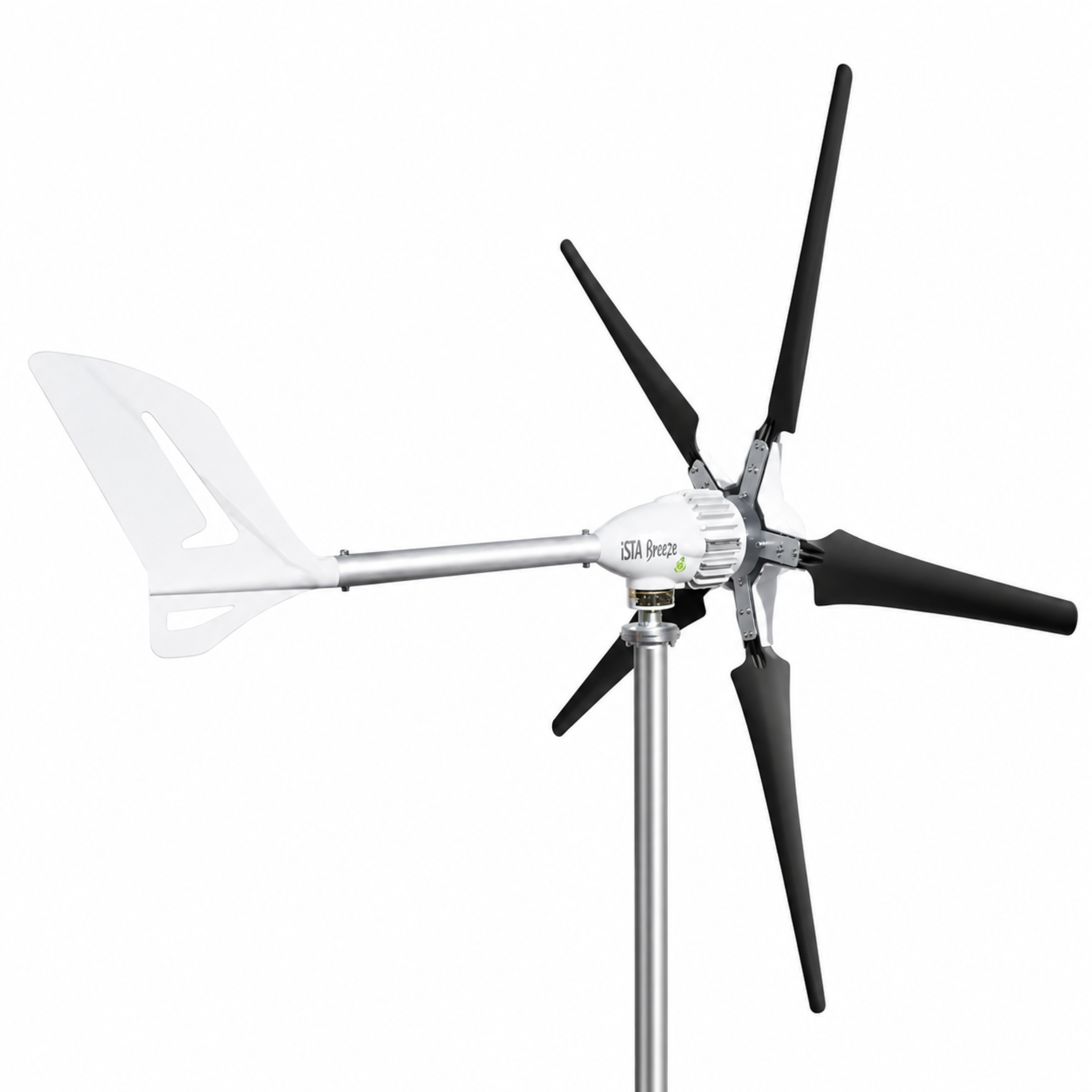

Rotor Configuration:
System Voltage

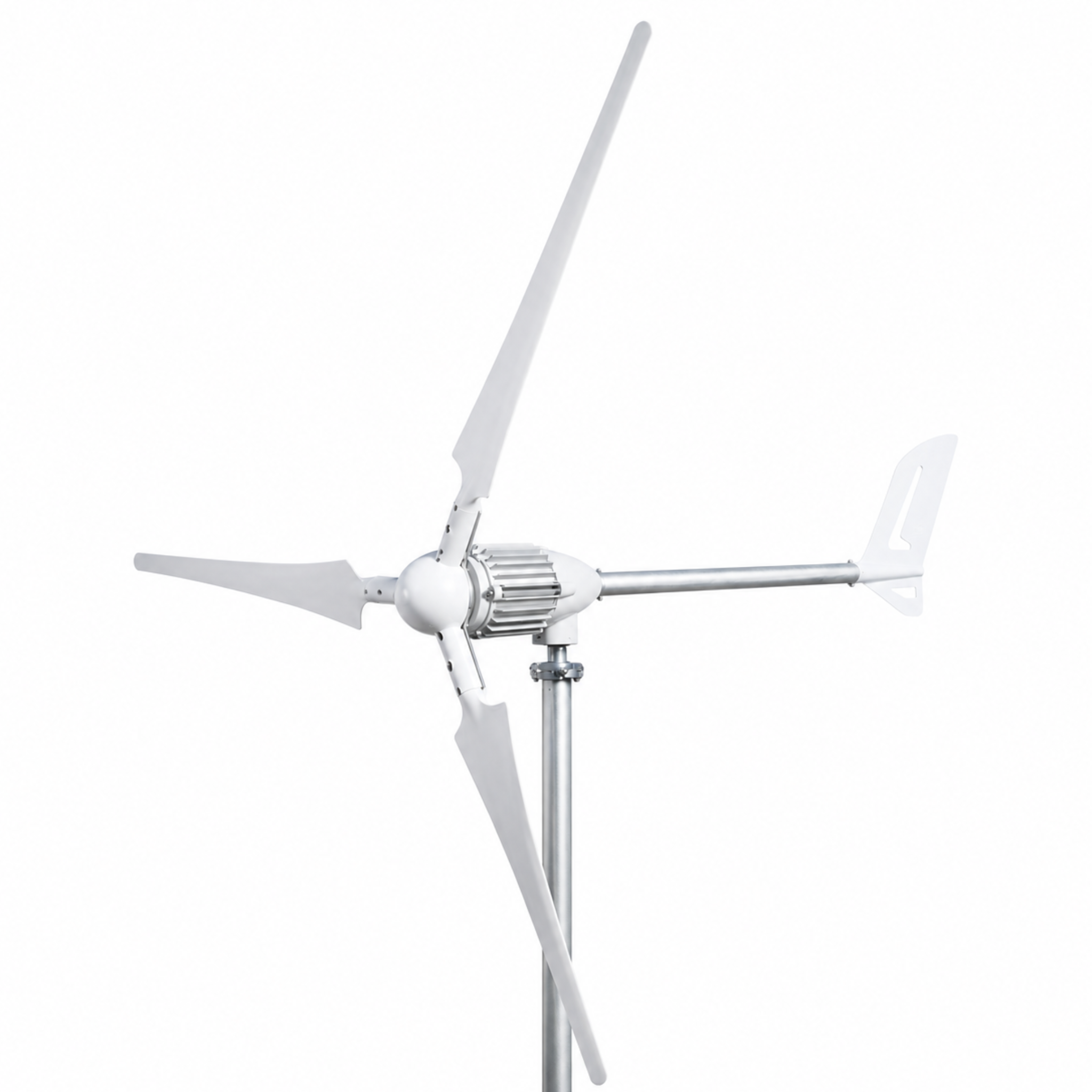

i-1500 Wind Generator | 1500W | 24V / 48V


Powerful Wind Energy with Professional-Grade Engineering

The i-1500 is a high-performance wind generator designed for reliable energy production in 24V or 48V systems. With a rated output of up to 1500W, this turbine offers a strong balance of power, durability and efficient wind energy conversion.

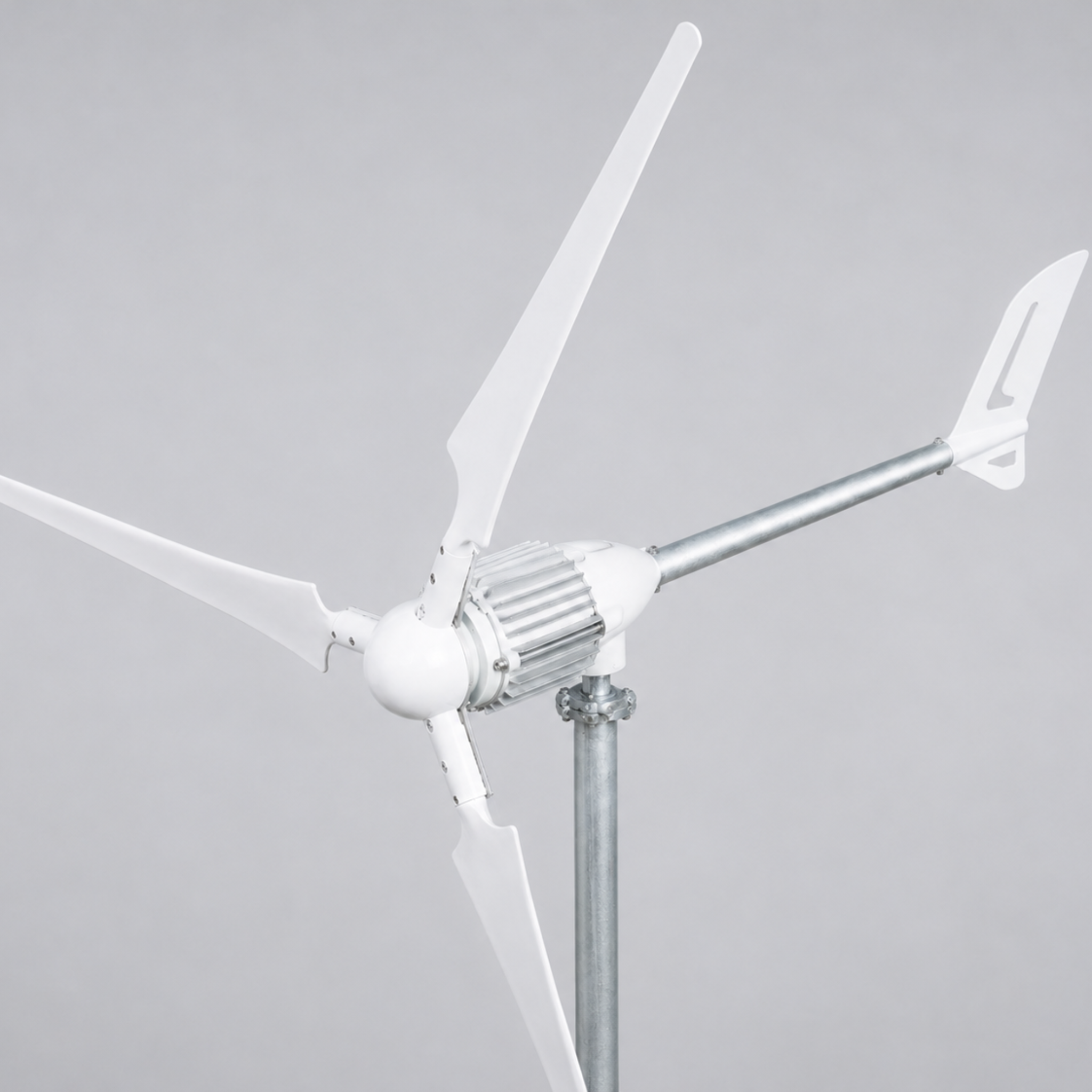

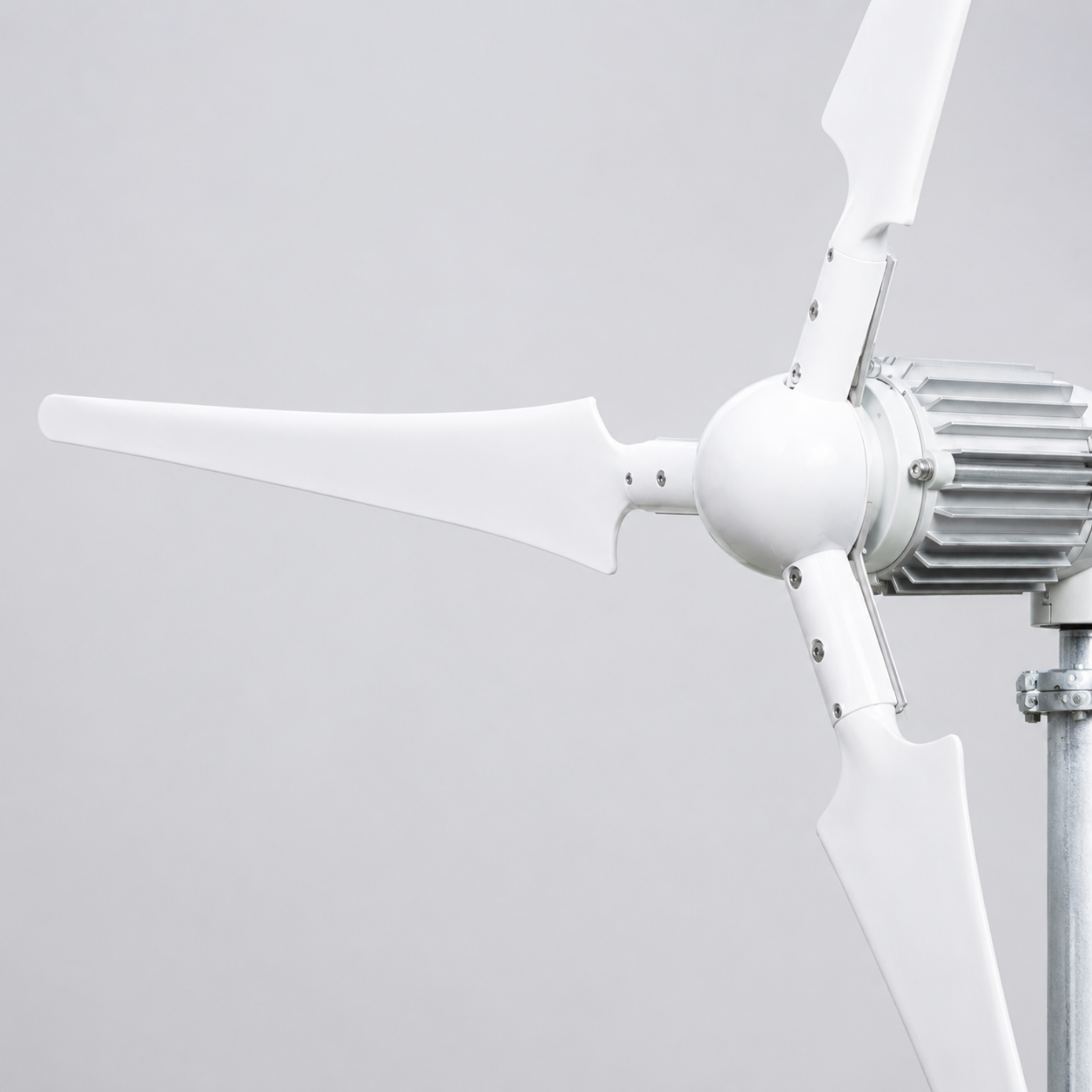

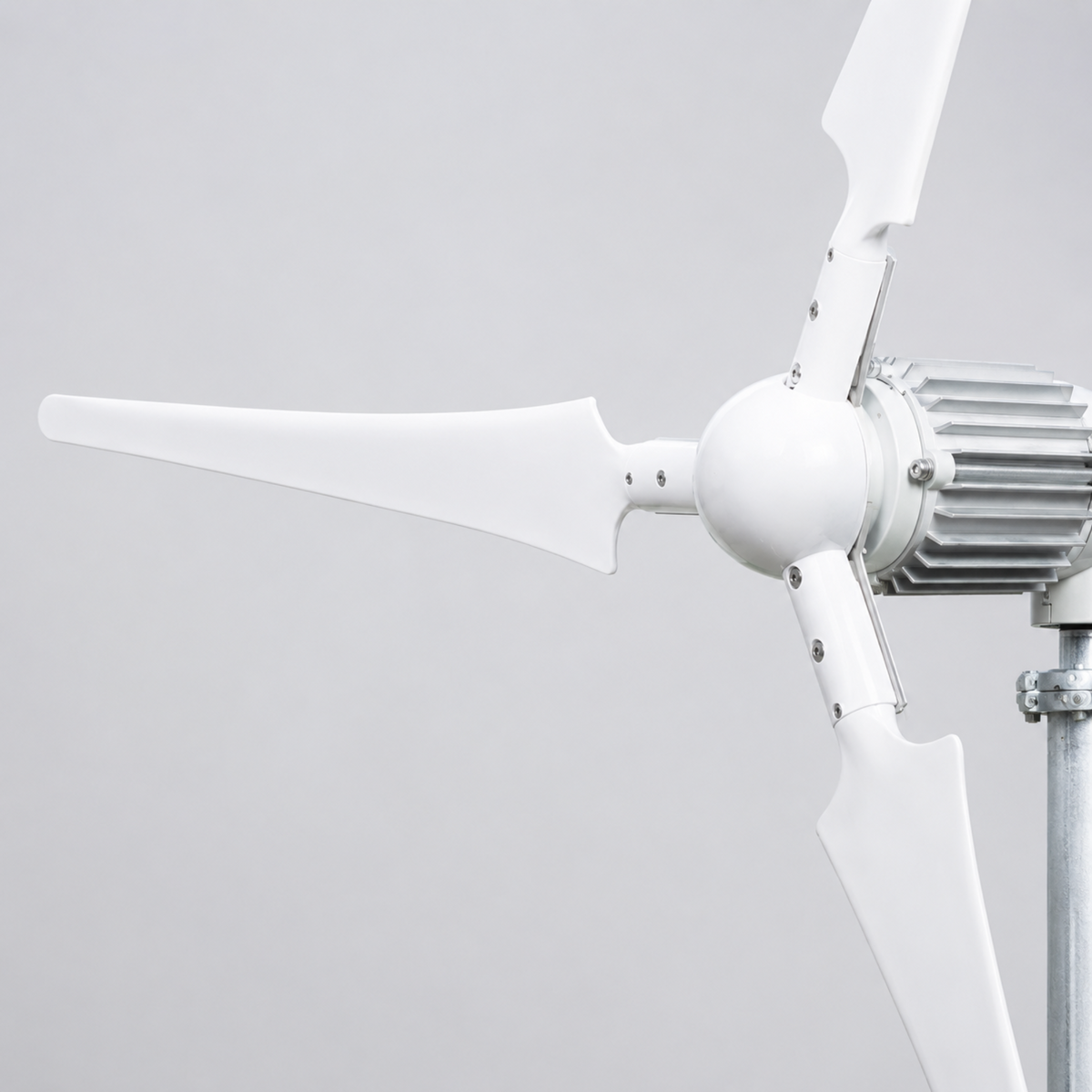

Built with a robust 3-phase permanent magnet generator, aerodynamic rotor blade design and a powder-coated aluminium housing, the i-1500 is engineered for long-term operation, low maintenance and stable performance in changing wind conditions.


Designed for Low, Medium and High Wind Conditions

The i-1500 is developed for flexible wind performance across different wind profiles. Its aerodynamic design supports efficient rotation and smooth energy generation, while the strong permanent magnet generator helps deliver reliable output.

The turbine is available in 24V or 48V configuration, allowing it to be matched with the correct battery system and compatible wind charge controller.

For safe and proper operation, the wind generator must be used with a suitable charge controller matched to the selected system voltage and battery configuration.





Technical Datasheet

IstaBreeze i-1500W 24V/48V Wind Turbine

High-performance wind turbine designed for 24V and 48V battery-based wind energy systems.

Maximum Power 1600 W
Rated Power 1500 W
Rotor Diameter 220 cm
Start Wind Speed 3 m/s

Wind Turbine Specifications

Current
80 A at 24 V / 40 A at 48 V
Alternator Body
Aluminium
Body Material
Aluminium casting
Maximum Power
1600 W
Rated Power
1500 W
Voltage
24 V AC / 48 V AC
Package Dimensions
Package 1: 60 × 40 × 30 cm / 20.5 kg
Package 2: 110 × 19 × 12 cm / 3.5 kg
Total weight: 24 kg

Wind Speed Data

Initial Wind Speed
3 m/s
Maximum Wind Speed
14–15 m/s

Blade Specifications

Blade Material

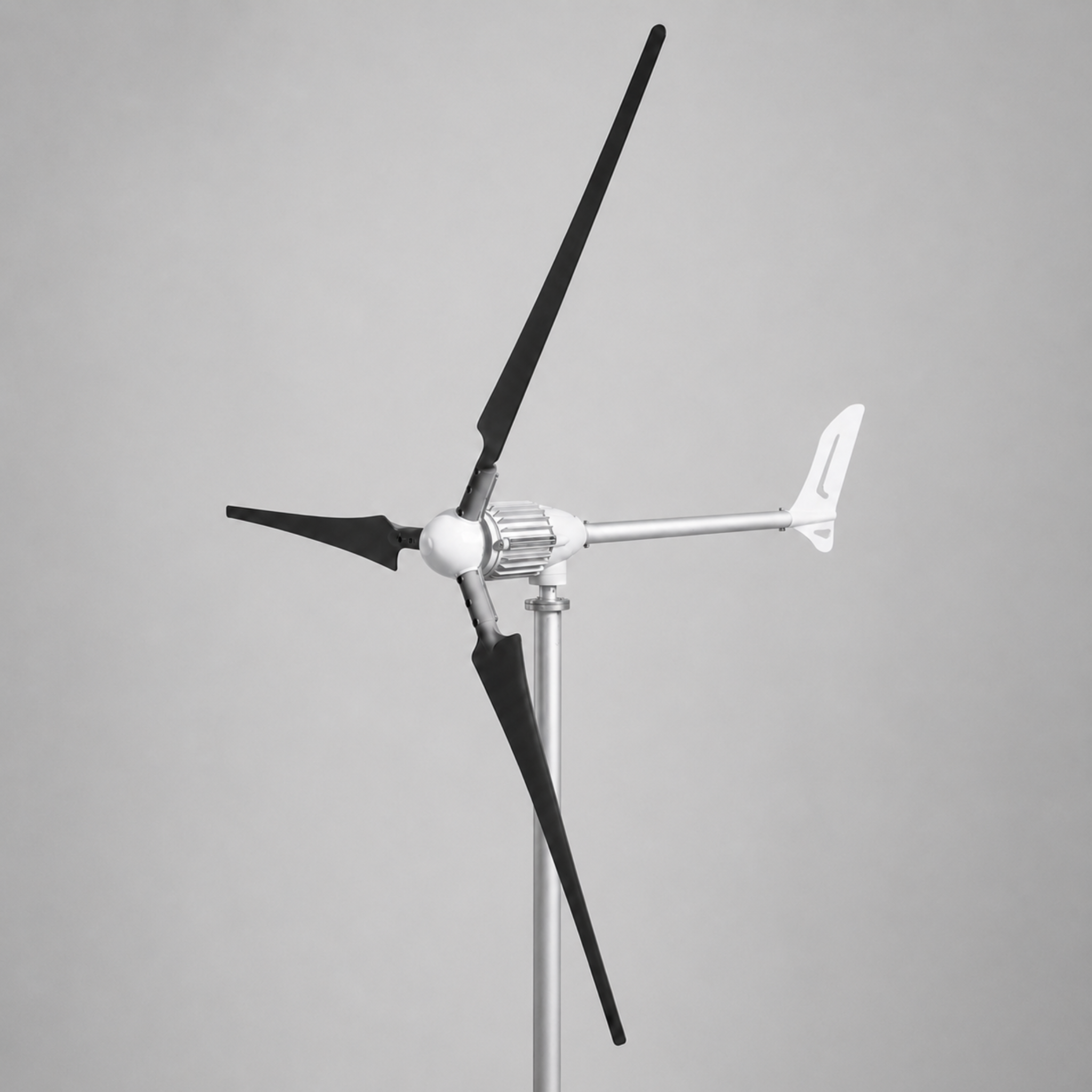

Composite or Carbon
Blade Length
107 cm
Rotor Diameter
220 cm
Noise Level
40 dB (Carbon) / 50 dB (Composite)
Blade Weight
650 g (Composite) / 770 g (Carbon)
Blade Width
14.3 cm

Required Equipment

Battery Group
Suitable battery group: min. 4800 W – max. 9600 W
For safe and efficient operation, this wind turbine should be used with a compatible charge controller and a suitable battery system.
