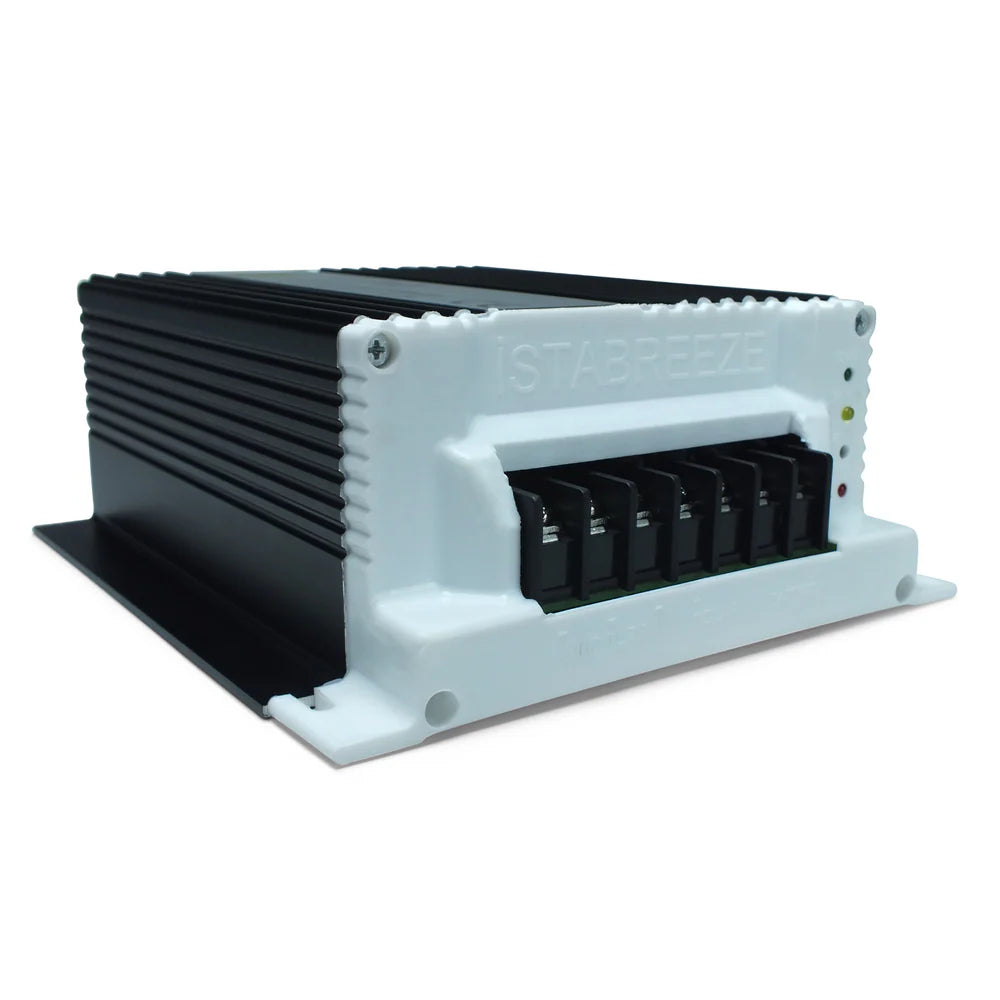

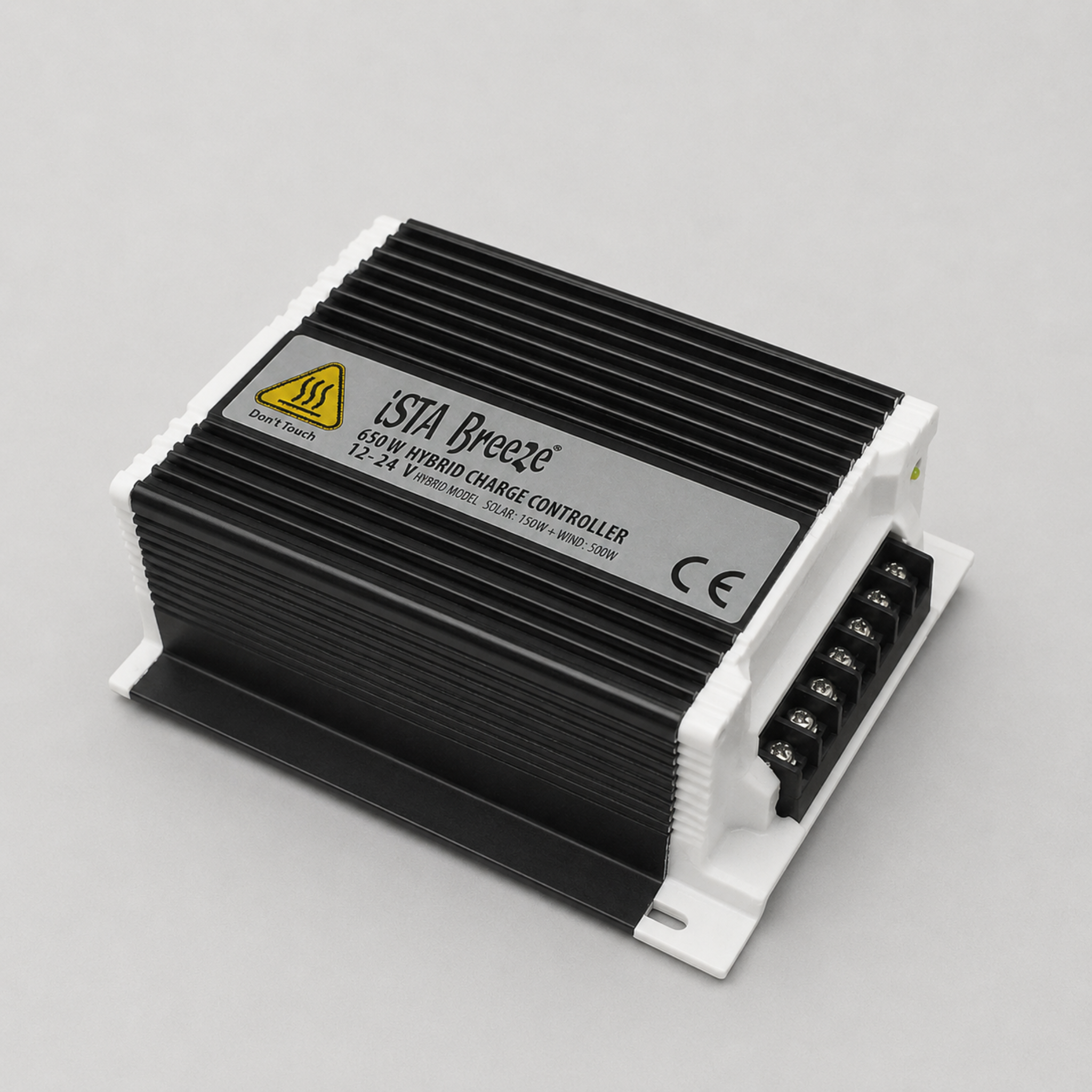

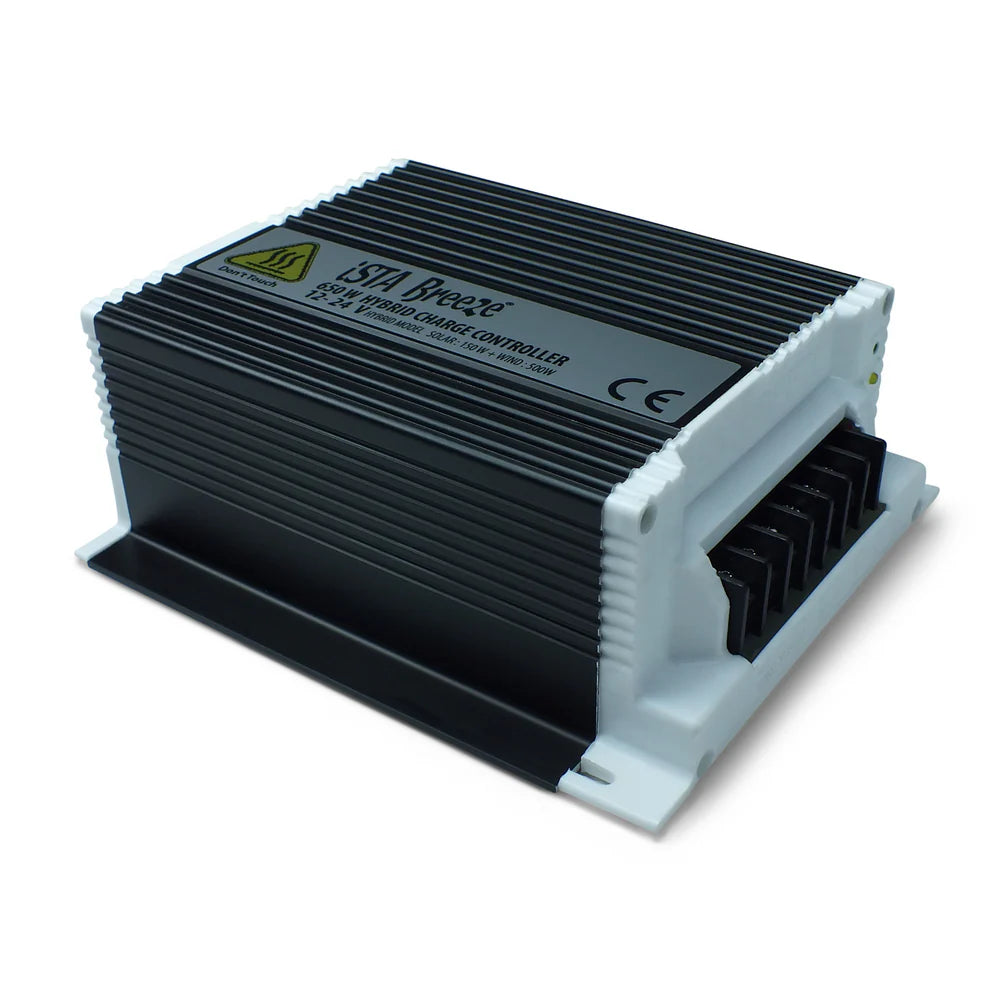

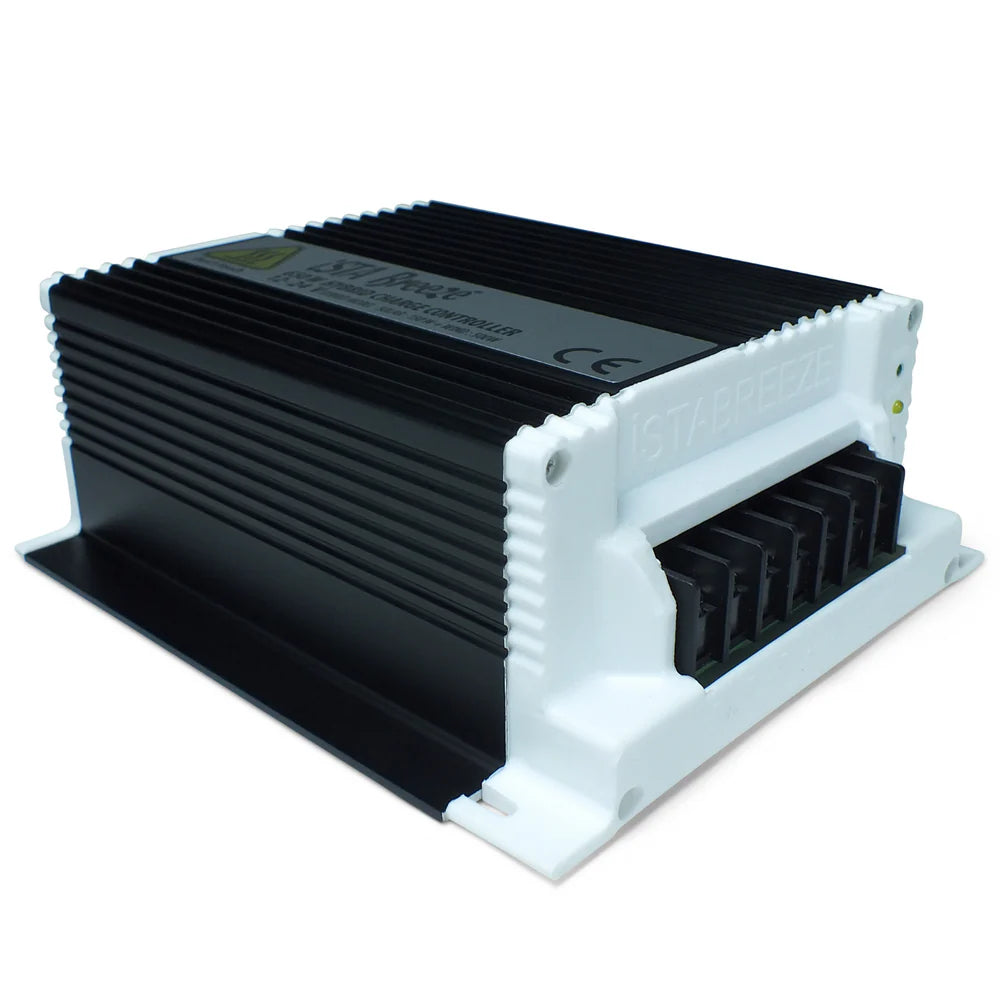

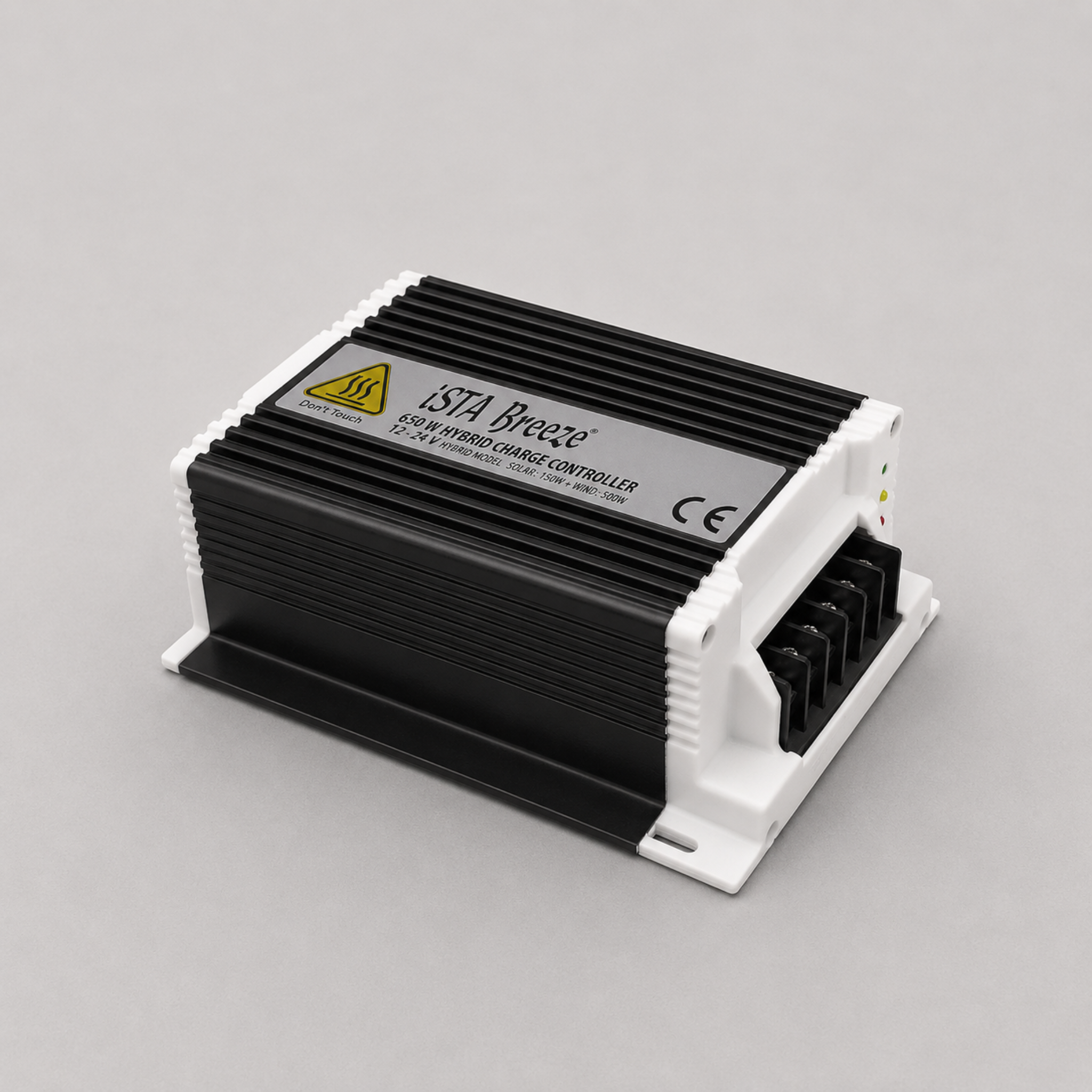

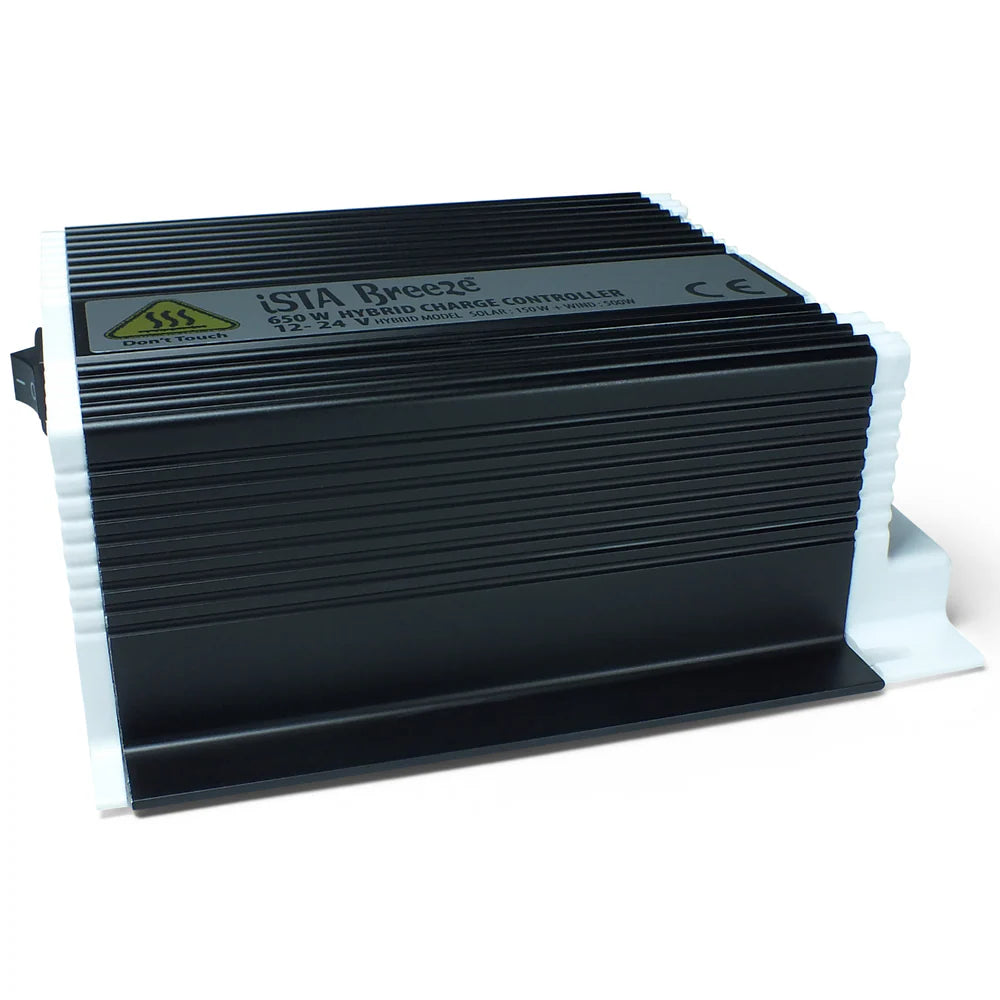

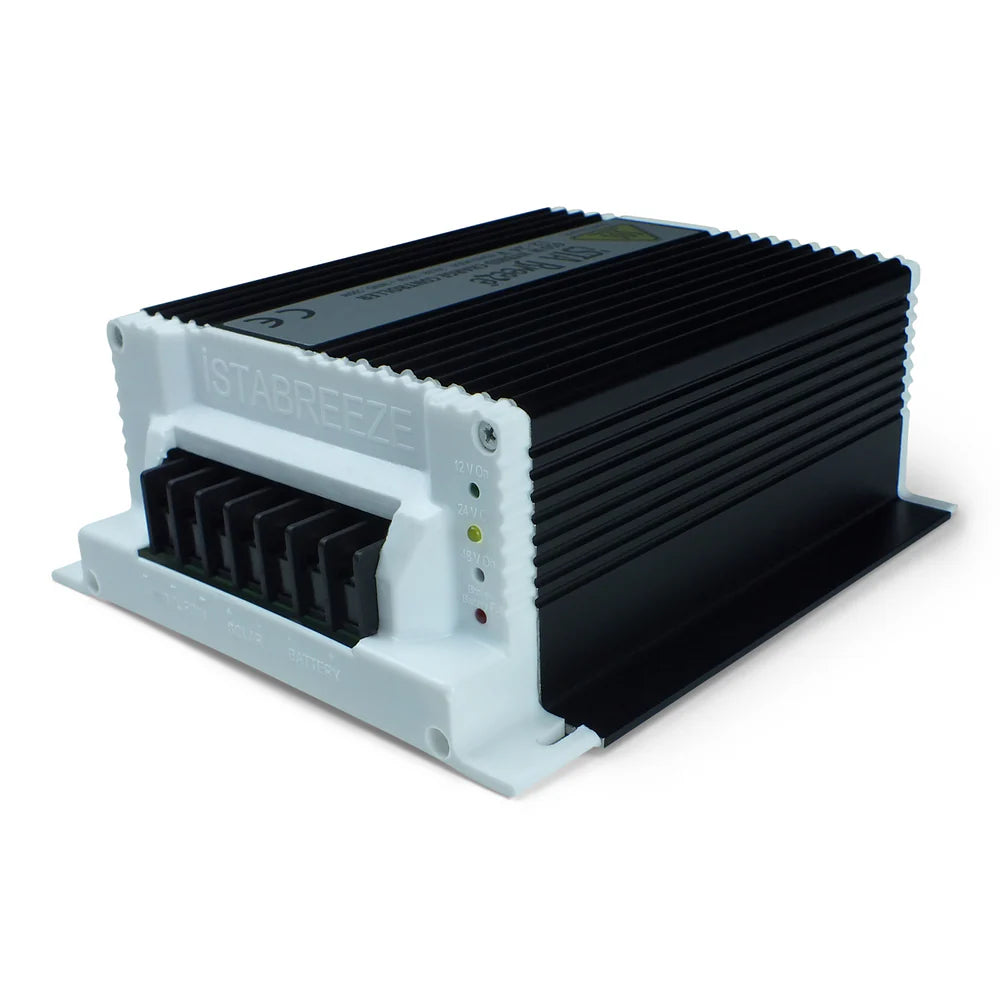

IstaBreeze® iHCC650 12V/24V Hybrid Charge Controller for 500W Wind Systems

Out of stock
£60.00 inc. VAT

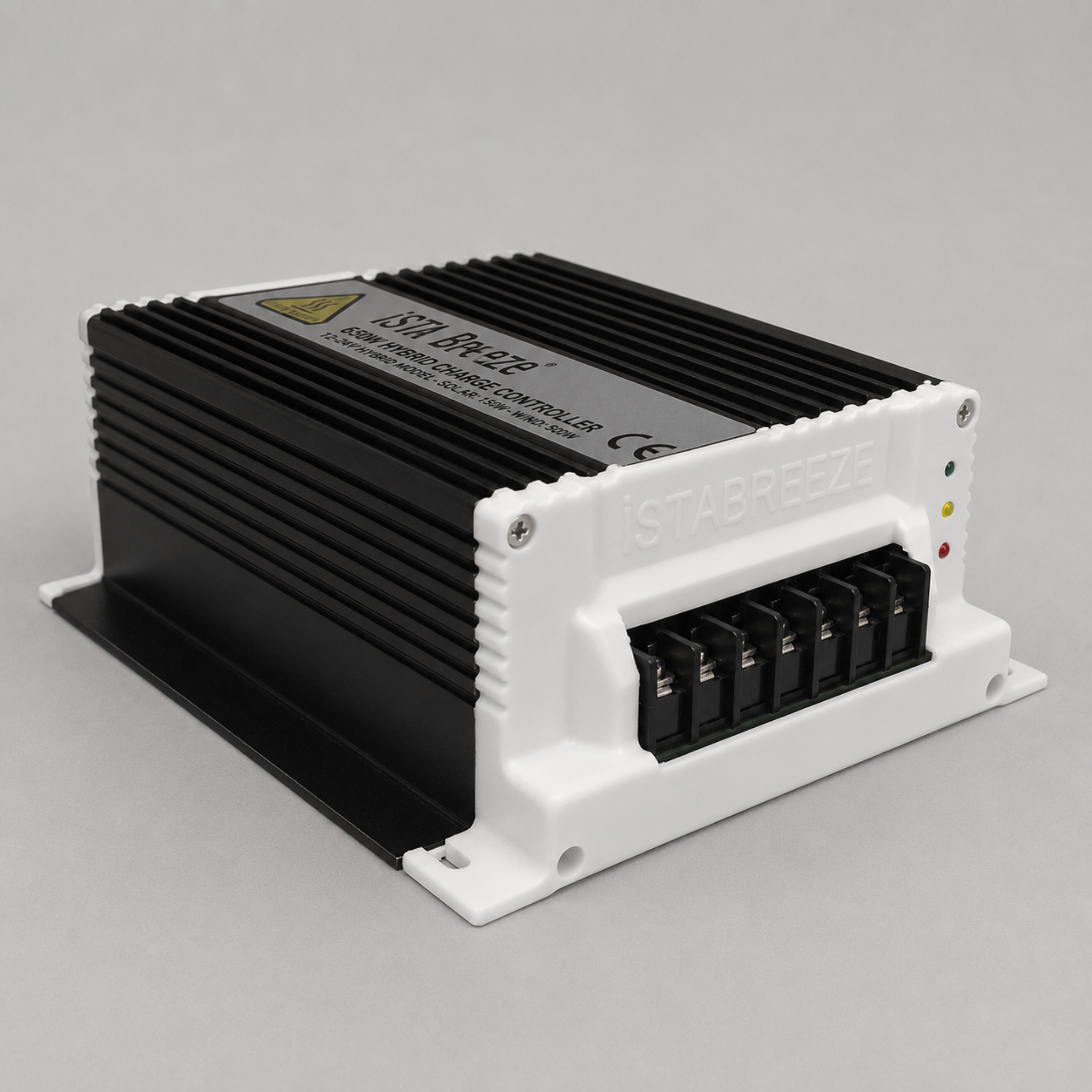

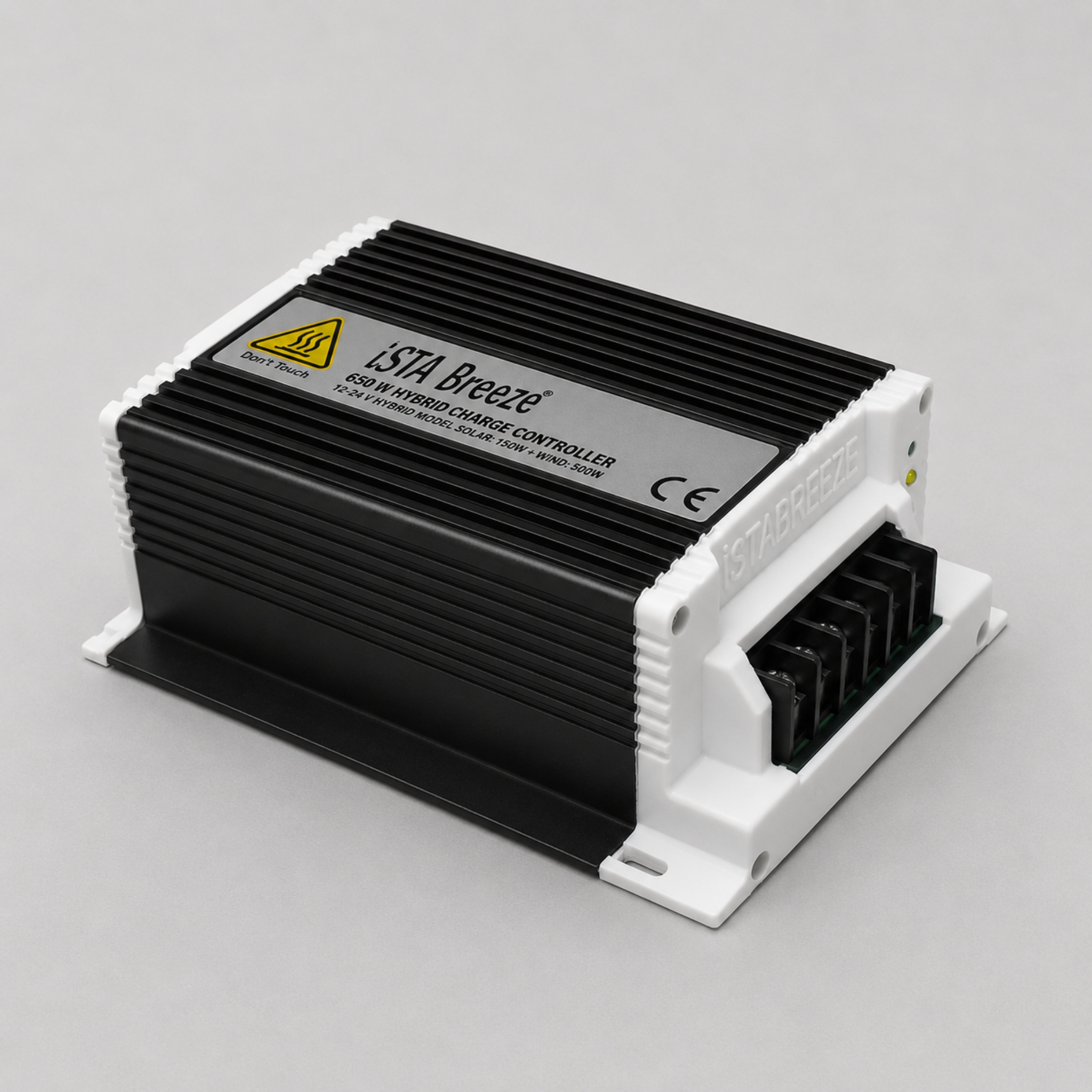

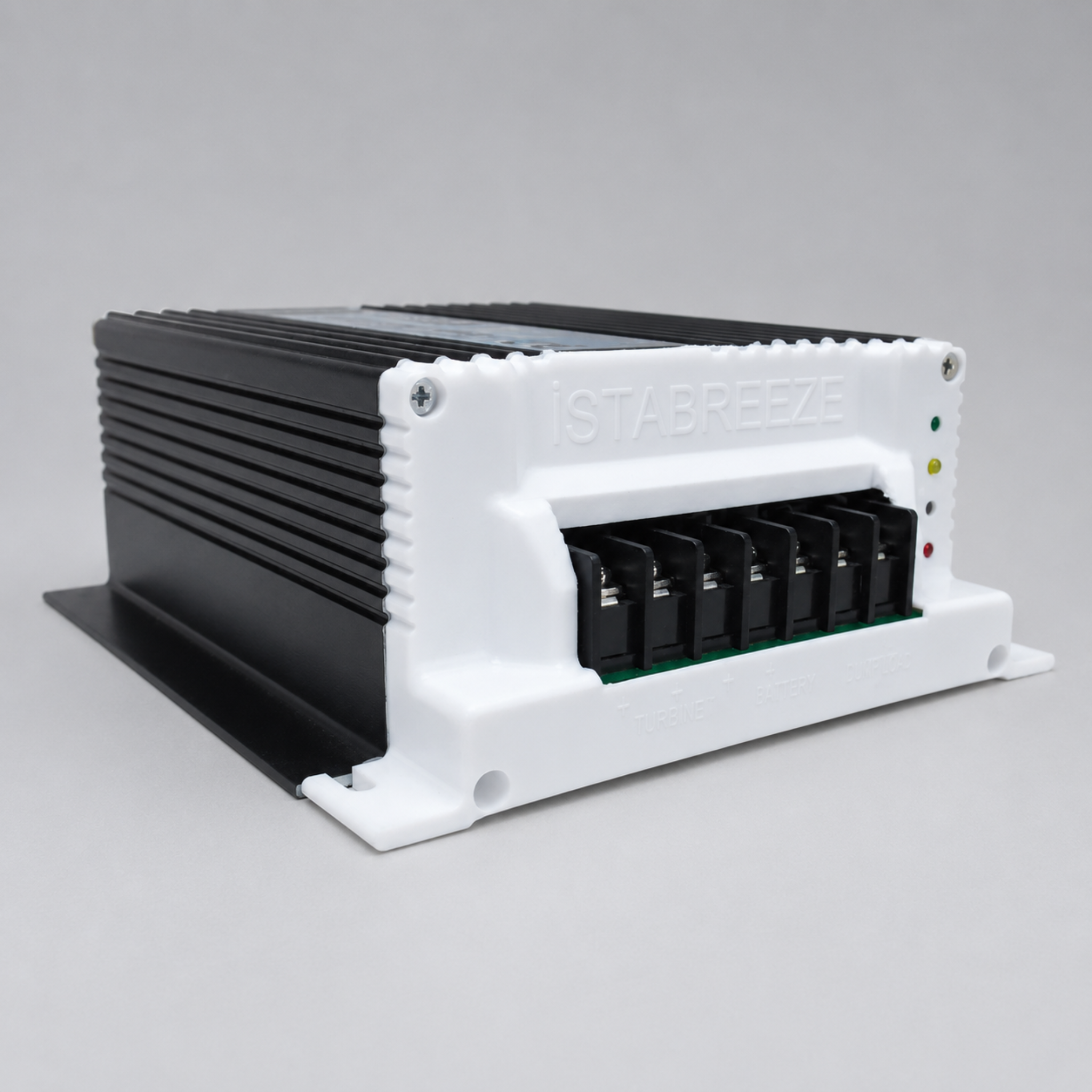

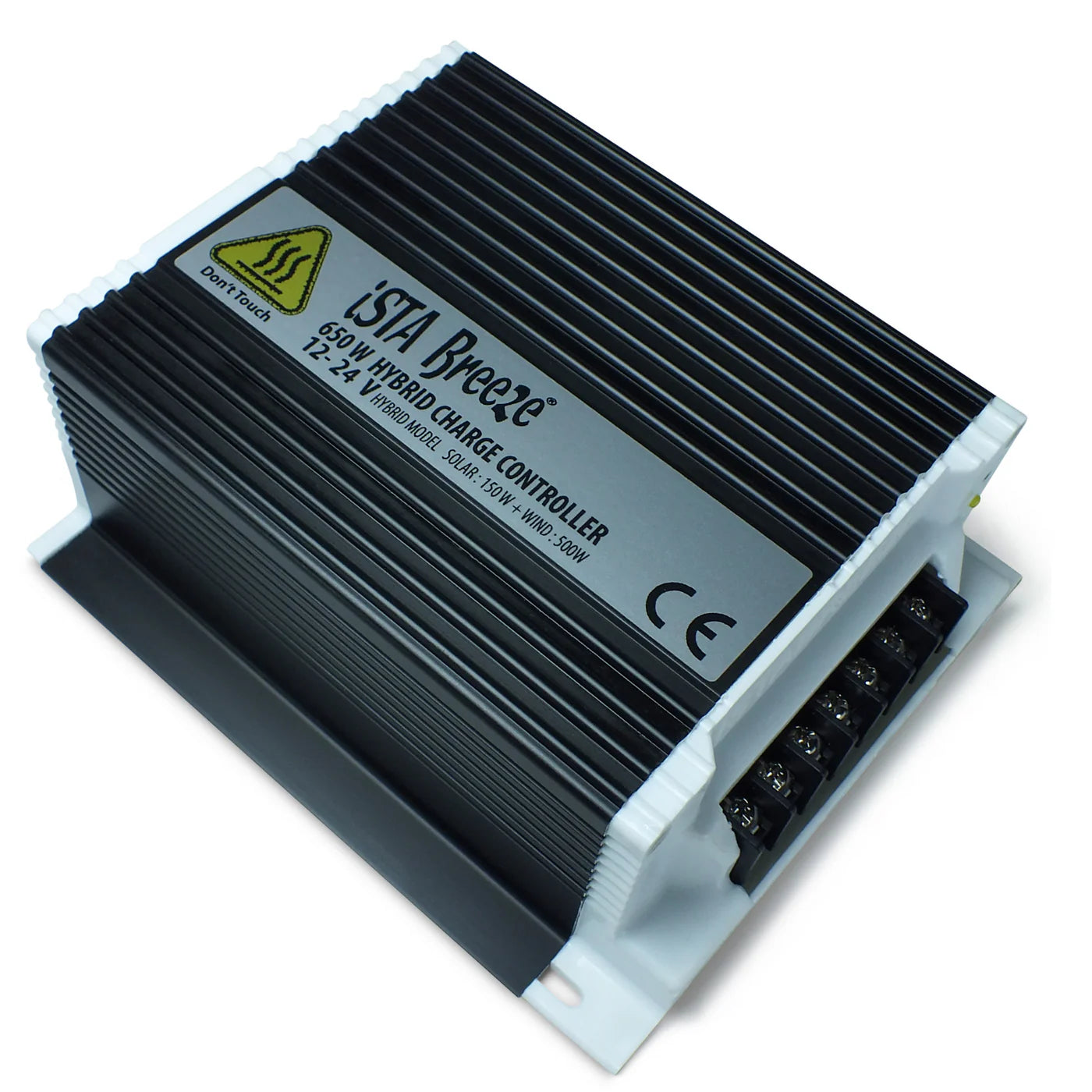

iSTA-BREEZE® I/HCC650 Hybrid Charge Controller | 12V / 24V


Compact Hybrid Charging Control for Wind and Solar Systems

The iSTA-BREEZE® I/HCC650 Hybrid Charge Controller is designed to manage battery charging from compatible wind generators and solar PV input in 12V or 24V systems. With integrated load control, diversion control and essential protection functions, it provides a practical and efficient solution for small renewable energy systems.

This controller supports simultaneous charging from a compatible wind generator and solar PV source, helping improve system efficiency while protecting the connected battery system.


Wind & Solar Charging Capability

The I/HCC650 can support compatible wind generator charging with a turbine load of up to 500W or 700W, depending on the selected system configuration. It can also be used together with solar PV input up to 150W.

When correctly matched with the battery system, the controller helps regulate charging performance and supports stable operation of the complete renewable energy setup.

Hybrid Charge Controller Specifications

Nominal Output Power
650 W
Input Voltage Range
12V System 12 ~ 16 V
24V System 24 ~ 28 V
Battery Voltage
12V System 12 V
24V System 24 V
Max. Wind Turbine Input
500 W
Max. Solar PV Input
150 W
Overload Protection
12V System 14.9 V ± 0.5 V
24V System 29 V ± 0.5 V
Recommended Battery Group
Min. 1800 W – Max. 2400 W
Max. Wind Turbine Input Current
12V System 40 A
24V System 20 A
Protection Function

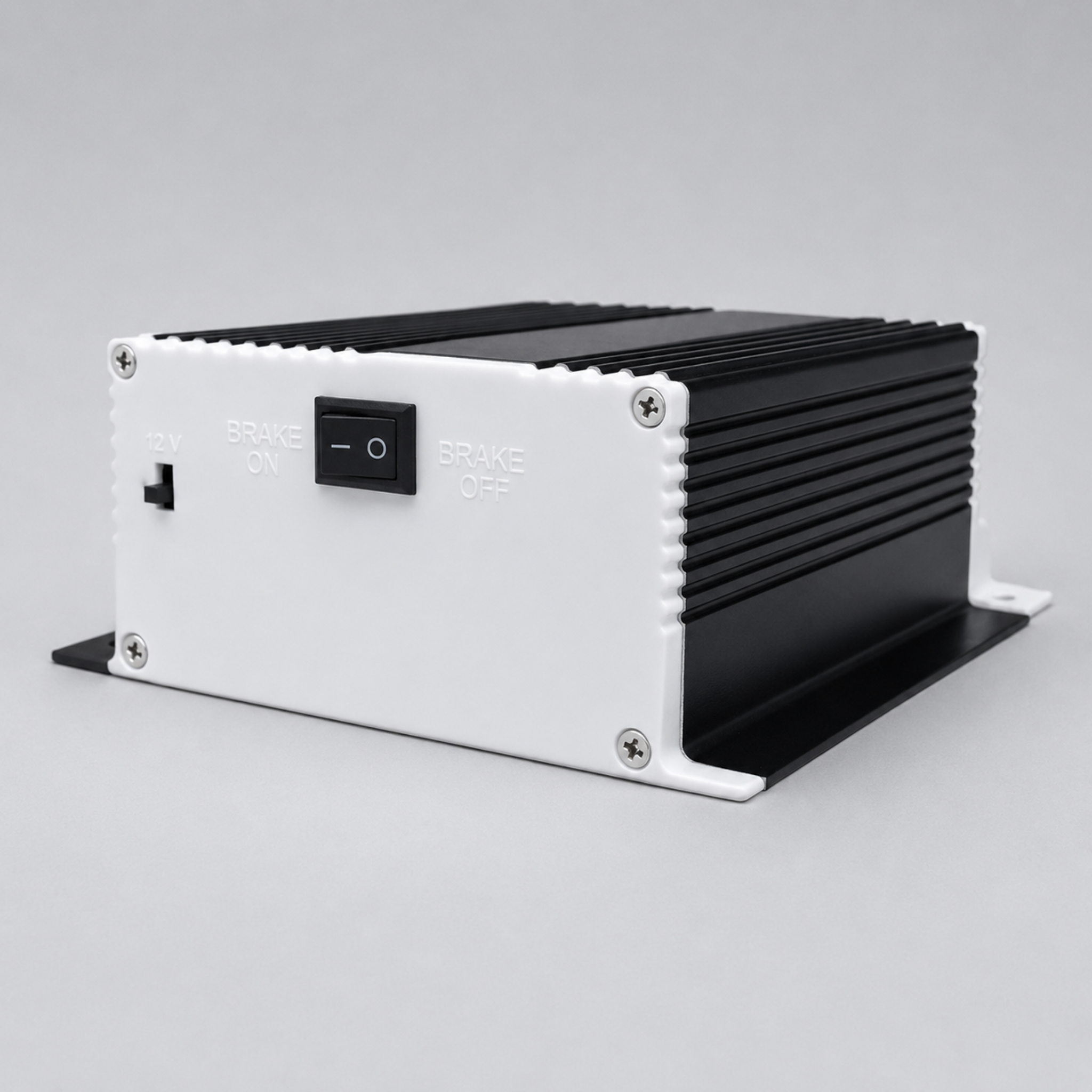

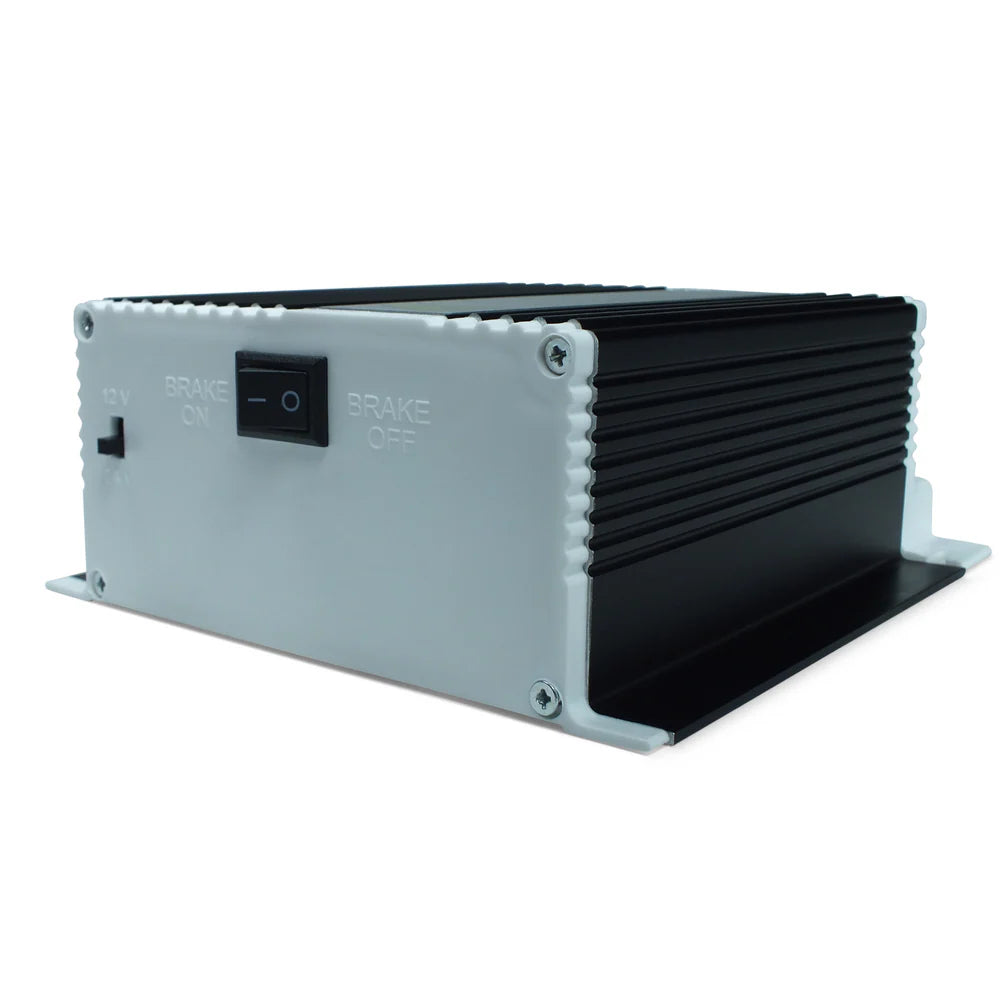

Automatic braking is activated when the battery is sufficiently charged. The system also supports storm-related protection; manual braking may be required depending on operating conditions.
This hybrid charge controller is designed for 12V and 24V battery systems and supports both wind turbine input and solar PV input.
