Charge controller IstaBreeze® i/HCC-1500 W-24V or 2000 W-48V

Out of stock
£390.00 inc. VAT
Variation

I/HCC Pro Wind Charge Controller | 24V / 48V


Intelligent Wind Charging with Integrated Protection

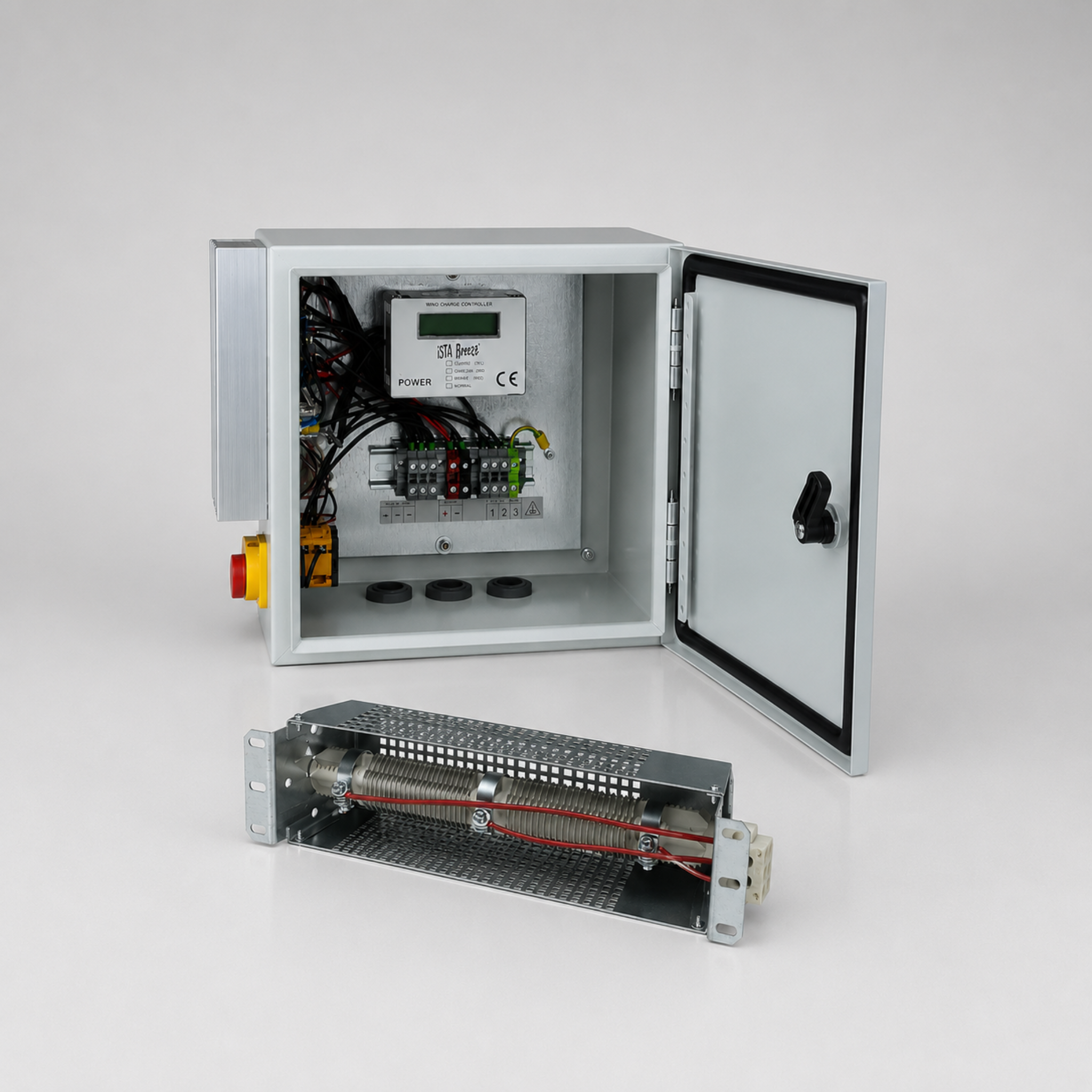

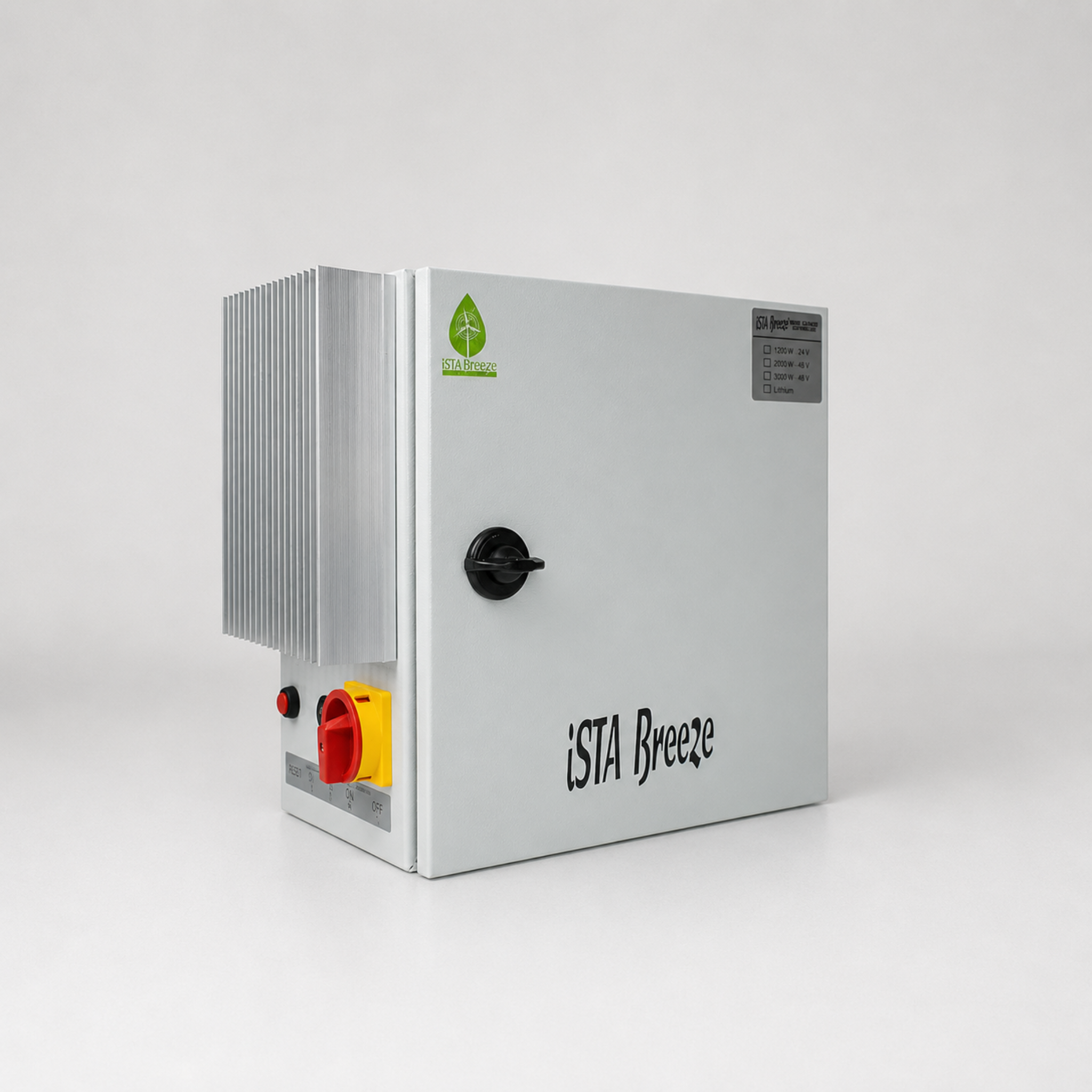

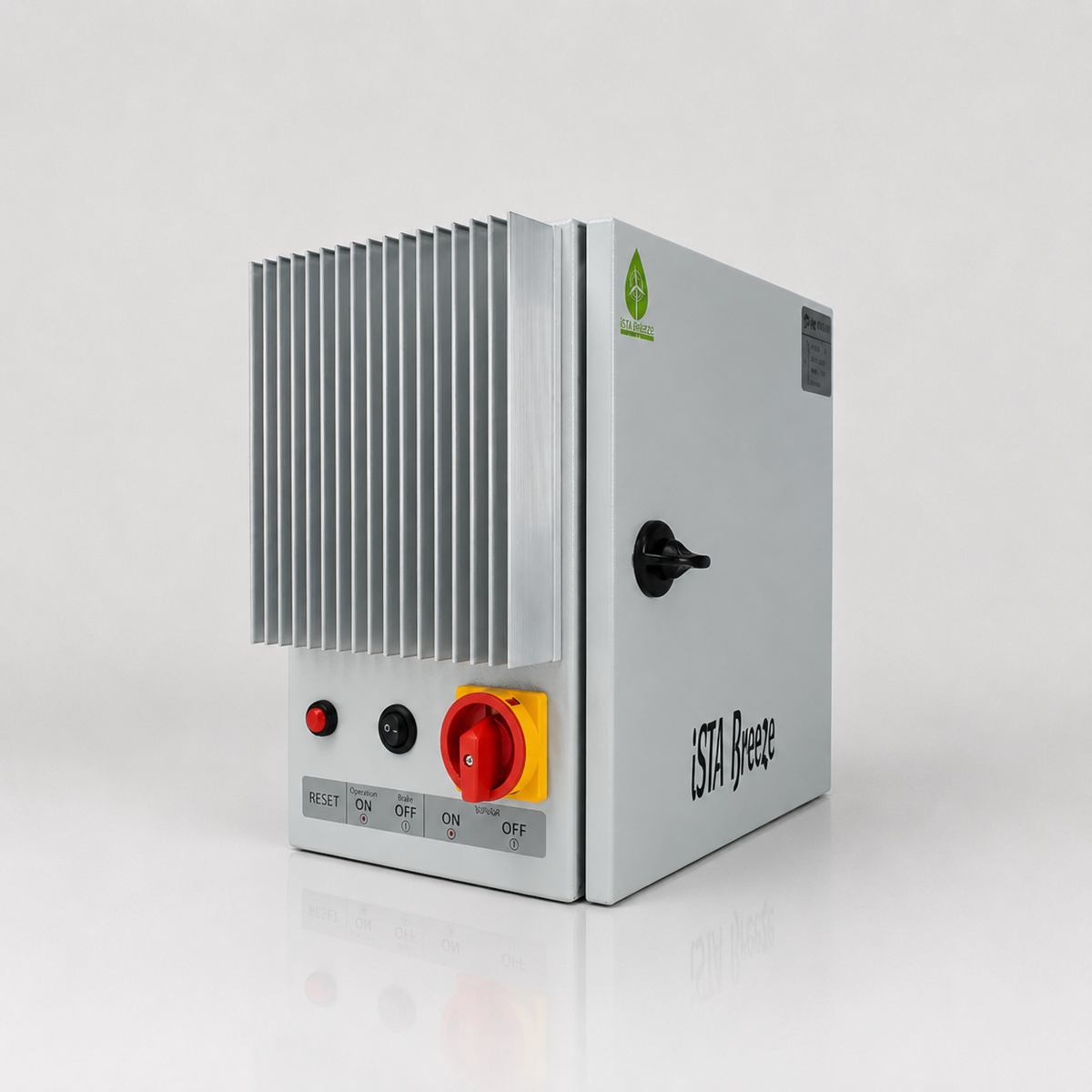

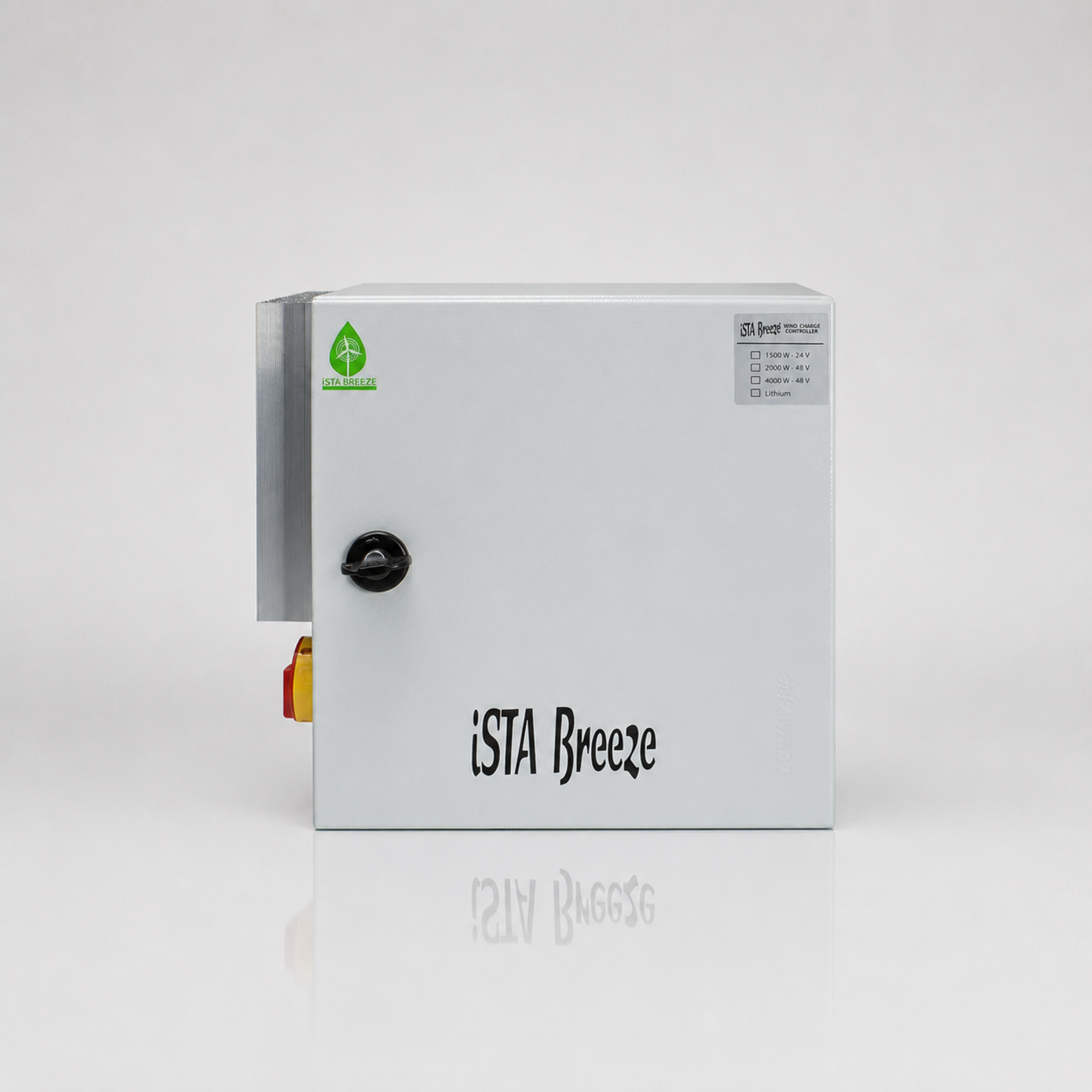

The iSTA-BREEZE® I/HCC Pro Charge Controller is designed to safely and efficiently manage battery charging from compatible wind generators. Built for professional wind energy systems, this controller helps protect the battery, turbine and overall system through intelligent monitoring, controlled braking and integrated safety functions.

This device is not a hybrid charge controller, but it can be integrated into a properly configured hybrid energy system when used with a suitable battery setup and compatible system components. A separate solar charge controller and wind charge controller may be connected in parallel to the same battery bank when correctly designed and installed.


Designed for Safe and Efficient Battery Charging

The I/HCC Pro controller monitors system voltage and manages the wind generator to prevent excessive charging. When the battery is full or the system reaches the defined voltage limit, the turbine is gently braked using an external dump load system.

This controlled braking process helps avoid immediate turbine blocking, reduces stress on the generator and supports a longer service life for the stator and system components.






Charge Controller Specifications

Nominal Battery Voltage
48VDC
24VDC
Max. Input Power from Wind Turbine
48VDC2.2 kW
24VDC2.2 kW
LCD Display Values
Ampere, watt, battery voltage, brake status and temperature
Charging Voltage
48VDC52.8 V
24VDC25.2 V
Max. Wind Charging Current
48VDC40 A
24VDC80 A

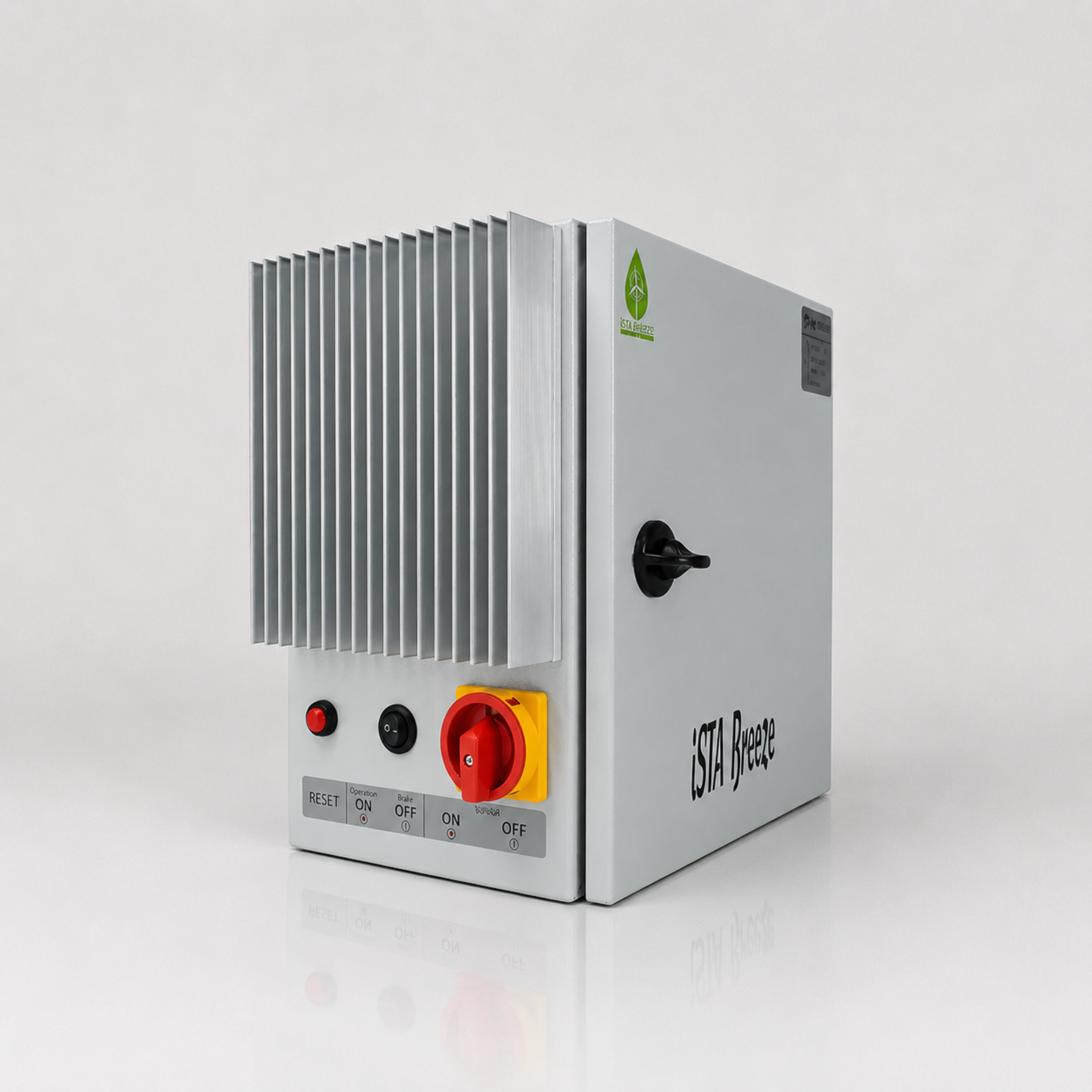

Generator On / Off Switch
After generator stop, press Mode 1 / Off to lock the generator safely. For active operation, press Mode 0 / On and then close the manual brake button.
Manual Brake Button
For manual brake, press Off mode. For operation, press On mode.
Reset Button
Deactivates when the generator is on automatic brake.
Minimum Battery Voltage
48VDC42 V
24VDC21 V
Automatic Overheating Brake
50°C braking / 45°C brake-out
Automatic Stop Charging Brake
48VDC58 V +1
24VDC28.8 V +1
Wind Turbine Recharge Voltage
48VDC55 V +1
24VDC26.9 V +1
Cooling
External aluminium cooling fins
Cable Termination
Battery: 10 mm / Wind turbine and dump load: 6 mm / Ground: 4 mm
Protection Class
IP20, indoor area

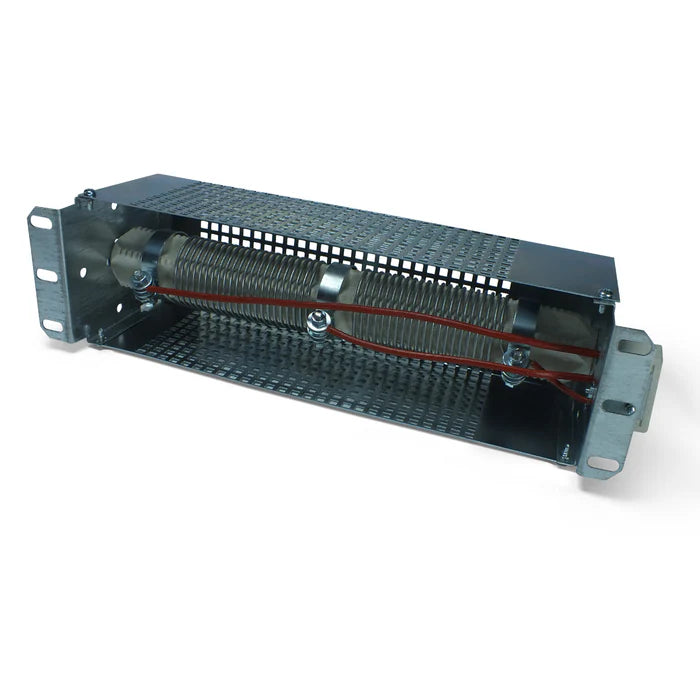

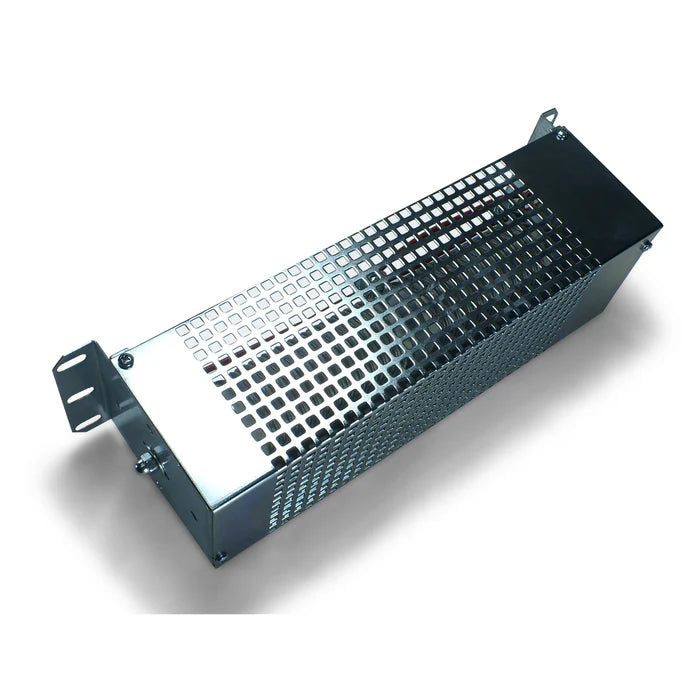

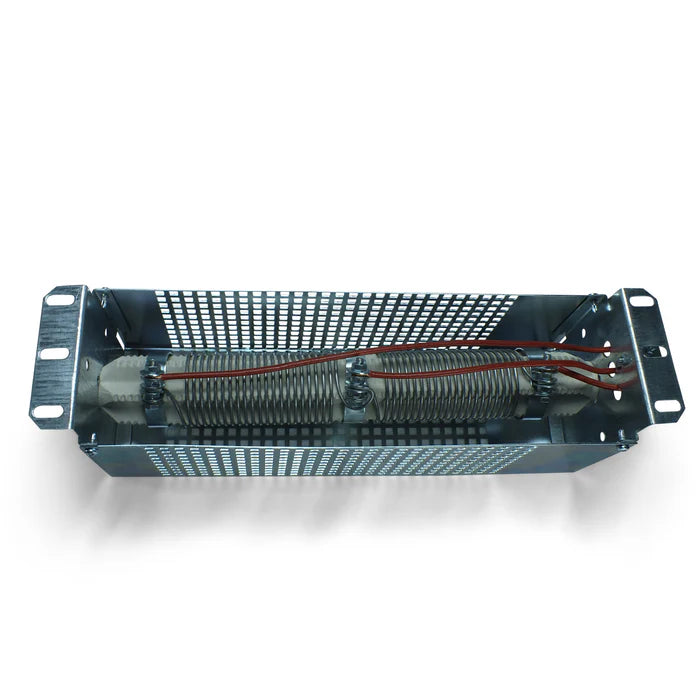

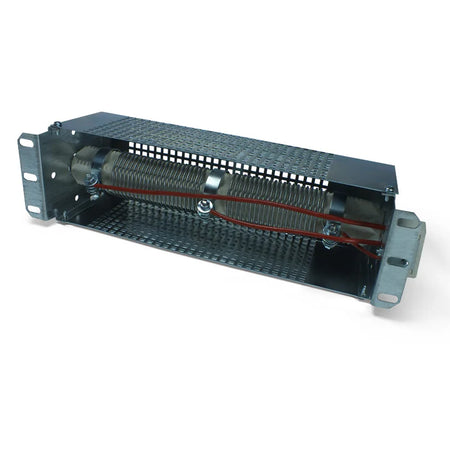

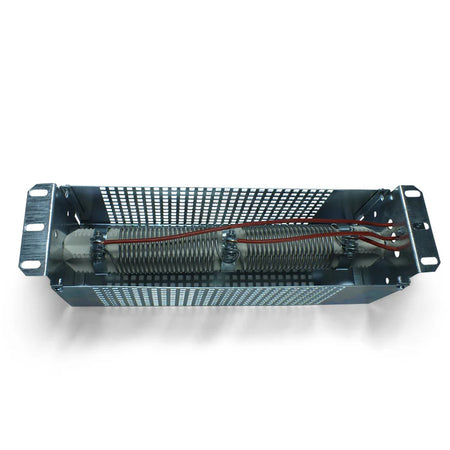

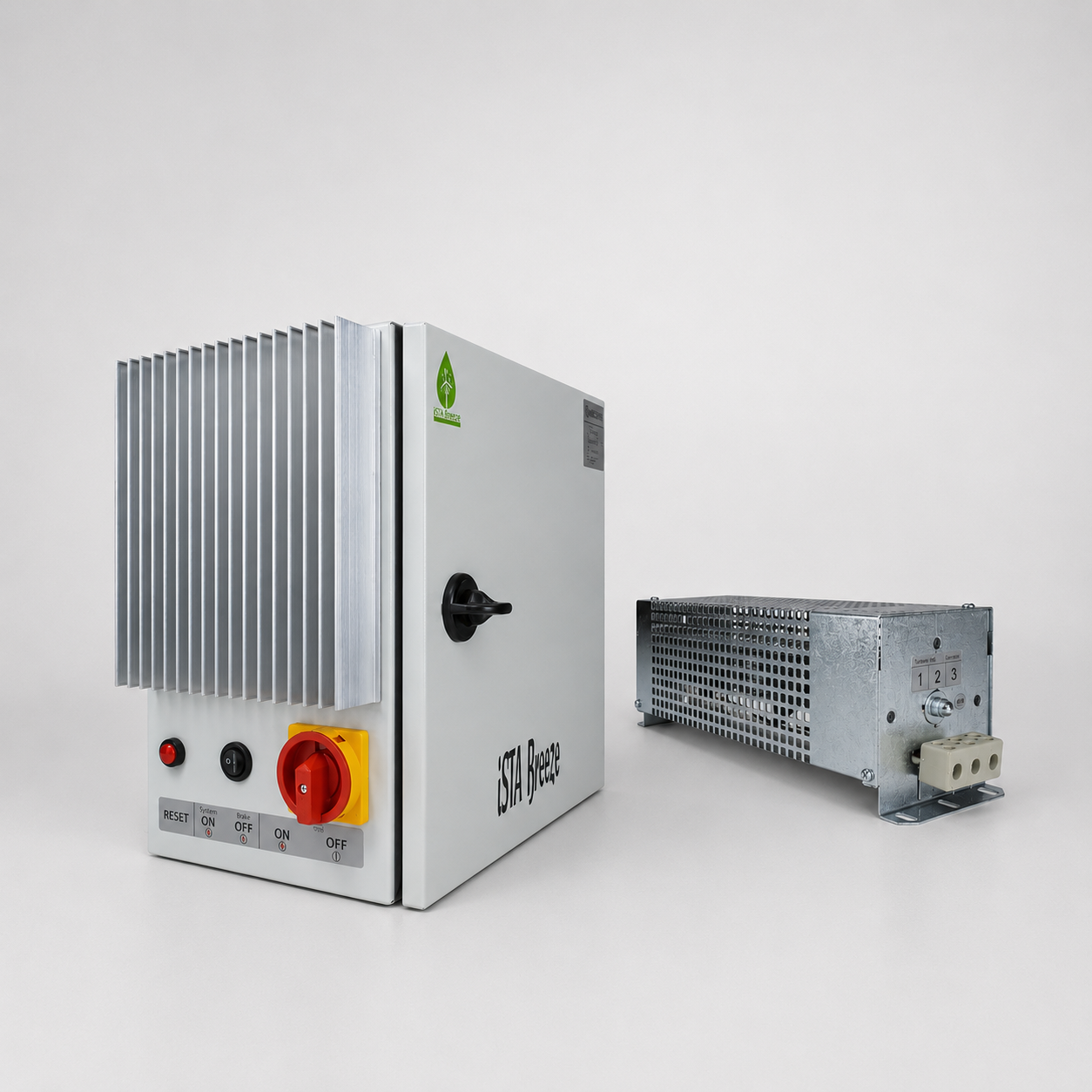

Dump Load
2 kW braking resistor
Operational Temperature
-20°C to +45°C / 35%–85% RH
Temperature Compensation
-4 mV/°C/2V, -35°C to +80°C, accuracy ±1°C
Size
30 × 30 × 20 cm
Weight
7 kg
Recommended Battery Type
Acid and gel batteries. Can be redesigned according to lithium batteries.
This charge controller includes automatic braking and dump load protection. For lithium battery systems, battery specifications should be checked before configuration.
