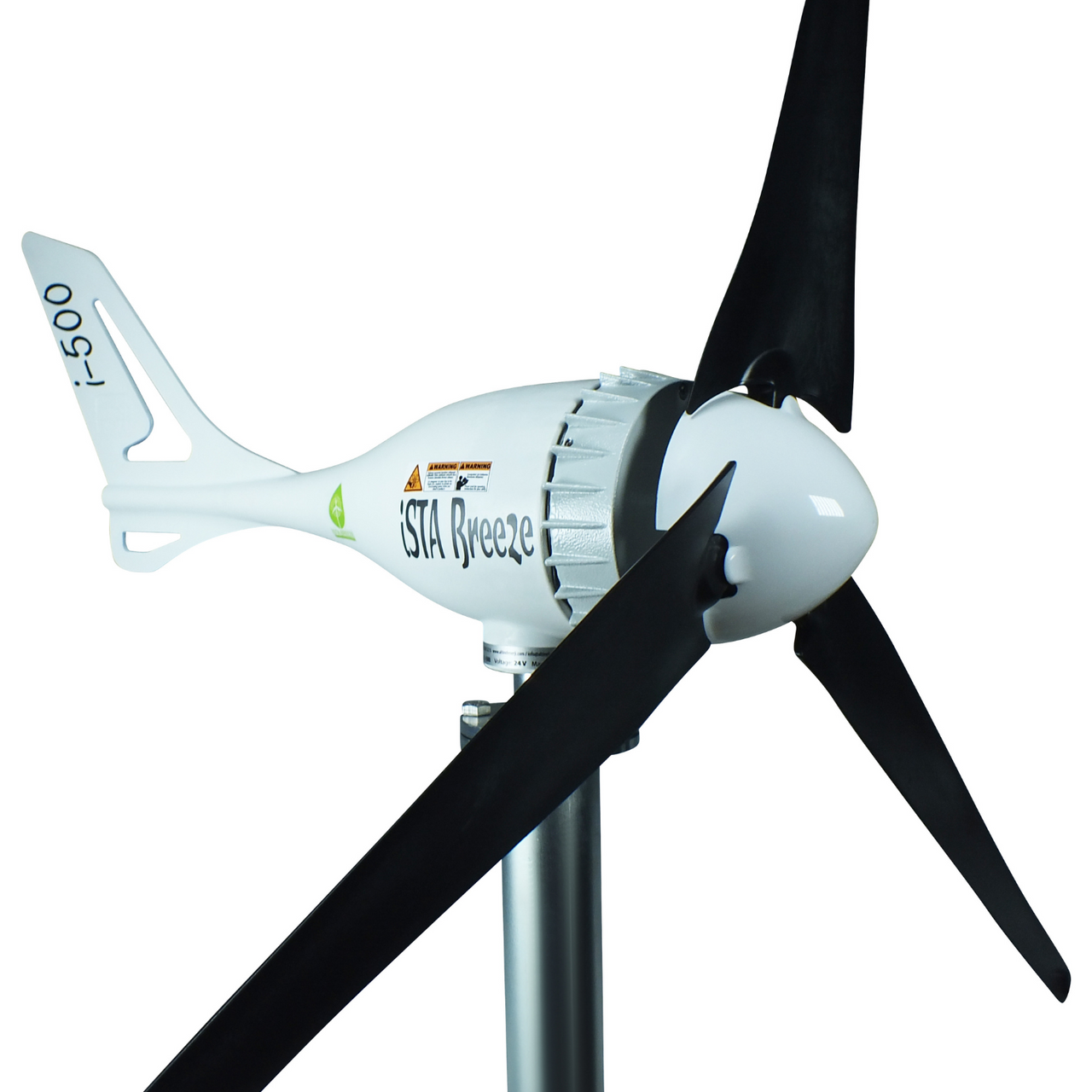

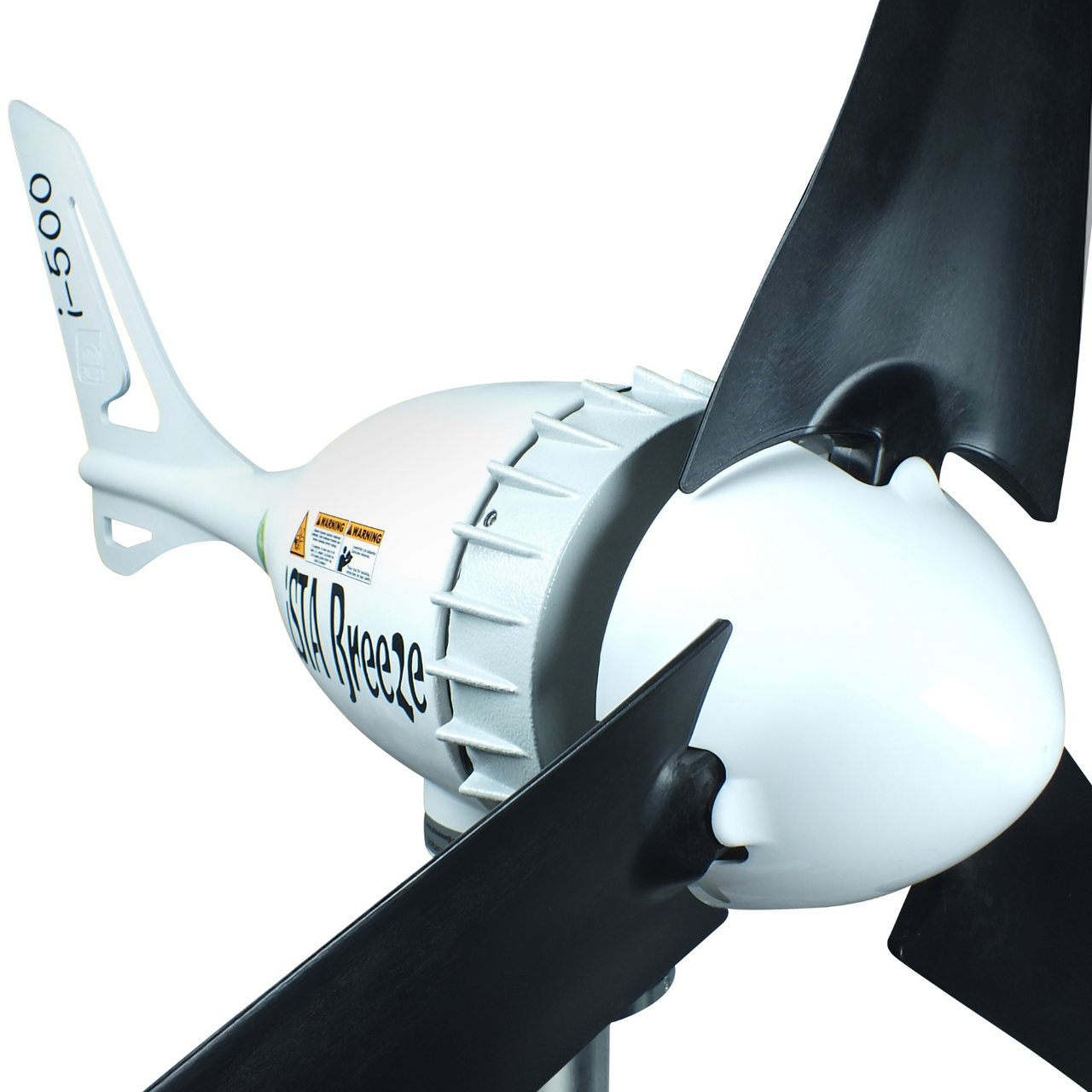

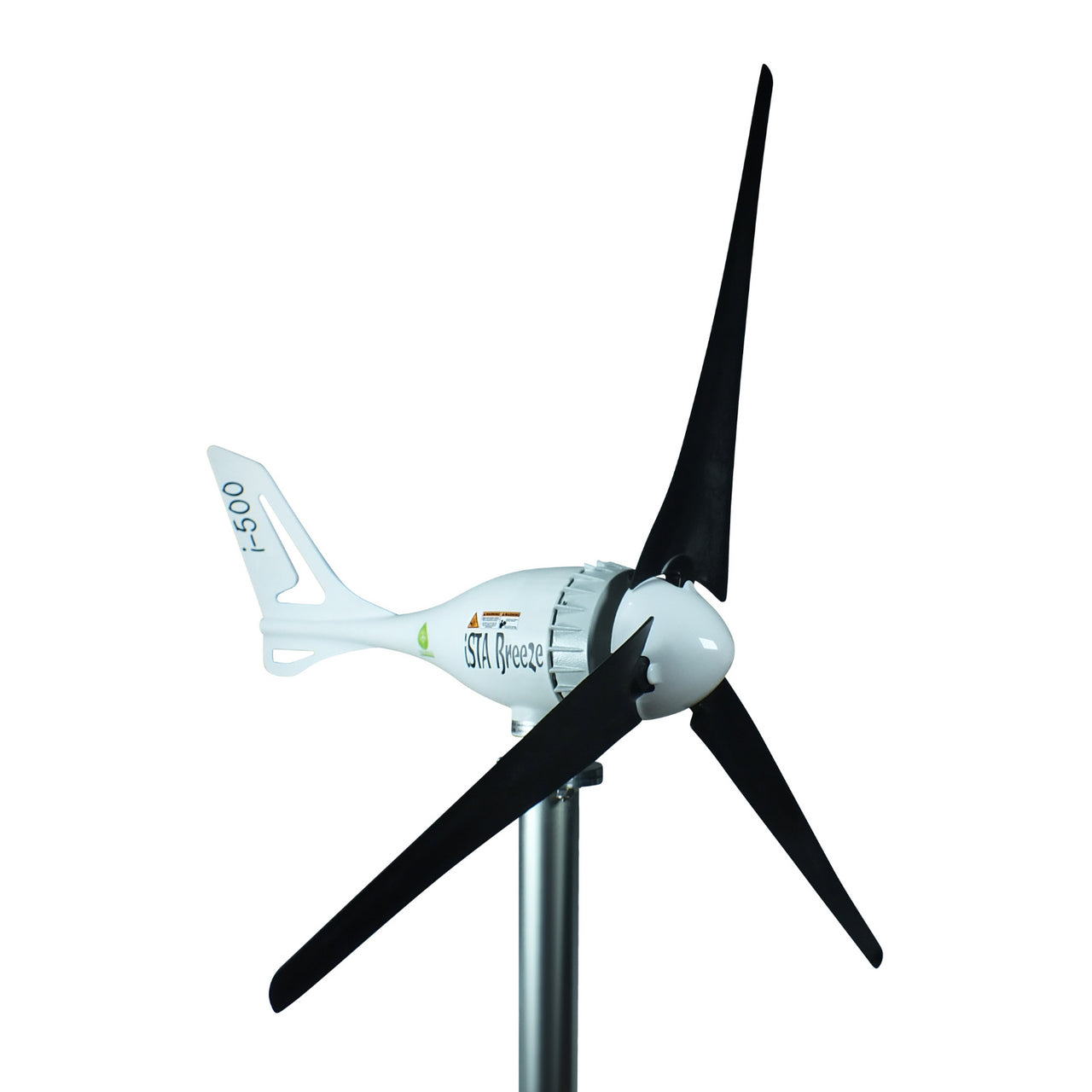

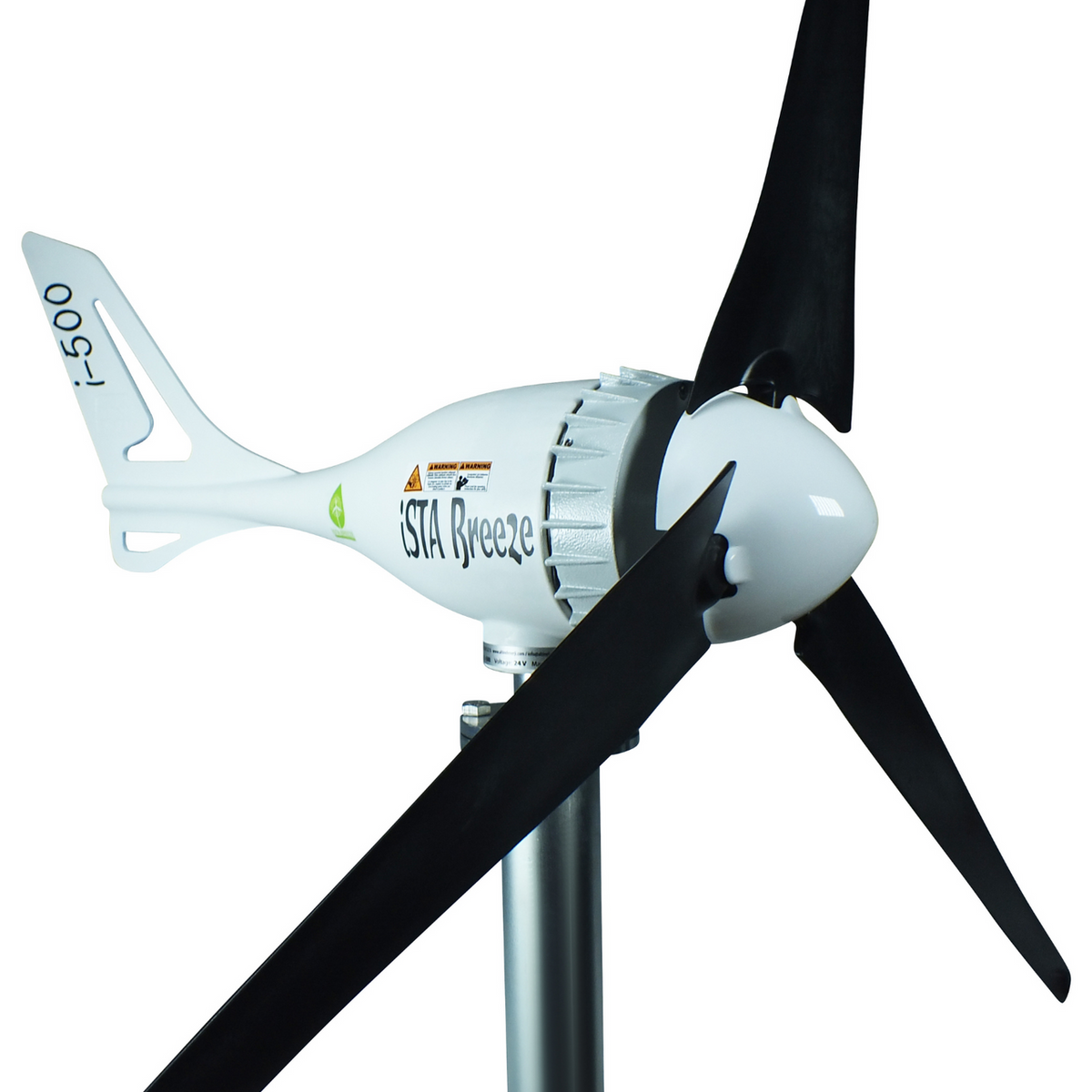

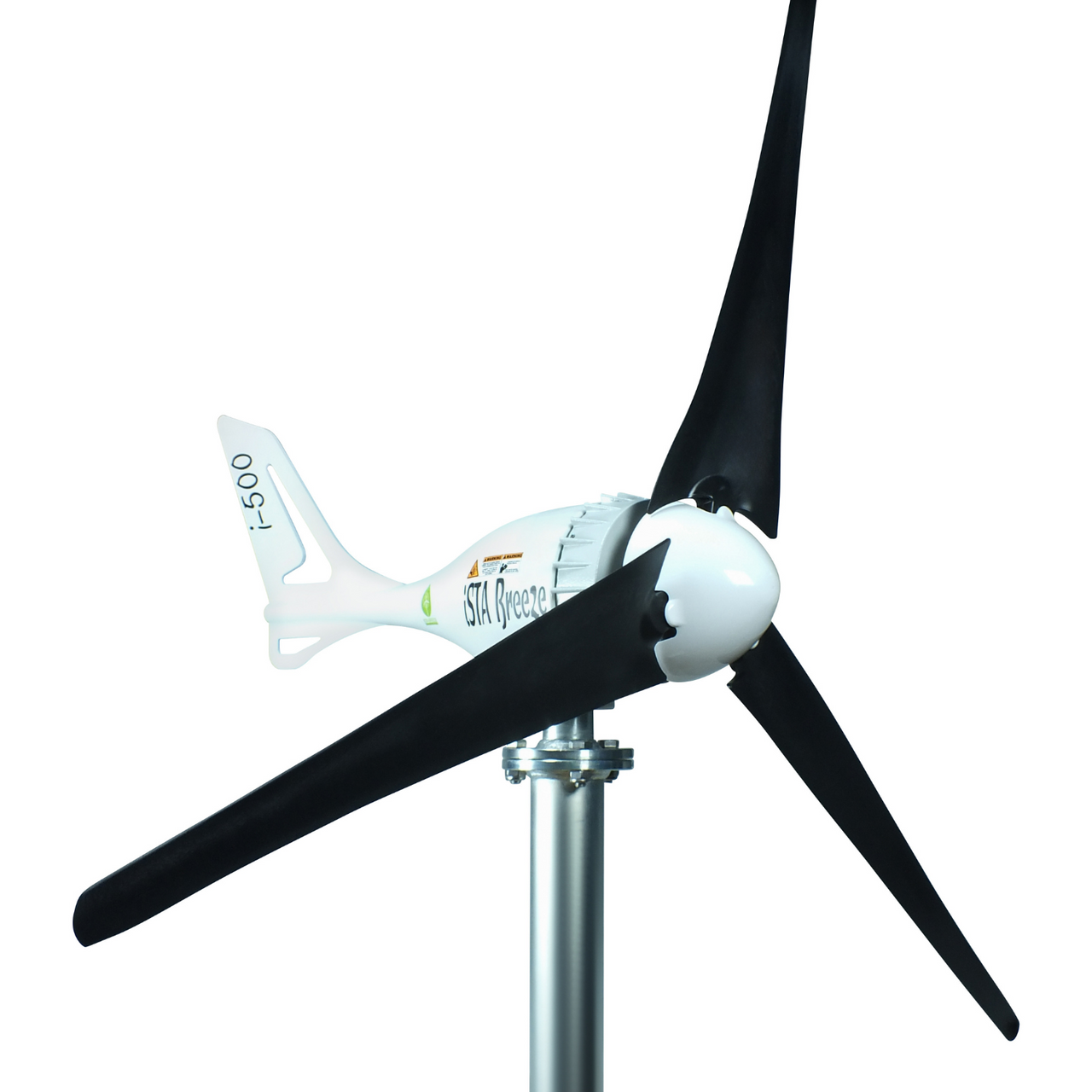

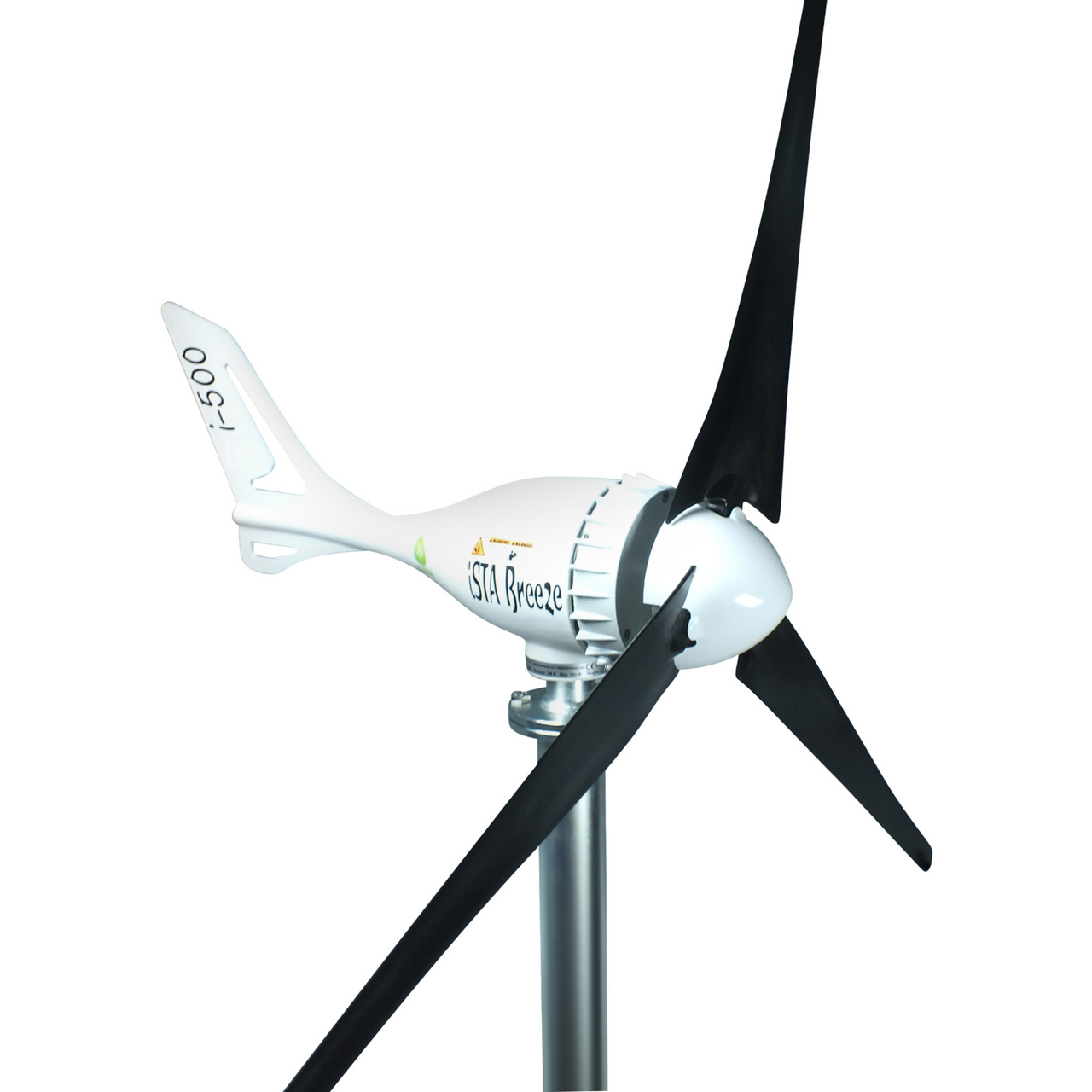

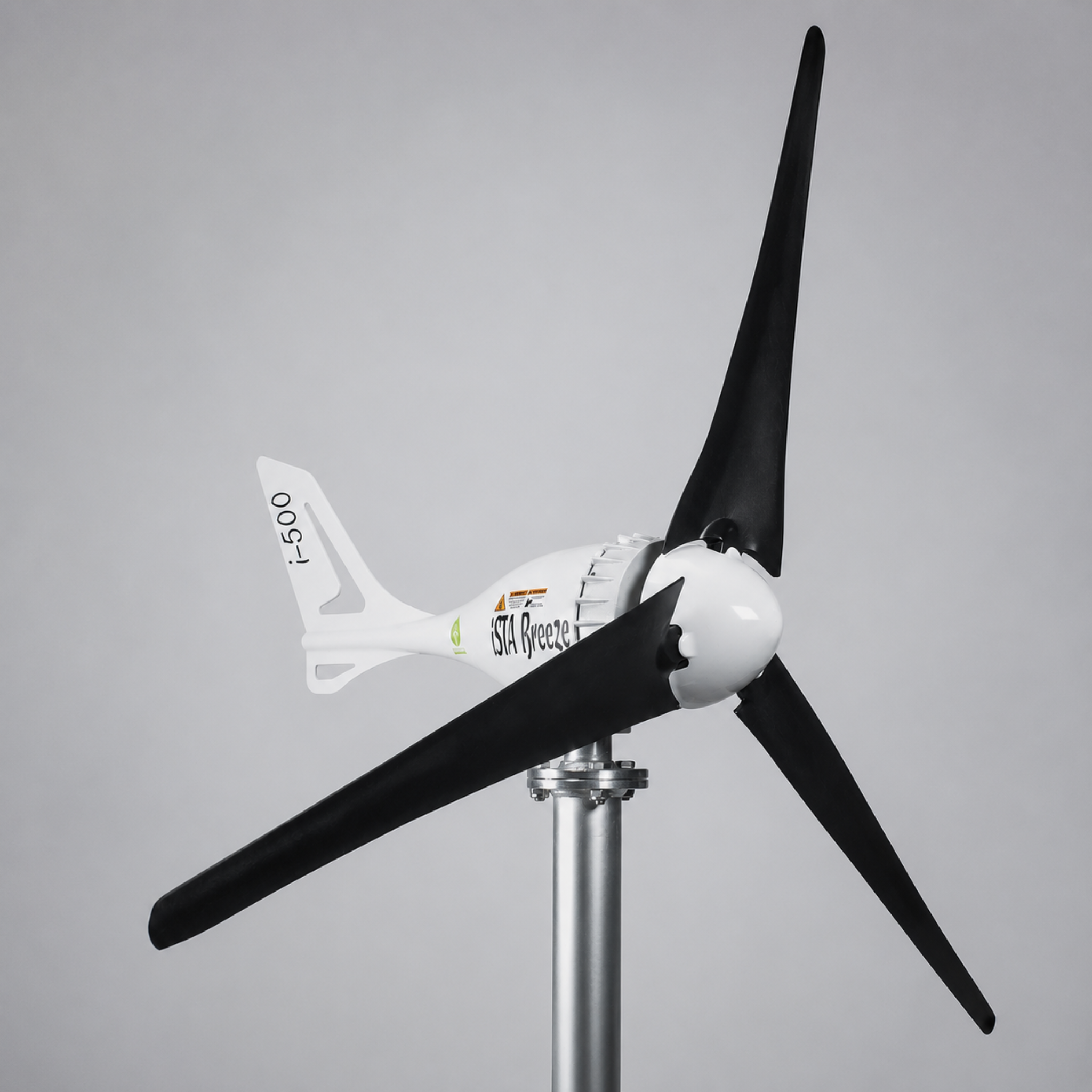

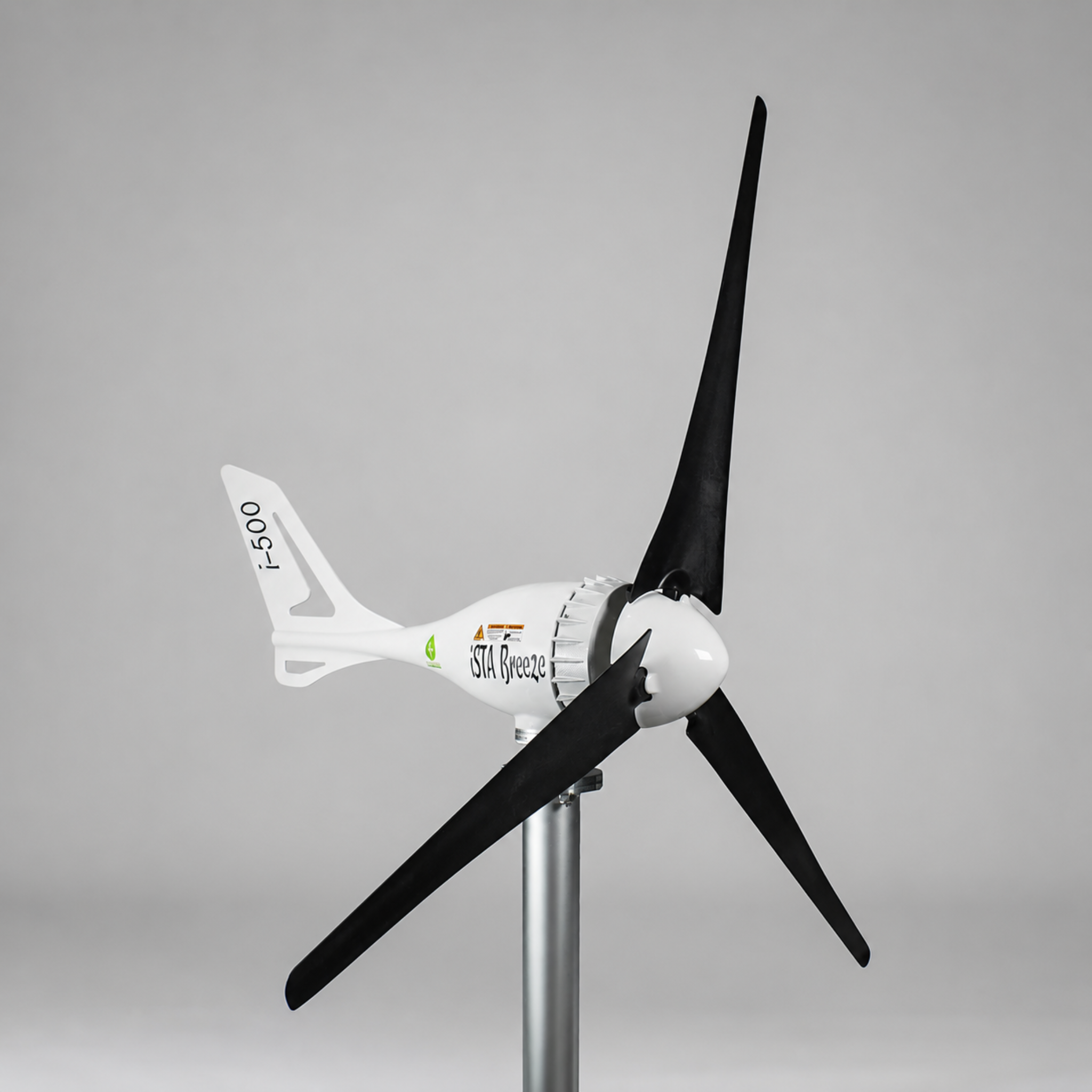

I-500 – 12V/24V Wind Turbine 500W Generator

In stock
Regular price £180.00 inc. VAT
System Voltage

i-500 Wind Generator | 12V / 24V


Premium Wind Power, Refined Engineering

The i-500 is designed for reliable wind energy generation with a clean, durable and efficiency-focused construction. Developed through continuous technical optimisation, this wind generator offers a strong balance of performance, longevity and low-maintenance operation.

Built with carefully selected generator components, the i-500 converts wind into usable electrical energy and supports battery charging through a suitable wind charge controller. Its robust design makes it a dependable solution for customers looking for a long-lasting wind turbine system with professional-grade engineering.


Engineered for Long Service Life

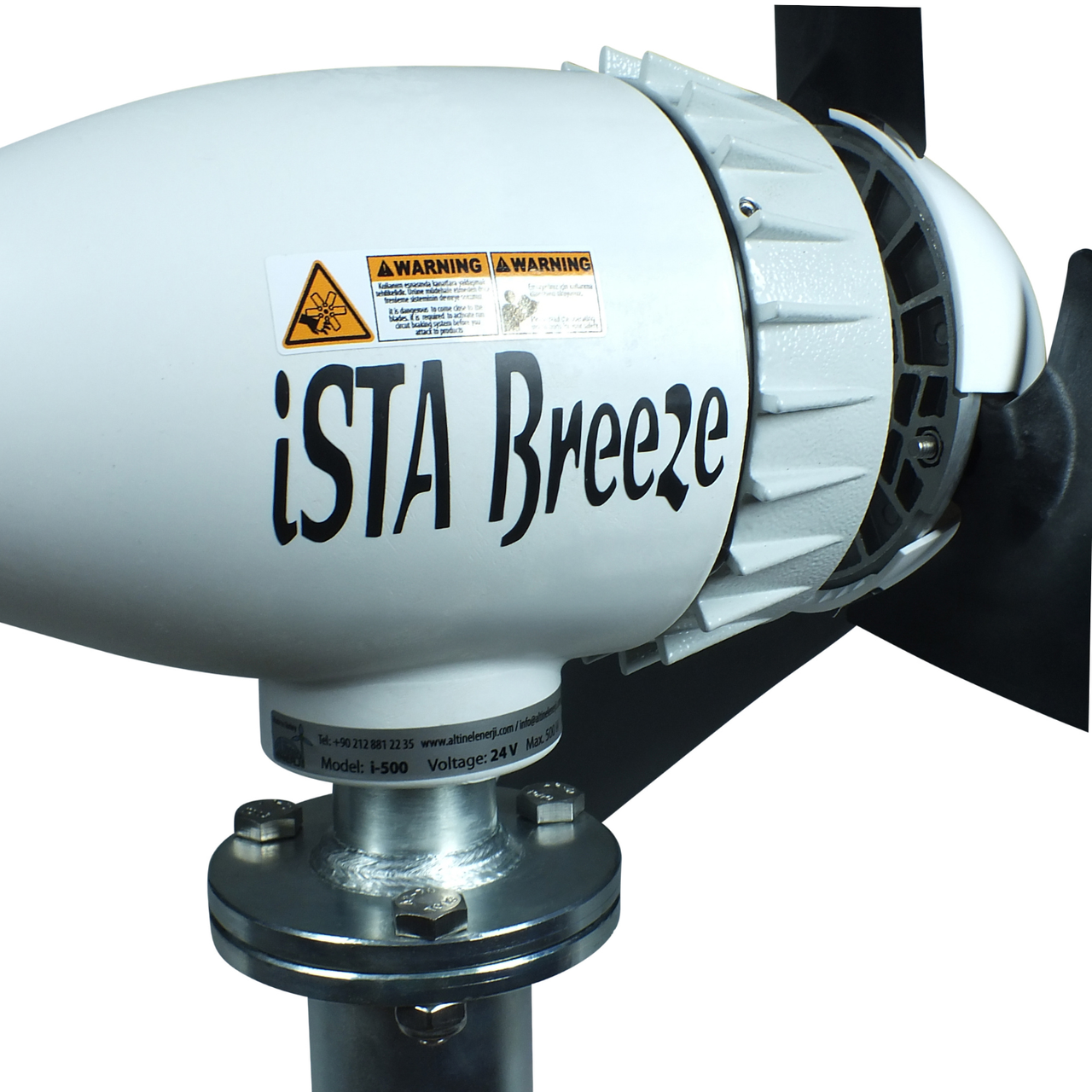

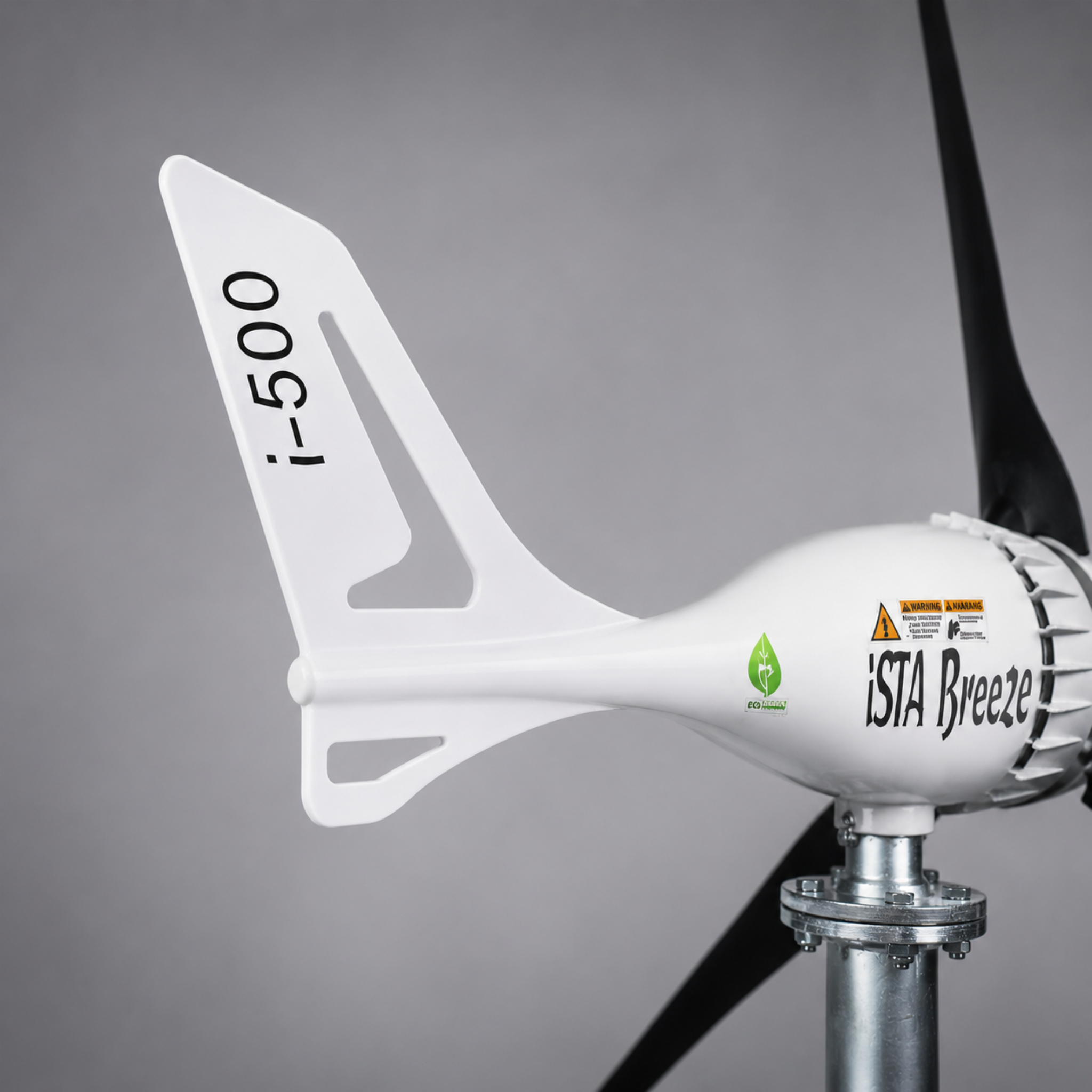

The generator housing is made from newly developed aluminium, allowing effective heat dissipation and helping reduce thermal load during operation. This supports stable performance and contributes to a longer service life, even under higher ambient temperature conditions.

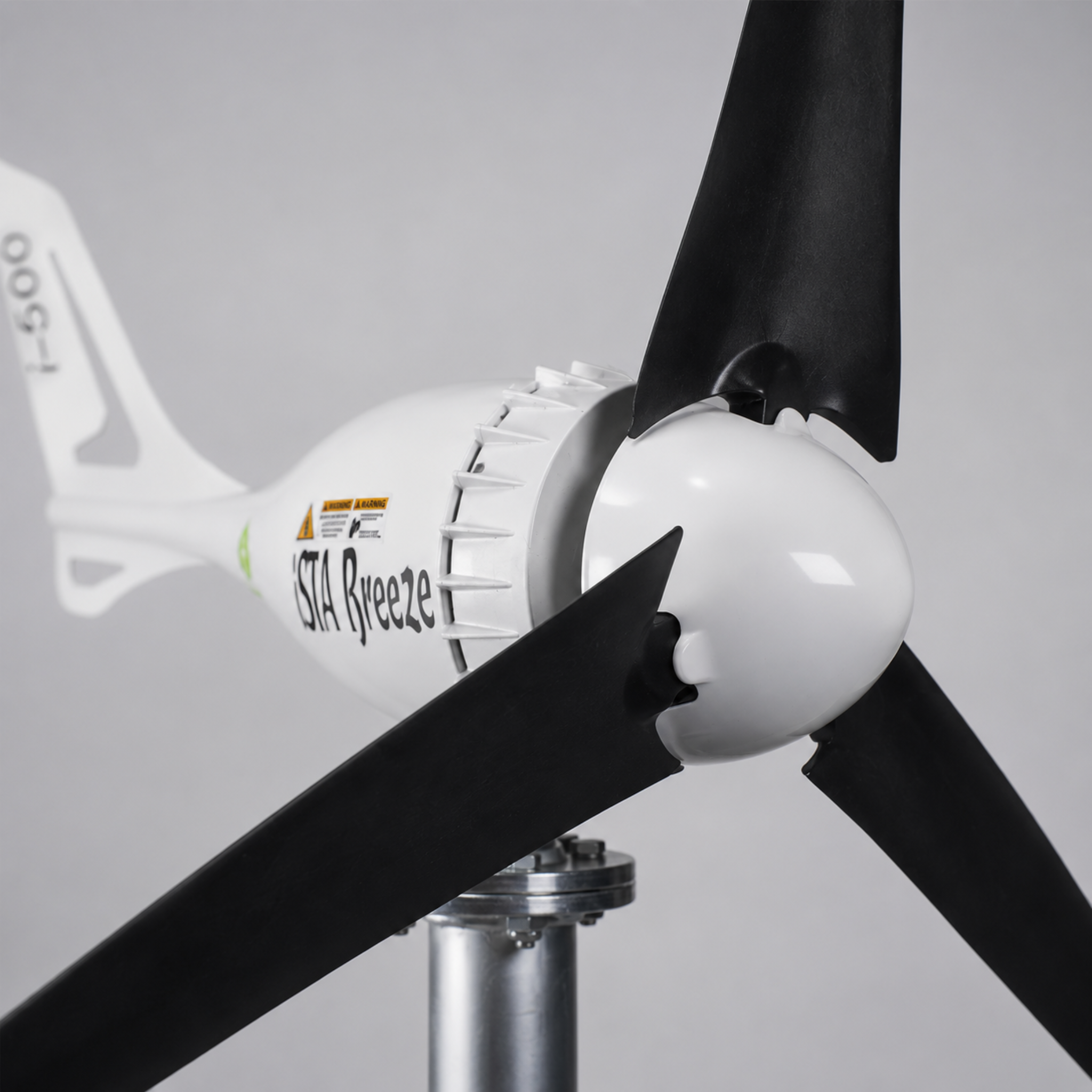

The generator shaft runs on two encapsulated, permanently lubricated deep-groove ball bearings made from stainless steel. A special low-friction sealing washer in the front bearing helps protect the internal components against moisture and dust ingress, improving durability and reducing maintenance requirements.





Technical Datasheet

IstaBreeze i-500W 12V/24V Wind Turbine

Compact wind turbine designed for 12V and 24V battery-based wind energy systems.

Maximum Power 500 W
Rated Power 420 W
Rotor Diameter 103 cm
Start Wind Speed 3 m/s

Wind Turbine Specifications

Current
40 A at 12 V / 20 A at 24 V
Generator Body
Aluminium
Body Material
Composite
Maximum Power
500 W
Rated Power
420 W
Voltage
12 V AC / 24 V AC
Package Dimensions
70 × 30 × 20 cm / 6 kg

Wind Speed Data

Initial Wind Speed
3 m/s
Maximum Wind Speed
15–16 m/s

Blade Specifications

Blade Material
Composite or Carbon
Blade Length
50 cm
Rotor Diameter
103 cm
Noise Level
40 dB
Blade Weight
190 g
Blade Width
12.5 cm

Required Equipment

Battery Group
Suitable battery group: min. 1800W – max. 2400W
For safe and efficient operation, this wind turbine should be used with a compatible charge controller and a suitable battery system.
