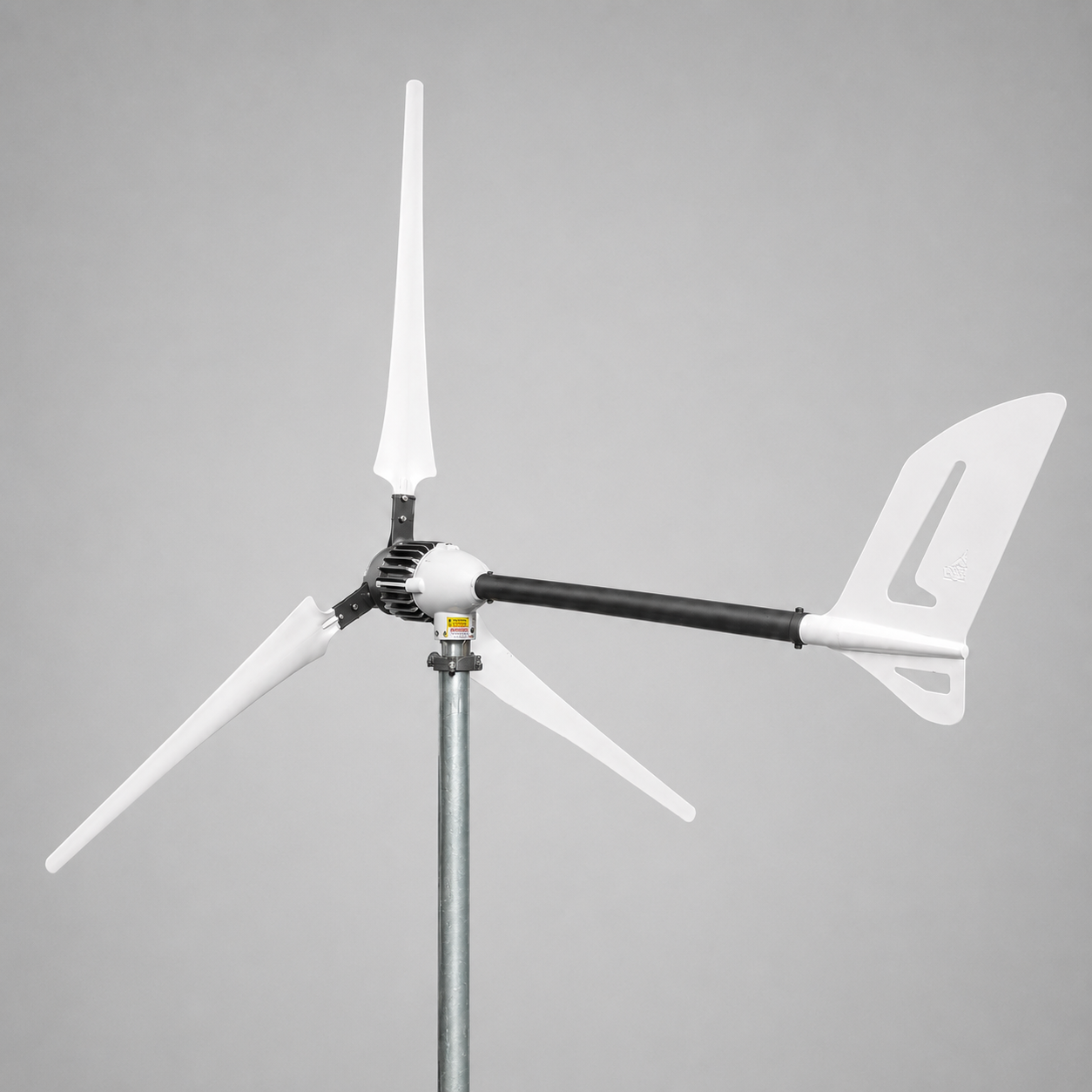

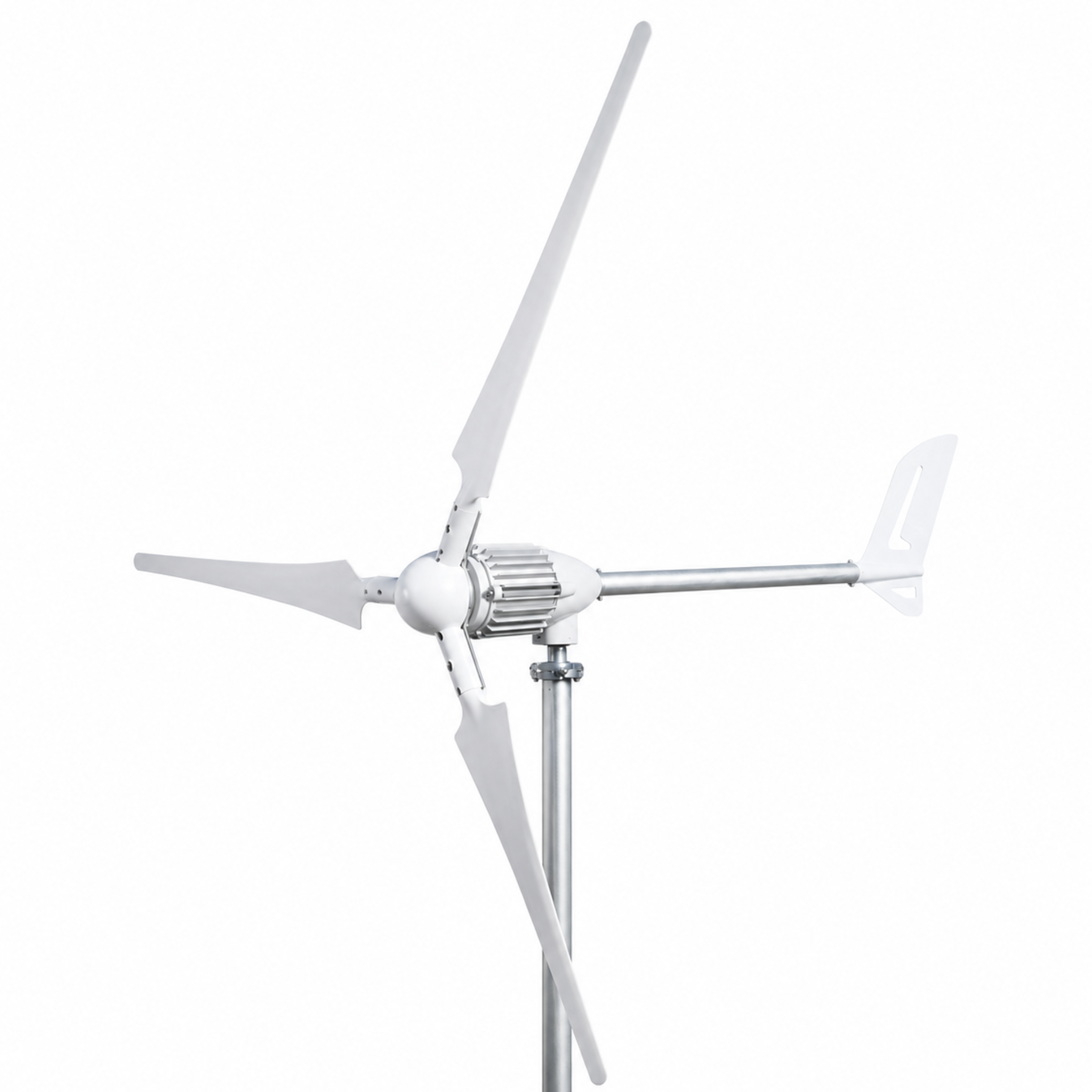

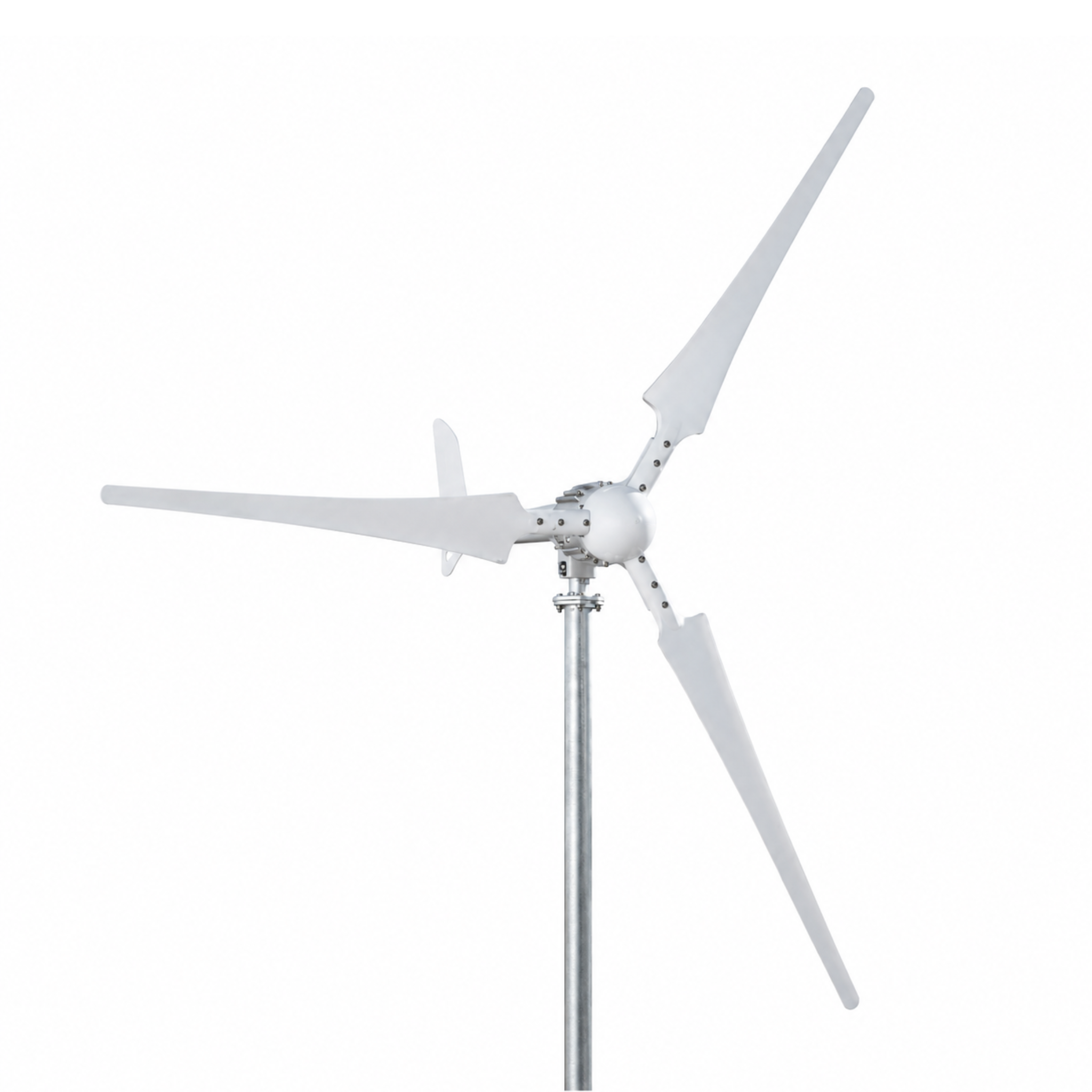

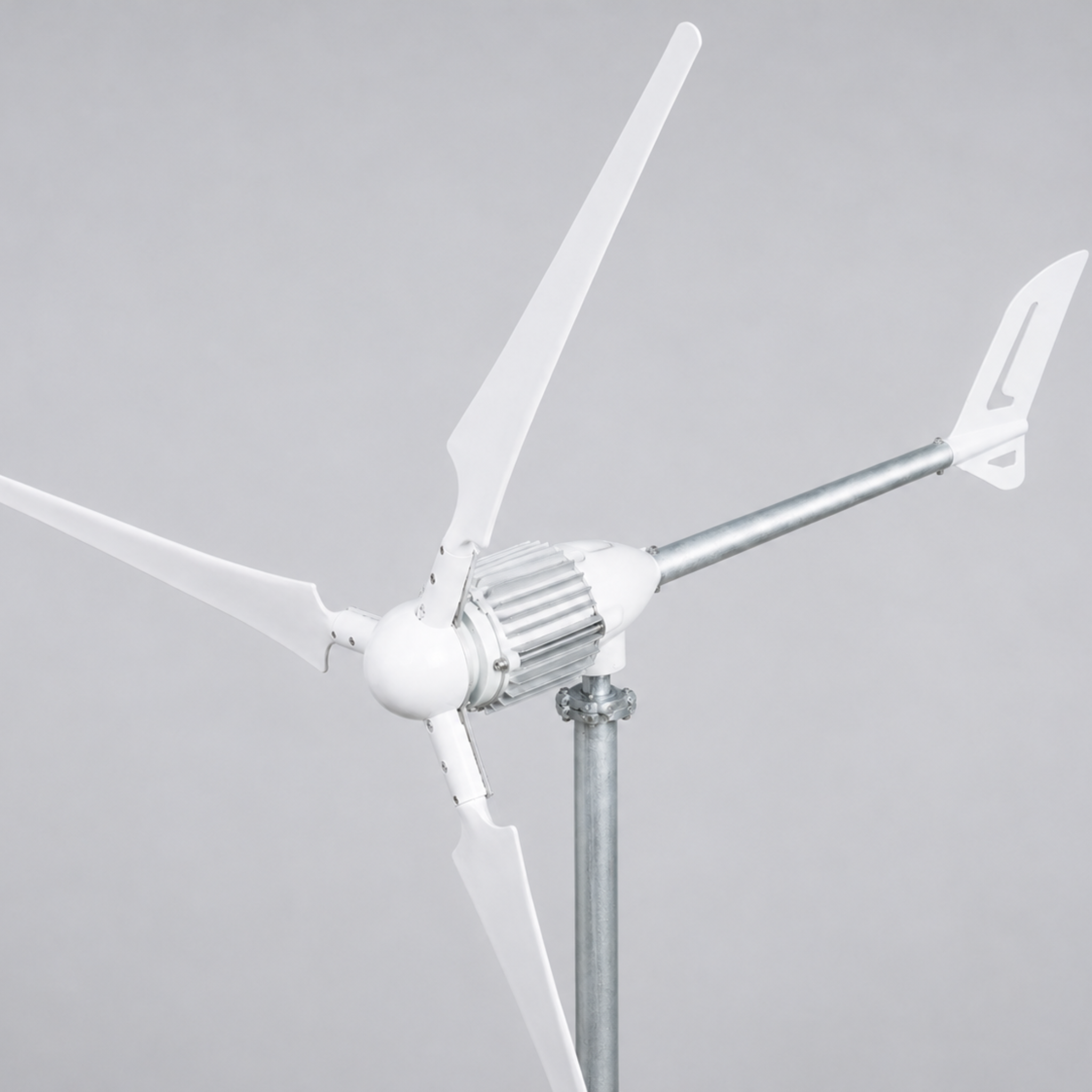

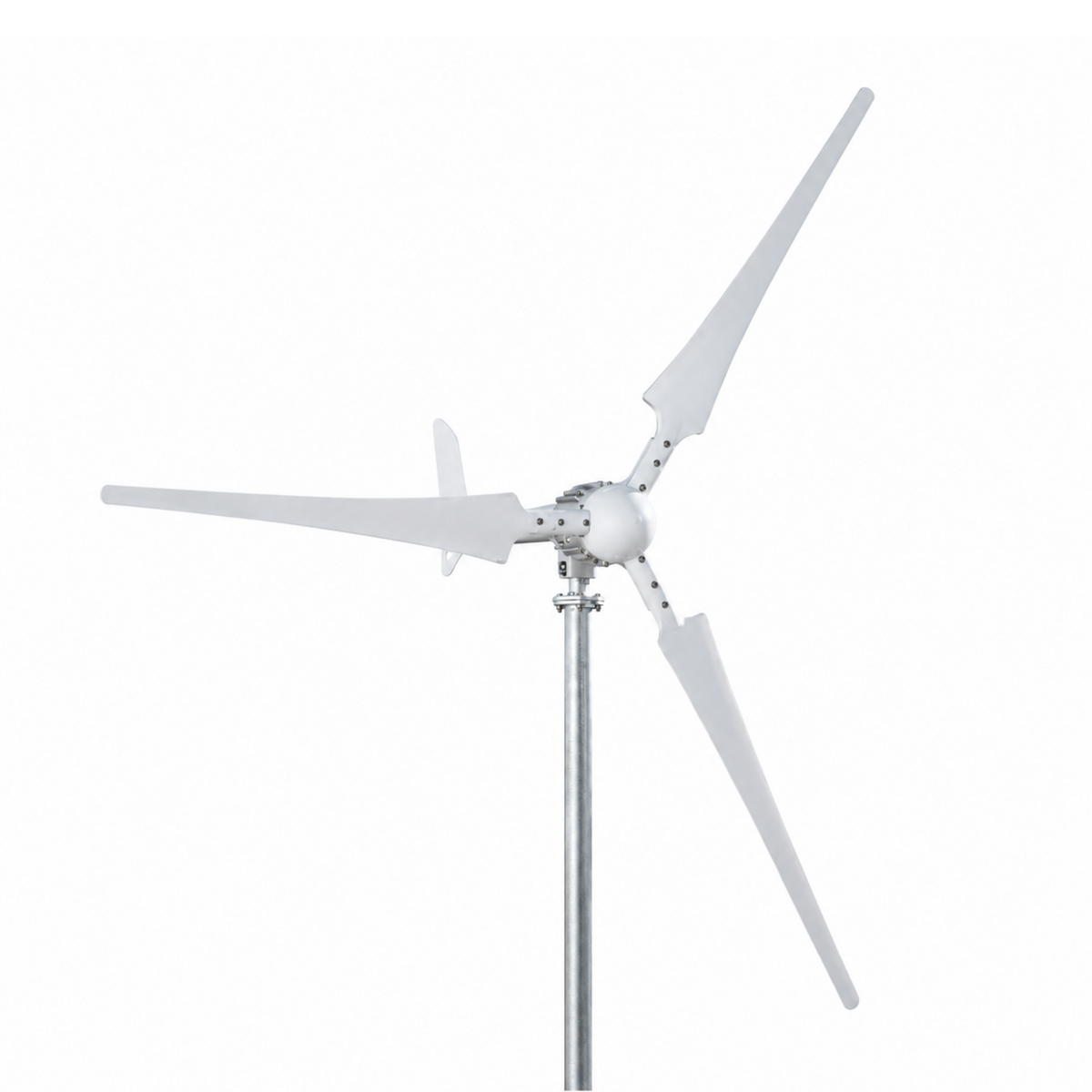

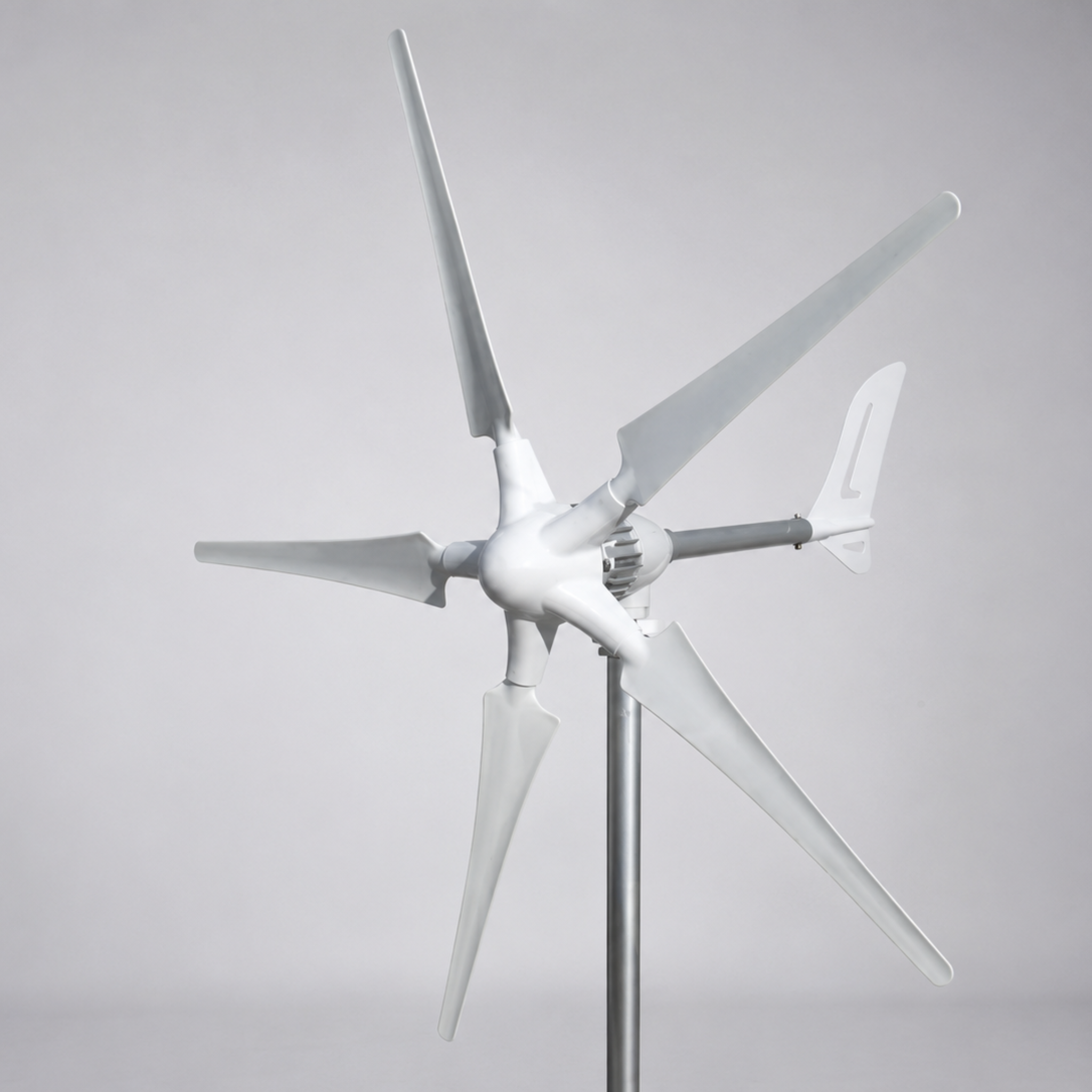

I-1000 – 24/48V Wind Turbine 1kW Generator Set

Out of stock
Regular price £399.00 inc. VAT

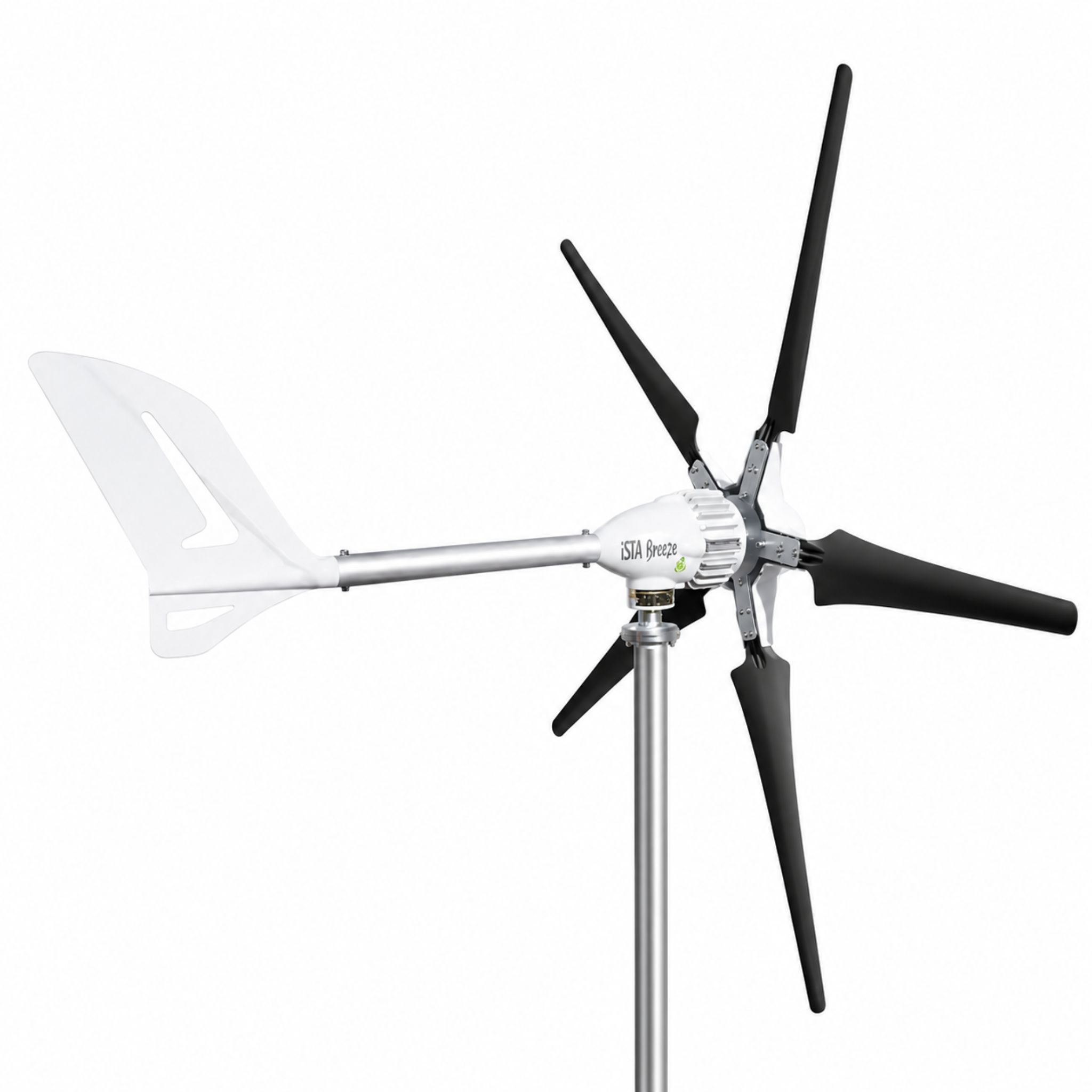

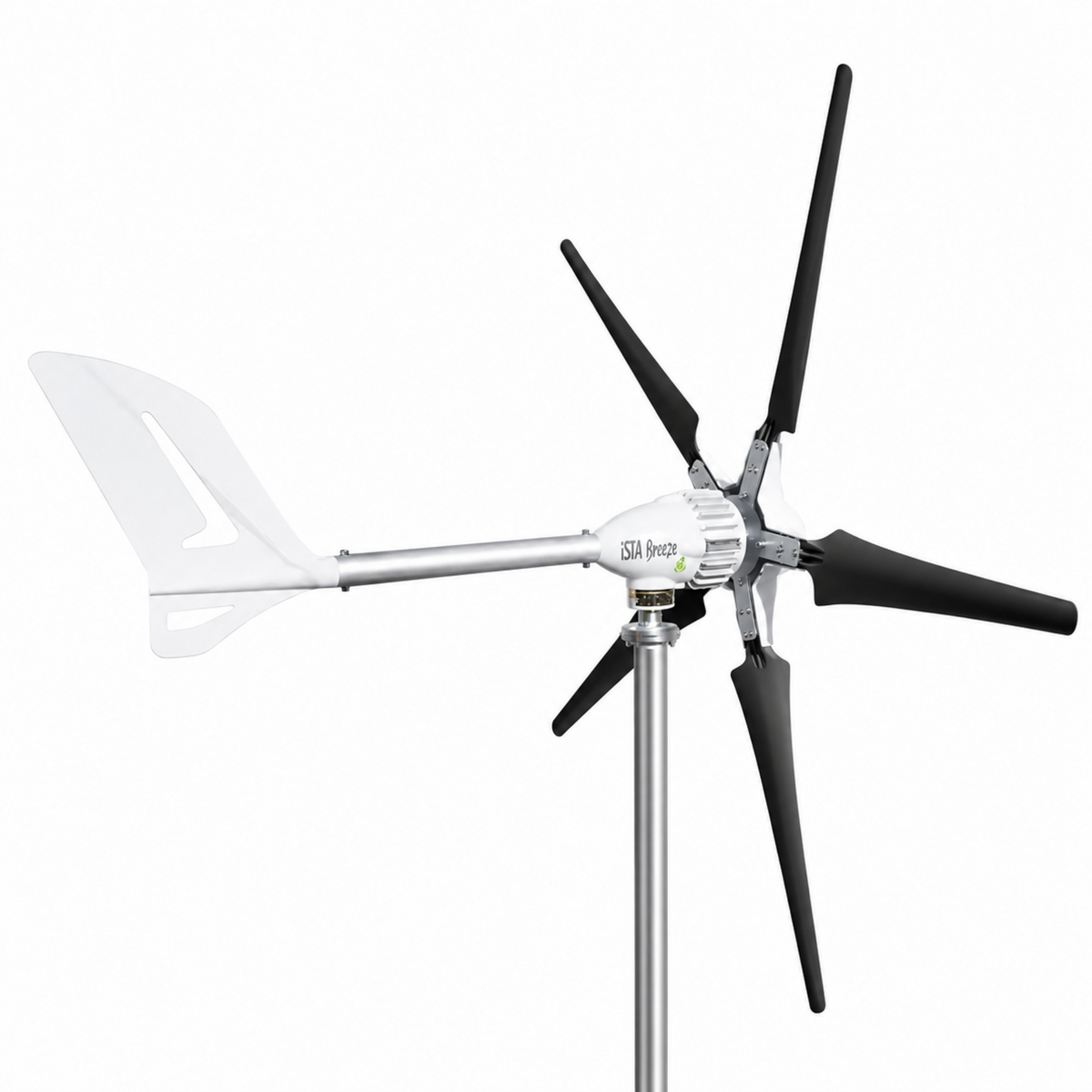

Rotor Configuration:
System Voltage

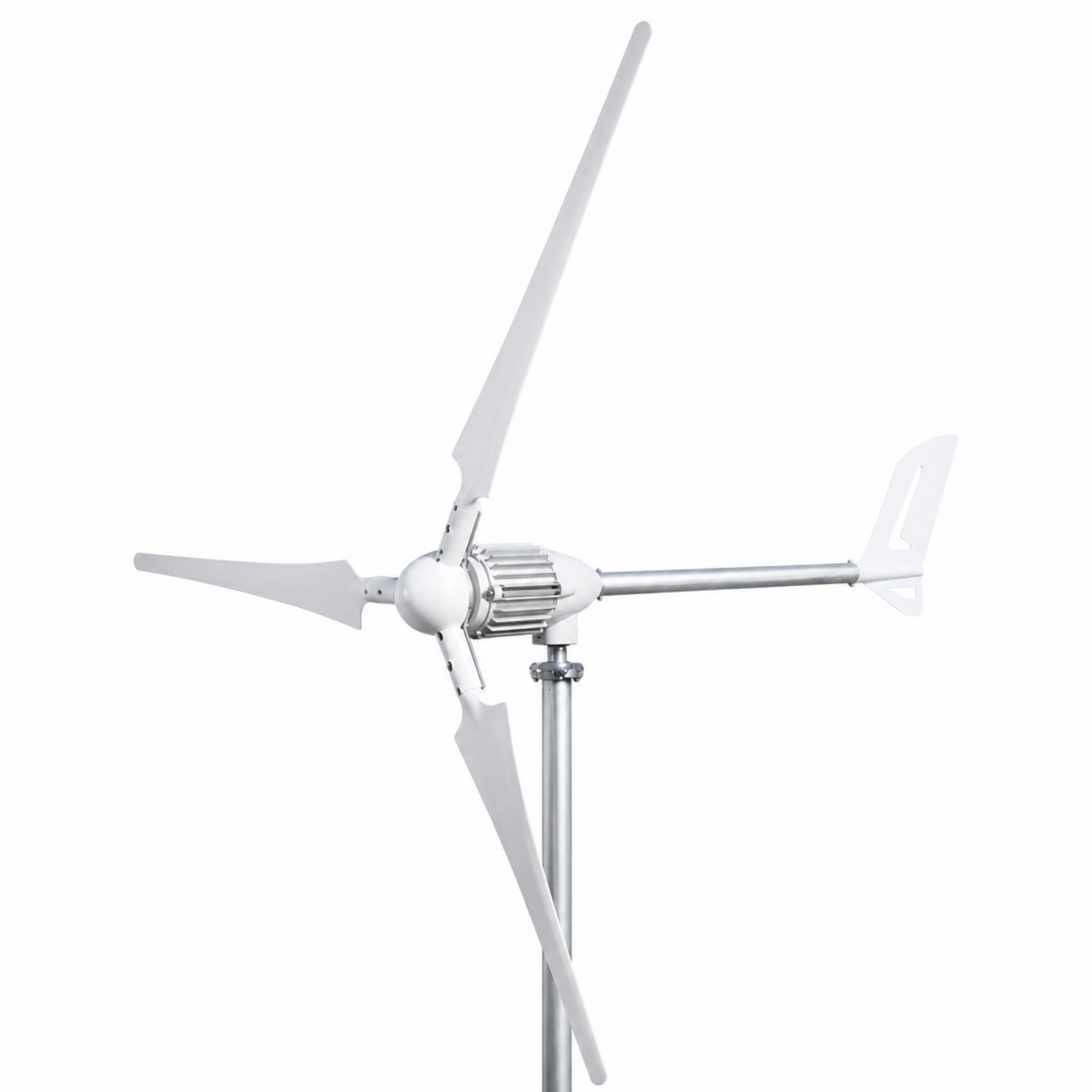

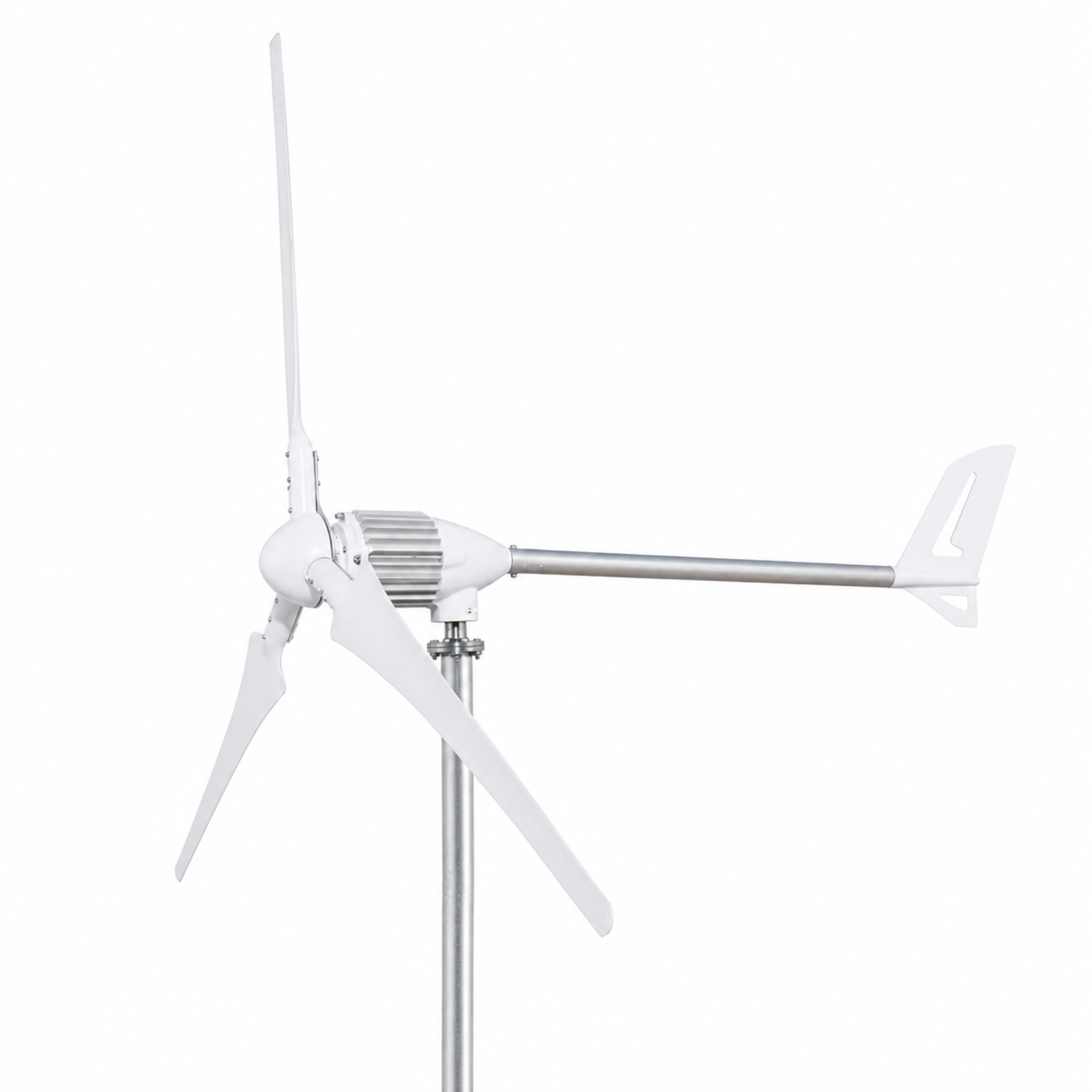

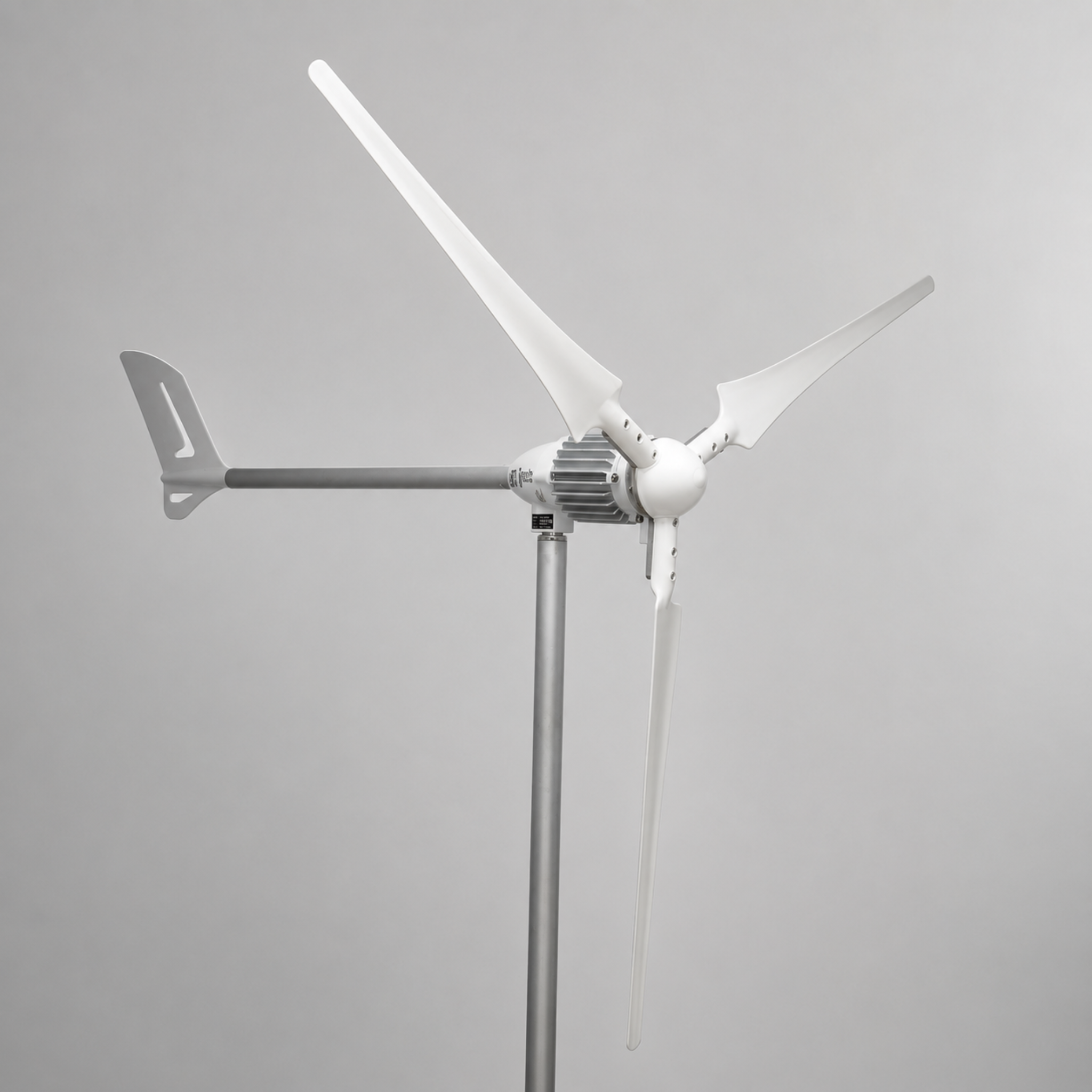

i-1000 Wind Generator | 1000W | 24V / 48V


Reliable Wind Power with Refined Generator Engineering

The i-1000 is a professional wind generator designed for efficient and dependable energy production in 24V or 48V systems. With a rated output of up to 1000W, this turbine offers a strong balance of performance, durability and low-maintenance operation.

Developed through continuous technical optimisation, the i-1000 is engineered to convert wind into usable electrical energy with stable performance and long-term reliability. Its robust generator design, aerodynamic rotor system and durable housing construction make it a strong choice for modern wind energy systems.


Built for Stable and Efficient Performance

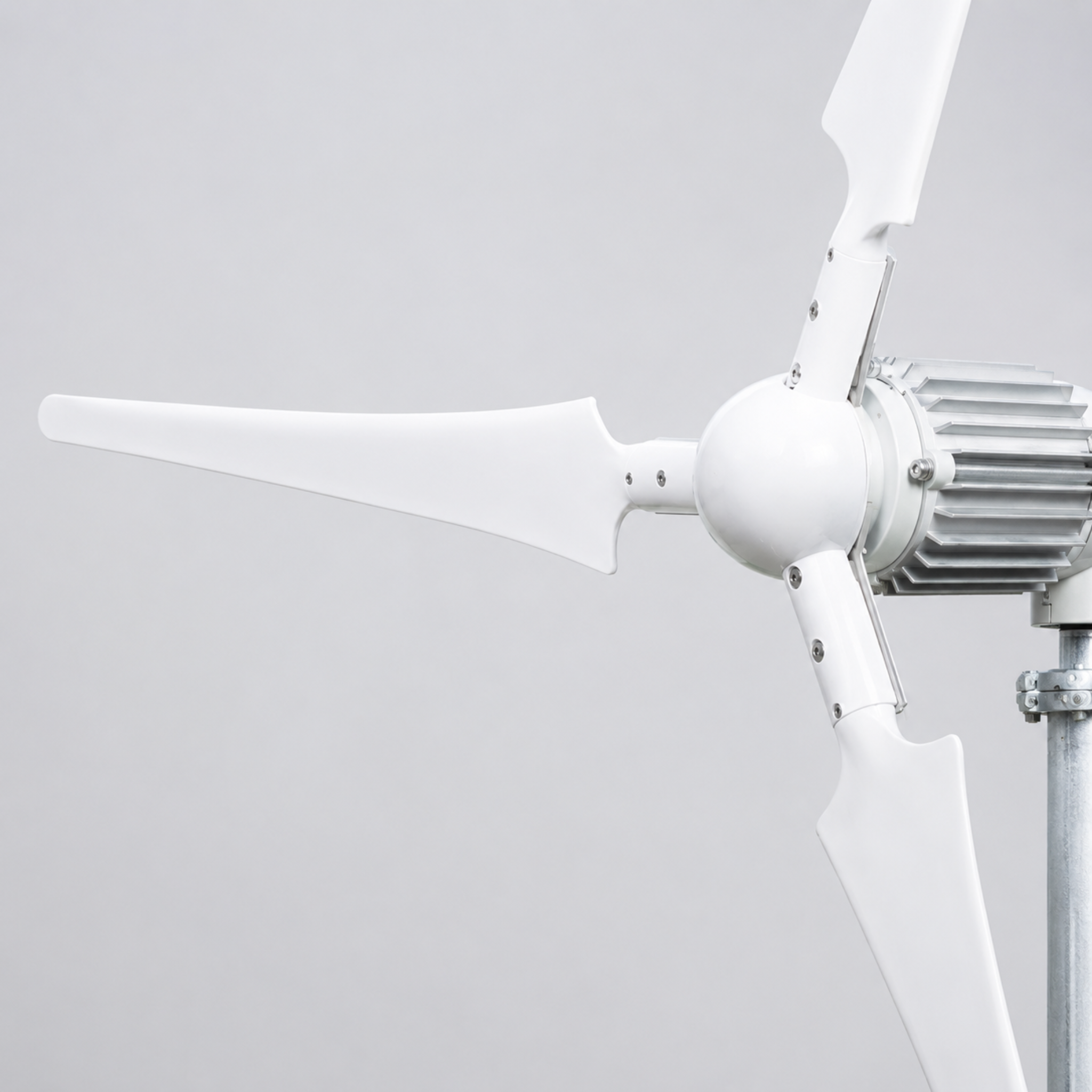

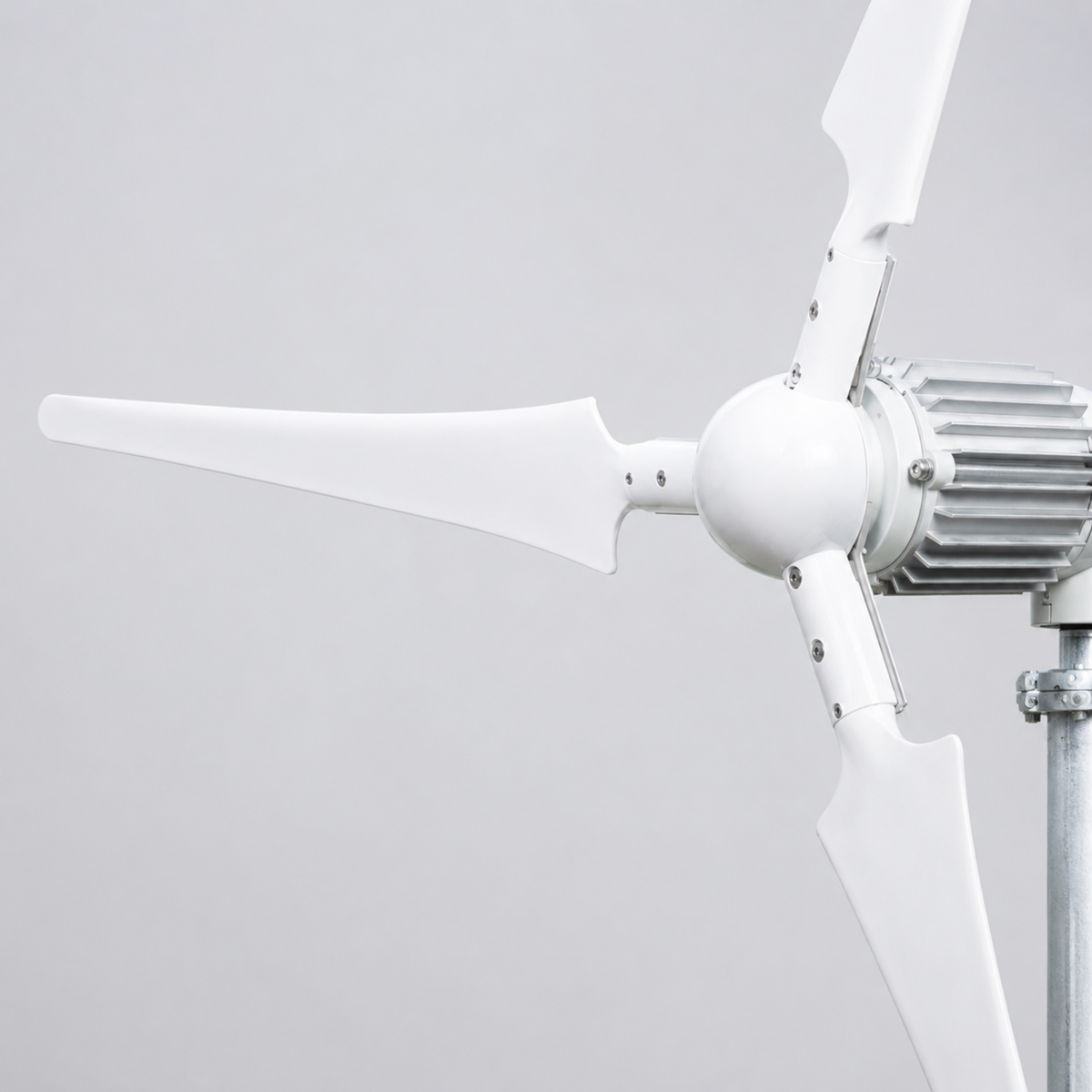

The i-1000 uses a 3-phase permanent magnet generator with strong NdFeB magnets, designed to support efficient energy conversion and reliable operation. The aerodynamic rotor blade design helps provide smooth rotation, while the powder-coated aluminium housing offers durability and protection for long-term outdoor operation.

Available in 24V or 48V configuration, the turbine must be paired with a compatible wind charge controller matched to the selected voltage and battery system.





Technical Datasheet

IstaBreeze i-1000W 24V/48V Wind Turbine

High-performance wind turbine designed for 24V and 48V battery-based wind energy systems.

Maximum Power 1200 W
Rated Power 1000 W
Rotor Diameter 220 cm
Start Wind Speed 3 m/s

Wind Turbine Specifications

Current
80 A at 24 V / 40 A at 48 V
Alternator Body
Aluminium
Body Material
Aluminium casting
Maximum Power
1200 W
Rated Power
1000 W
Voltage
24 V AC / 48 V AC
Package Dimensions
Package 1: 60 × 40 × 30 cm / 20.5 kg
Package 2: 110 × 19 × 12 cm / 3.5 kg
Total weight: 24 kg

Wind Speed Data

Initial Wind Speed
3 m/s
Maximum Wind Speed
14–15 m/s

Blade Specifications

Blade Material

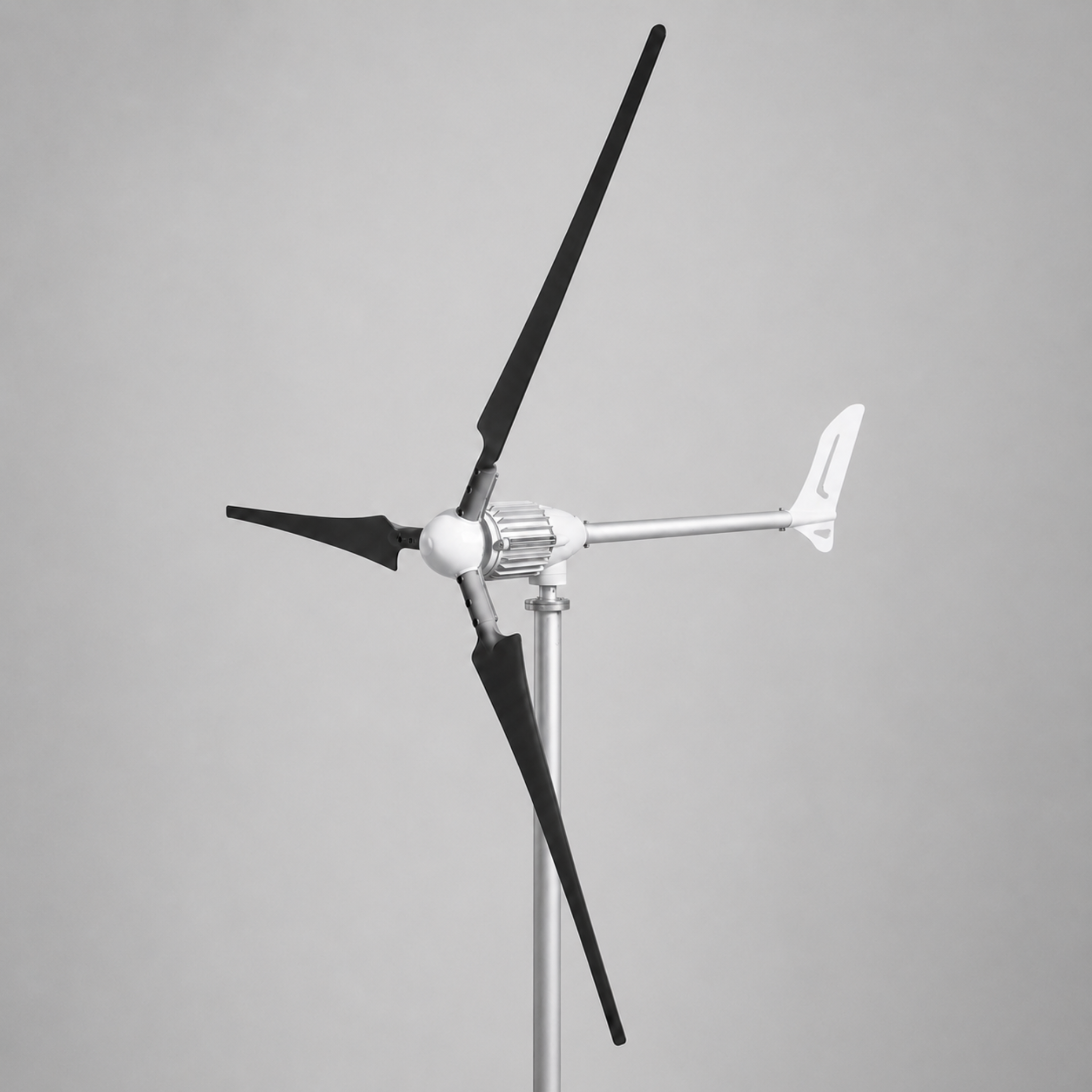

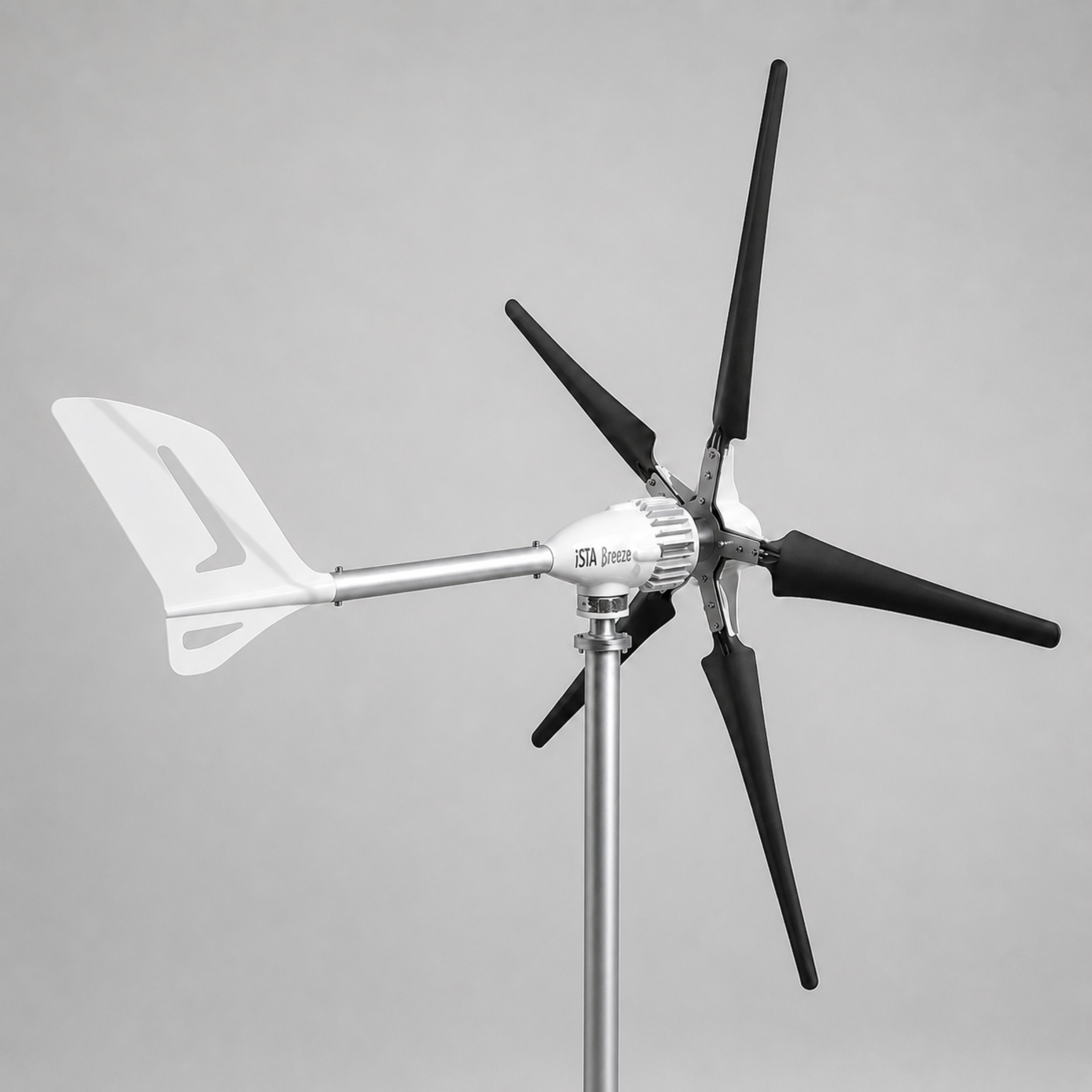

Composite or Carbon
Blade Length
107 cm
Rotor Diameter
220 cm
Noise Level
40 dB (Carbon) / 50 dB (Composite)
Blade Weight
650 g (Composite) / 770 g (Carbon)
Blade Width
14.3 cm

Required Equipment

Battery Group
Suitable battery group: min. 3600 W – max. 7200 W
For safe and efficient operation, this wind turbine should be used with a compatible charge controller and a suitable battery system.
