On-Grid Inverter for Wind Turbine and Solar Applications
On-Grid Inverter for Wind & Solar Power Systems
Intelligent Energy Conversion for Modern Renewable Systems
The On-Grid Inverter is designed to convert renewable energy into grid-compatible AC power with high efficiency, stable performance and integrated system protection. Suitable for selected wind and solar configurations, this inverter supports reliable energy conversion while maintaining power quality, system safety and operational efficiency.
With advanced MPPT technology, grid synchronisation and built-in monitoring functions, the inverter helps optimise energy production and supports smooth integration into modern renewable energy systems.
Designed for Stable Grid Feed-In

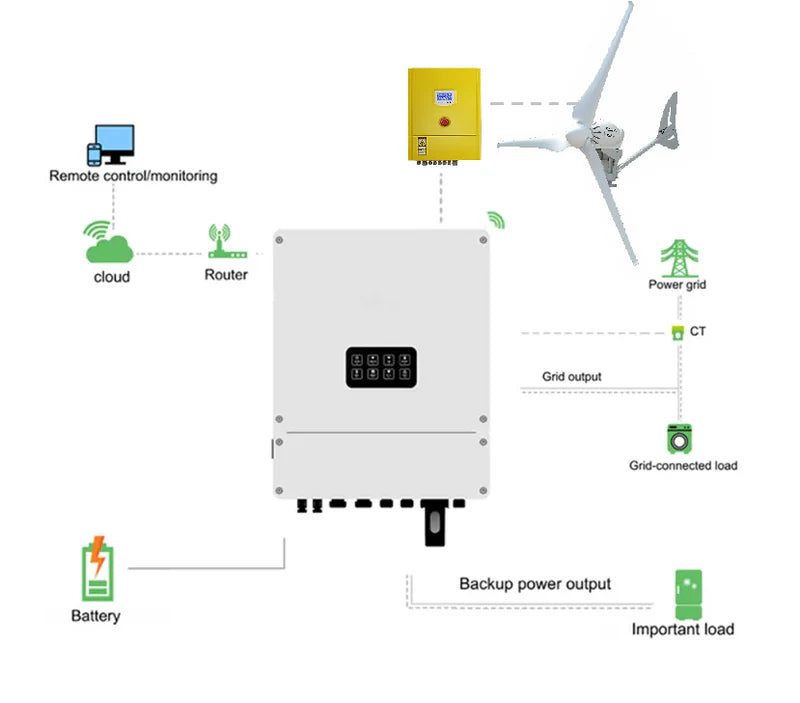

The inverter synchronises its output with the public grid by matching voltage, frequency and phase. This allows generated energy to be converted into clean AC power and supplied safely to the grid when the system is correctly installed and configured.
Integrated anti-islanding protection ensures that feed-in is interrupted automatically if the mains grid is unavailable, helping protect both the system and the electrical network.

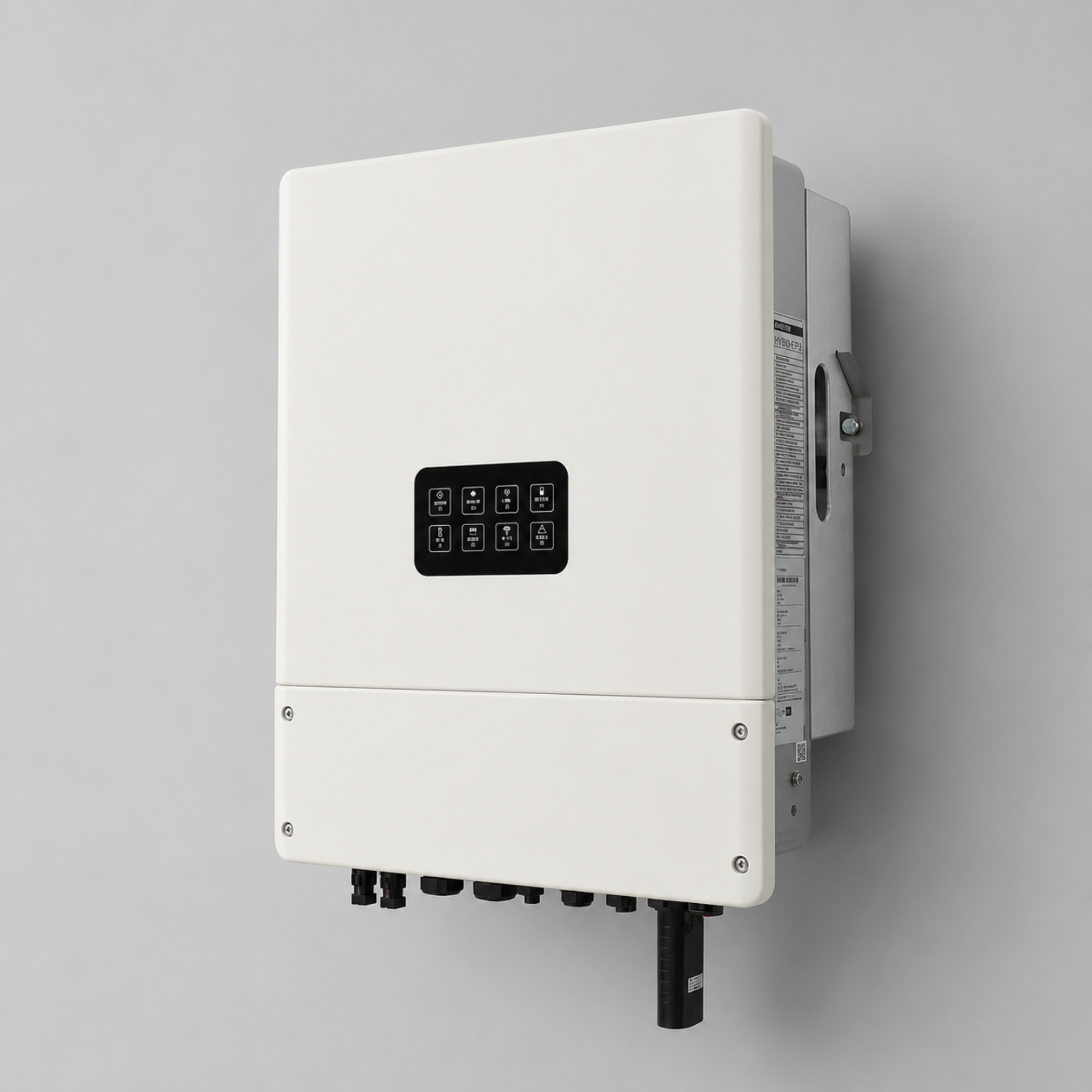

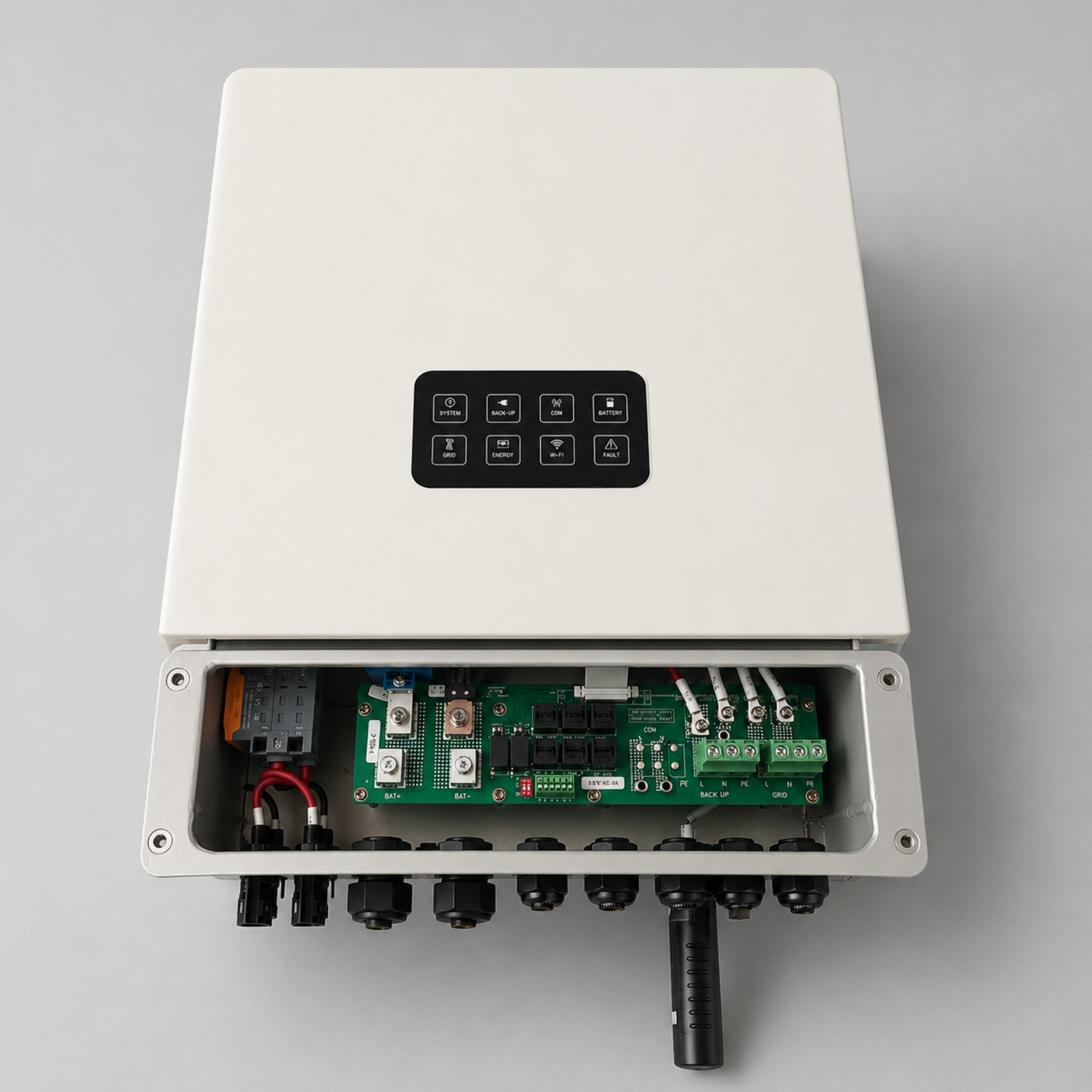

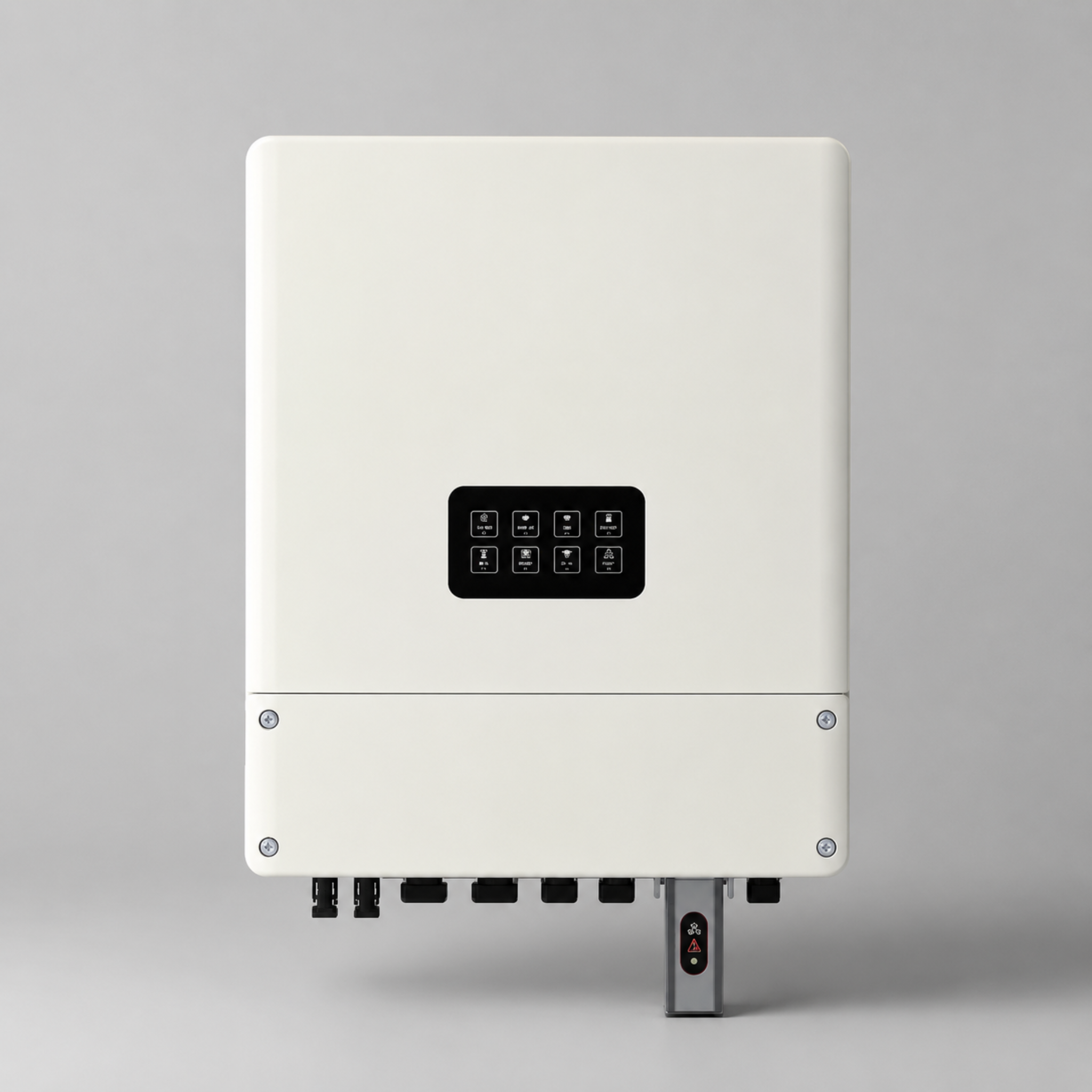

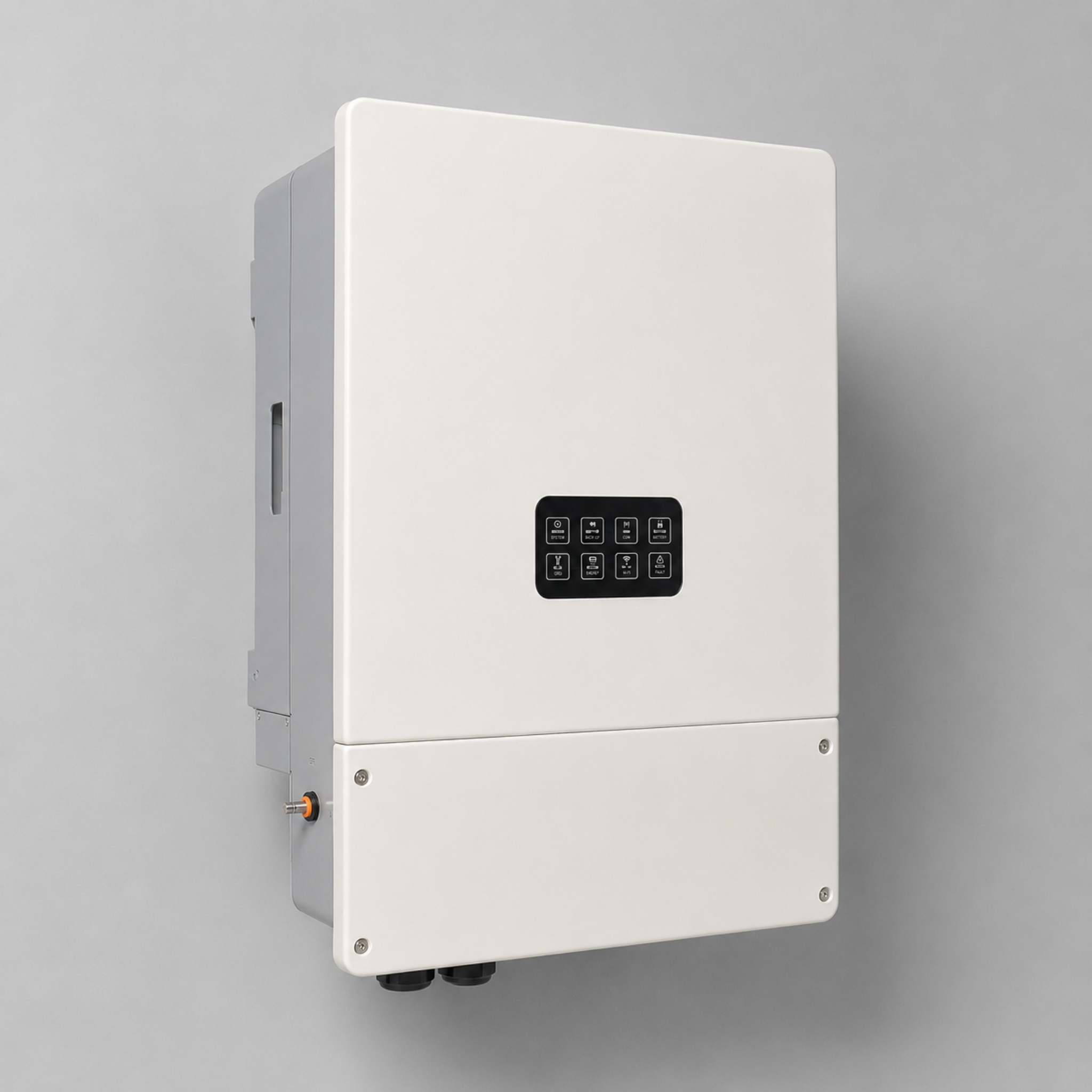

DMEP-3KS48P / DMEP-5KS48P 48V Hybrid Inverter
48V hybrid inverter models with lithium or lead-acid battery support, PV input, on-grid AC output and off-grid AC output parameters.
| Technical Specifications | DMEP-3KS48P | DMEP-5KS48P |
|---|---|---|
| Battery Input Parameters | ||
| Battery Type | Lithium or lead-acid battery | |
| Rated Battery Voltage | 48 V | |
| Maximum Charging Voltage | ≤ 60 V, configurable | |
| Maximum Charge / Discharge Current | 120 A | |
| PV Input Parameters | ||
| Maximum DC Input Power | 3.9 kW | 6.5 kW |
| Maximum DC Input Voltage | 500 V | |
| MPPT Operating Voltage Range | 100–500 V | |
| Starting Voltage | 125 V | |
| Maximum Input Current | 18 A | 18 / 18 A |
| MPPT Number | 1 | 2 |
| AC Output Parameters — On-Grid | ||
| Maximum Output Apparent Power | 3300 W | 5000 W |
| Rated Output Voltage | 230 V | |
| Rated Output Frequency | 50 / 60 Hz | |
| Maximum Output Current | 15 A | 25 A |
| Output Power Factor | ~1, -0.8 leading to +0.8 lagging | |
| AC Output Parameters — Off-Grid | ||
| Rated Output Apparent Power | 3000 VA | 5000 VA |
| Maximum Output Apparent Power | 6000 VA / 15 sec | 10000 VA / 15 sec |
| Rated Output Voltage | 230 V ±2% | |
| Rated Output Frequency | 50 / 60 Hz ±0.2% | |
| Maximum Output Current | 15 A | 25 A |
